Heavenly Linear High Bay With Motion Sensor

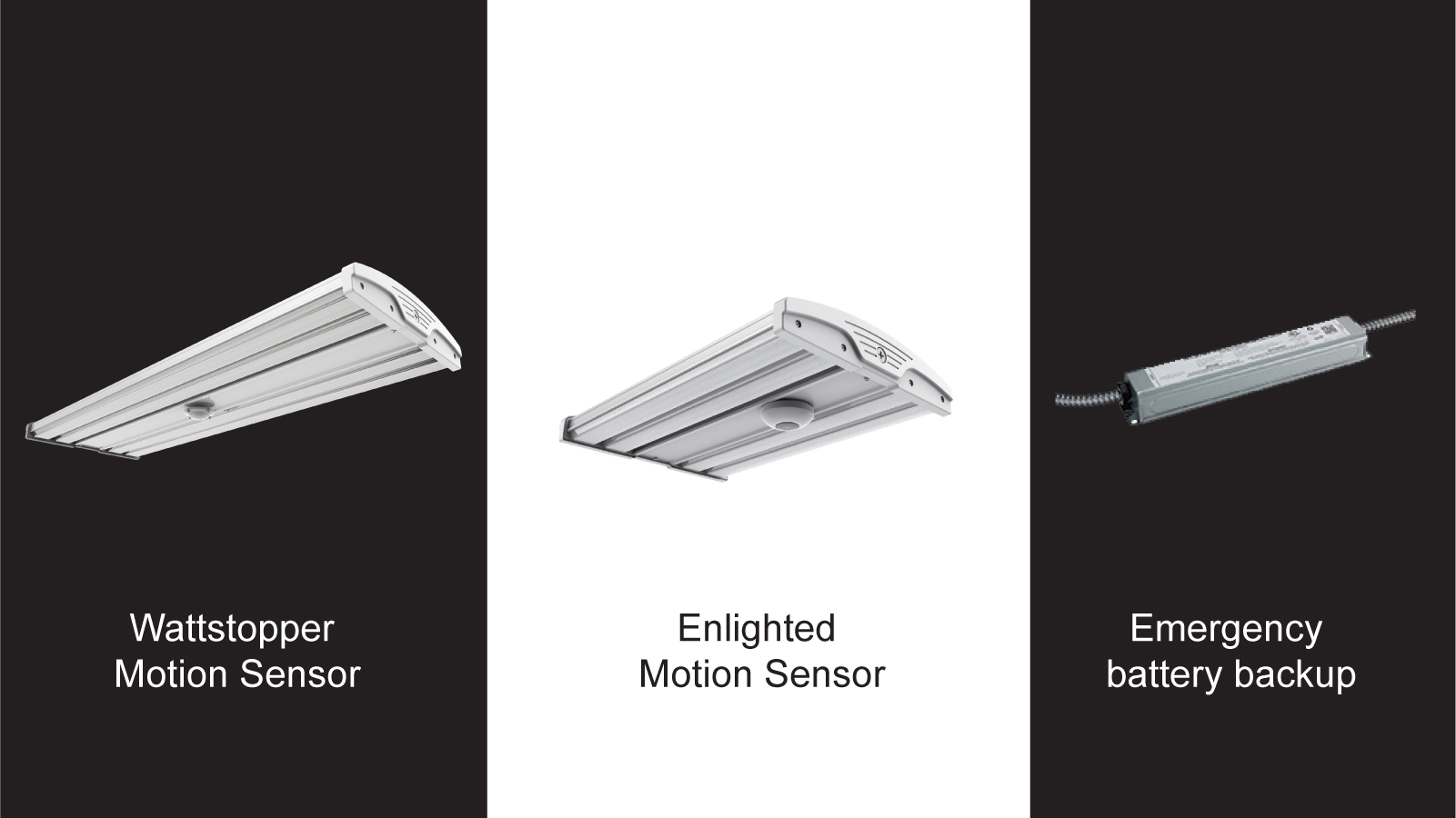

The HEAVENLY Linear High Bay is an attractive, durable and high efficient solution for a variety of industrial and commercial applications. The extruded aluminum construction enables optimal thermal control and longer system life in complex environments such as 65 ̊C ambient temperature. Motion sensor wireless control unit, emergency battery backup are available. Modular design, multiple lens configurations and numerous mounting options allow for precise light positioning putting the light exactly where you need it.

Document Library

Spec Sheet Heavenly Linear High Bay Spec Sheet
Instruction Manual Heavenly Linear High Bay Manual
IES Files Heavenly Linear High Bay IES Files
MS-L7W MS-L7W Spec Sheet
MSO MSO Spec Sheet
Tech Info Heavenly Linear High Bay With Motion Sensor Tech Info
Video Heavenly Linear High Bay Video
Revit file Heavenly Linear High Bay Revit file

Heavenly Linear High Bay Video

Watch Now!


Technical Information

Model number Voltage(V)Wattage (W)Replaces/Equiv.Dimming/ControlLumens(lm)CCT(K)CRIDistributionDimension(L"-W"-H")Finish/ColorIP RatingMaterialComplianceAverage life based on 104F(HRS)Order number
HLHB02-65501-MS-L7W-G 120-277 65 2-lamp T5HO Motion Sensor with White L7 Lens 11400 5000 ＞80 General 24”-16.25"-3.15" White+Silver 20 aluminum ETL 50000 13943
HLHB02-65401-MS-L7W-G 120-277 65 2-lamp T5HO Motion Sensor with White L7 Lens 11400 4000 ＞80 General 24”-16.25"-3.15" White+Silver 20 aluminum ETL 50000 13944
HLHB02-95501-MS-L7W-G 120-277 100 4-lamp T8, 250W HID Motion Sensor with White L7 Lens 17500 5000 ＞80 General 24”-16.25"-3.15" White+Silver 20 aluminum ETL 50000 13945
HLHB02-95401-MS-L7W-G 120-277 100 4-lamp T8, 250W HID Motion Sensor with White L7 Lens 17500 4000 ＞80 General 24”-16.25"-3.15" White+Silver 20 aluminum ETL 50000 13946
HLHB02-135501-MS-L7W-G 120-277 135 4-lamp T5HO, 6-lamp T8, 320W HID Motion Sensor with White L7 Lens 23600 5000 ＞80 General 24”-16.25"-3.15" White+Silver 20 aluminum ETL 50000 13947
HLHB02-135401-MS-L7W-G 120-277 135 4-lamp T5HO, 6-lamp T8, 320W HID Motion Sensor with White L7 Lens 23600 4000 ＞80 General 24”-16.25"-3.15" White+Silver 20 aluminum ETL 50000 13948
HLHB02-175501-MS-L7W-G 120-277 175 6-lamp T5HO, 8-lamp T8, 400W HID Motion Sensor with White L7 Lens 31500 5000 ＞80 General 24”-16.25"-3.15" White+Silver 20 aluminum ETL 50000 13949
HLHB02-175401-MS-L7W-G 120-277 175 6-lamp T5HO, 8-lamp T8, 400W HID Motion Sensor with White L7 Lens 31500 4000 ＞80 General 24”-16.25"-3.15" White+Silver 20 aluminum ETL 50000 13950
HLHB02-220501-MS-L7W-G 120-277 210 6-lamp T5HO, 8-lamp T8, 400W HID Motion Sensor with White L7 Lens 37800 5000 ＞80 General 24”-16.25"-3.15" White+Silver 20 aluminum ETL 50000 13951
HLHB02-220401-MS-L7W-G 120-277 210 6-lamp T5HO, 8-lamp T8, 400W HID Motion Sensor with White L7 Lens 37800 4000 ＞80 General 24”-16.25"-3.15" White+Silver 20 aluminum ETL 50000 13952
HLHB04-220501-MS-L7W-G 120-277 210 6-lamp T5HO, 8-lamp T8, 400W HID Motion Sensor with White L7 Lens 37800 5000 ＞80 General 45.5”-16.25"-3.15" White+Silver 20 aluminum ETL 50000 13959
HLHB04-220401-MS-L7W-G 120-277 210 6-lamp T5HO, 8-lamp T8, 400W HID Motion Sensor with White L7 Lens 37800 4000 ＞80 General 45.5”-16.25"-3.15" White+Silver 20 aluminum ETL 50000 13960
HLHB04-270501-MS-L7W-G 120-277 270 8-lamp T5HO, 750W HID Motion Sensor with White L7 Lens 47300 5000 ＞80 General 45.5”-16.25"-3.15" White+Silver 20 aluminum ETL 50000 13961
HLHB04-270401-MS-L7W-G 120-277 270 8-lamp T5HO, 750W HID Motion Sensor with White L7 Lens 47300 4000 ＞80 General 45.5”-16.25"-3.15" White+Silver 20 aluminum ETL 50000 13962
HLHB04-350501-MS-L7W-G 120-277 350 10-lamp T5HO, 750W HID Motion Sensor with White L7 Lens 63000 5000 ＞80 General 45.5”-16.25"-3.15" White+Silver 20 aluminum ETL 50000 13963
HLHB04-350401-MS-L7W-G 120-277 350 10-lamp T5HO, 750W HID Motion Sensor with White L7 Lens 63000 4000 ＞80 General 45.5”-16.25"-3.15" White+Silver 20 aluminum ETL 50000 13964
HLHB04-420501-MS-L7W-G 120-277 420 1000W MH Motion Sensor with White L7 Lens 75600 5000 ＞80 General 45.5”-16.25"-3.15" White+Silver 20 aluminum ETL 50000 14521
HLHB04-420401-MS-L7W-G 120-277 420 1000W MH Motion Sensor with White L7 Lens 75601 4000 ＞80 General 45.5”-16.25"-3.15" White+Silver 20 aluminum ETL 50000 14522
