PRODUCT Outdoor LED Area Light

LED Area Light

MT Area Light With 480V Photocell

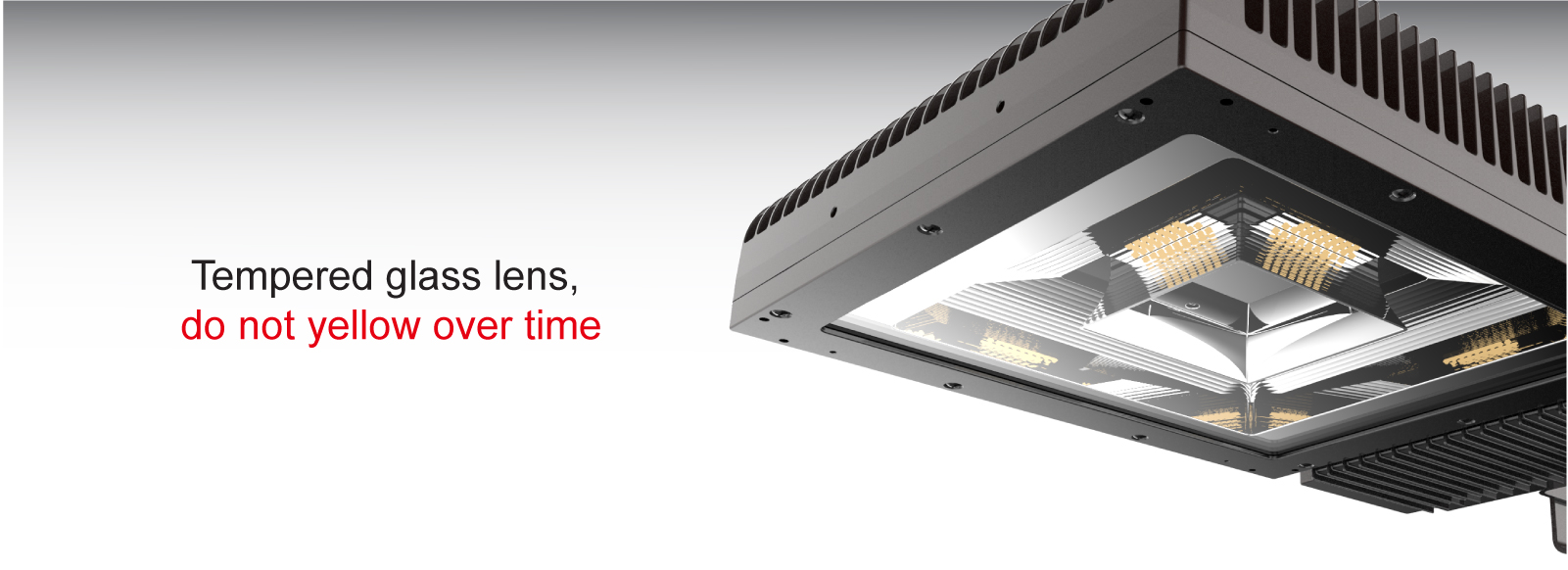

The MT LED area light is a universal and scalable outdoor LED luminaire. The MT LED area light can be customized for virtually any type of outdoor lighting application by applying one of several different mounting options to a universal body to create an Area, Flood or Wall Pack luminaire. Four installation methods including Trunnion/Yoke, Slip fitter and Pole mount. The MT LED area light can be customized for standard on off wall switching, on/off motion sensor switching or multi-level motion sensor switching. The MT LED area light also comes standard with 1-10V dimming.

Document Library

MT FL221216-10.jpg
MT FL221216-04.jpg

Technical Information

Model number Voltage(V)Wattage(W)Replaces/Equiv.(MH)Dimming / ControlLumens(lm)CCT(K)CRIDistributionDimension(L"-W"-H")Finish/ColorIP RatingMaterialComplianceAverage life based on 104F(HRS)Order number
MT100403-PC-III 480V 91 400W 480V Photo control 13200 4000 >70 type III 24-13-4.75 Traditional Bronze IP66 aluminum DLC 70000 15016
MT100403-PC-IV 480V 91 400W 480V Photo control 13200 4000 >70 type IV 24-13-4.75 Traditional Bronze IP66 aluminum DLC 70000 15017
MT100403-PC-VW 480V 91 400W 480V Photo control 13200 4000 >70 type v wide 24-13-4.75 Traditional Bronze IP66 aluminum DLC 70000 15018
MT100403-PC-VN 480V 91 400W 480V Photo control 13200 4000 >70 type v narrow 24-13-4.75 Traditional Bronze IP66 aluminum DLC 70000 15019
MT100403-PC-VM 480V 91 400W 480V Photo control 13200 4000 >70 type v medium 24-13-4.75 Traditional Bronze IP66 aluminum DLC 70000 15020
MT100503-PC-III 480V 91 400W 480V Photo control 13200 5000 >70 type III 24-13-4.75 Traditional Bronze IP66 aluminum DLC 70000 15021
MT100503-PC-IV 480V 91 400W 480V Photo control 13200 5000 >70 type IV 24-13-4.75 Traditional Bronze IP66 aluminum DLC 70000 15022
MT100503-PC-VW 480V 91 400W 480V Photo control 13200 5000 >70 type v wide 24-13-4.75 Traditional Bronze IP66 aluminum DLC 70000 15023
MT100503-PC-VN 480V 91 400W 480V Photo control 13200 5000 >70 type v narrow 24-13-4.75 Traditional Bronze IP66 aluminum DLC 70000 15024
MT100503-PC-VM 480V 91 400W 480V Photo control 13200 5000 >70 type v medium 24-13-4.75 Traditional Bronze IP66 aluminum DLC 70000 15025
MT150403-PC-III 480V 139 600W 480V Photo control 18900 4000 >70 type III 24-13-4.75 Traditional Bronze IP66 aluminum DLC 70000 15026
MT150403-PC-IV 480V 139 600W 480V Photo control 18900 4000 >70 type IV 24-13-4.75 Traditional Bronze IP66 aluminum DLC 70000 15027
MT150403-PC-VW 480V 139 600W 480V Photo control 18900 4000 >70 type v wide 24-13-4.75 Traditional Bronze IP66 aluminum DLC 70000 15028
MT150403-PC-VN 480V 139 600W 480V Photo control 18900 4000 >70 type v narrow 24-13-4.75 Traditional Bronze IP66 aluminum DLC 70000 15029
MT150403-PC-VM 480V 139 600W 480V Photo control 18900 4000 >70 type v medium 24-13-4.75 Traditional Bronze IP66 aluminum DLC 70000 15030
MT150503-PC-III 480V 139 600W 480V Photo control 18900 5000 >70 type III 24-13-4.75 Traditional Bronze IP66 aluminum DLC 70000 15031
MT150503-PC-IV 480V 139 600W 480V Photo control 18900 5000 >70 type IV 24-13-4.75 Traditional Bronze IP66 aluminum DLC 70000 15032
MT150503-PC-VW 480V 139 600W 480V Photo control 18900 5000 >70 type v wide 24-13-4.75 Traditional Bronze IP66 aluminum DLC 70000 15033
MT150503-PC-VN 480V 139 600W 480V Photo control 18900 5000 >70 type v narrow 24-13-4.75 Traditional Bronze IP66 aluminum DLC 70000 15034
MT150503-PC-VM 480V 139 600W 480V Photo control 18900 5000 >70 type v medium 24-13-4.75 Traditional Bronze IP66 aluminum DLC 70000 15035
MT200403-PC-III 480V 173 800W 480V Photo control 21800 4000 >70 type III 24-13-4.75 Traditional Bronze IP66 aluminum DLC 70000 15036
MT200403-PC-IV 480V 173 800W 480V Photo control 21800 4000 >70 type IV 24-13-4.75 Traditional Bronze IP66 aluminum DLC 70000 15037
MT200403-PC-VW 480V 173 800W 480V Photo control 21800 4000 >70 type v wide 24-13-4.75 Traditional Bronze IP66 aluminum DLC 70000 15038
MT200403-PC-VN 480V 173 800W 480V Photo control 21800 4000 >70 type v narrow 24-13-4.75 Traditional Bronze IP66 aluminum DLC 70000 15039
MT200403-PC-VM 480V 173 800W 480V Photo control 21800 4000 >70 type v medium 24-13-4.75 Traditional Bronze IP66 aluminum DLC 70000 15040
MT200503-PC-III 480V 173 800W 480V Photo control 21800 5000 >70 type III 24-13-4.75 Traditional Bronze IP66 aluminum DLC 70000 15041
MT200503-PC-IV 480V 173 800W 480V Photo control 21800 5000 >70 type IV 24-13-4.75 Traditional Bronze IP66 aluminum DLC 70000 15042
MT200503-PC-VW 480V 173 800W 480V Photo control 21800 5000 >70 type v wide 24-13-4.75 Traditional Bronze IP66 aluminum DLC 70000 15043
MT200503-PC-VN 480V 173 800W 480V Photo control 21800 5000 >70 type v narrow 24-13-4.75 Traditional Bronze IP66 aluminum DLC 70000 15044
MT200503-PC-VM 480V 173 800W 480V Photo control 21800 5000 >70 type v medium 24-13-4.75 Traditional Bronze IP66 aluminum DLC 70000 15045
