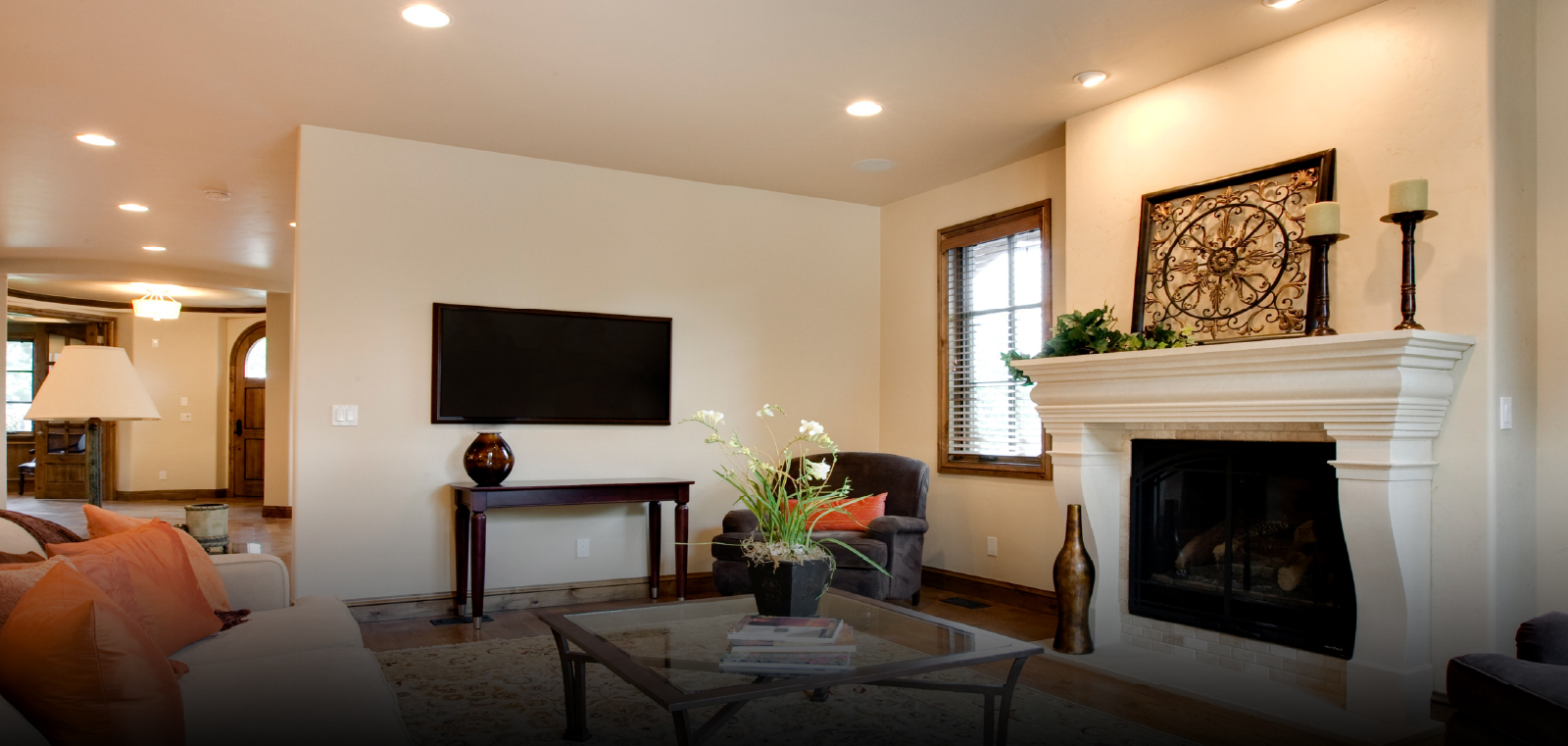

The 4" Porla recessed led downlight comes in round and square shapes with integral driver in a remote driver box. Five CCT selectable. Flexibility to switch color temperature during installation with the slide switch located on the fixture. Reflector optic design. Ideal for a variety of applications for both residential and commercial settings.
| Spec Sheet | 4 in PORLA LED Downlight Spec Sheet |
|---|---|
| IES | 4 in PORLA LED Downlight IES |
| Instruction Manual | 4 in PORLA LED Downlight Manual |
| Tech Info | 4 in PORLA LED Downlight Tech Info |
| Revit file | 4 in PORLA LED Downlight Revit file |
| Model number | Voltage(V) | Wattage (W) | Replaces/Equiv.(FL) | Dimming/Control | Lumens(lm) | CCT(K) | CRI | Distribution | Dimension(L"-W"-H") | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| POR04-DLR-06LM-90-MBK | / | 8 | 50W incandescent | / | 600 | 2700/3000/3500/4000/5000 | 90 | 38 degree | Ø4 1/2"- 3 3/8" | White | Damp Location | Alumilum | ETL | 50000 | 90790** |
| POR04-DLR-06LM-90-MWH | / | 8 | 50W incandescent | / | 600 | 2700/3000/3500/4000/5000 | 90 | 38 degree | Ø4 1/2"- 3 3/8" | White | Damp Location | Alumilum | ETL | 50000 | 90834** |
| POR04-ADJ-R-06LM-90-MBK | / | 8 | 50W incandescent | / | 600 | 2700/3000/3500/4000/5000 | 90 | 38 degree | Ø4 3/8"- 3 3/8" | White | Damp Location | Alumilum | ETL | 50000 | 90815** |
| POR04-ADJ-R-06LM-90-MWH | / | 8 | 50W incandescent | / | 600 | 2700/3000/3500/4000/5000 | 90 | 38 degree | Ø4 3/8"- 3 3/8" | White | Damp Location | Alumilum | ETL | 50000 | 90835** |
| POR04-DLS-06LM-90-MBK | / | 8 | 50W incandescent | / | 600 | 2700/3000/3500/4000/5000 | 90 | 38 degree | Ø4 1/2"- 3 3/8" | White | Damp Location | Alumilum | ETL | 50000 | 90836** |
| POR04-DLS-06LM-90-MWH | / | 8 | 50W incandescent | / | 600 | 2700/3000/3500/4000/5000 | 90 | 38 degree | Ø4 1/2"- 3 3/8" | White | Damp Location | Alumilum | ETL | 50000 | 90837** |
| POR04-08W-4 | 120 | 8 | / | Triac dimming | / | / | / | / | / | / | Damp Location | Alumilum | ETL | 50000 | 90818** |
| POR04-08W-1 | 120-277 | 8 | / | 0-10V dimming | / | / | / | / | / | / | Damp Location | Alumilum | ETL | 50000 | 90821** |
| POR04-DLR-10LM-90-MBK | / | 12 | 75W incandescent | / | 1000 | 2700/3000/3500/4000/5000 | 90 | 38 degree | Ø4 1/2"- 3 3/8" | White | Damp Location | Alumilum | ETL | 50000 | 90791** |
| POR04-DLR-10LM-90-MWH | / | 12 | 75W incandescent | / | 1000 | 2700/3000/3500/4000/5000 | 90 | 38 degree | Ø4 1/2"- 3 3/8" | White | Damp Location | Alumilum | ETL | 50000 | 90838** |
| POR04-ADJ-R-10LM-90-MBK | / | 12 | 75W incandescent | / | 1000 | 2700/3000/3500/4000/5000 | 90 | 38 degree | Ø4 3/8"- 3 3/8" | White | Damp Location | Alumilum | ETL | 50000 | 90792** |
| POR04-ADJ-R-10LM-90-MWH | / | 12 | 75W incandescent | / | 1000 | 2700/3000/3500/4000/5000 | 90 | 38 degree | Ø4 3/8"- 3 3/8" | White | Damp Location | Alumilum | ETL | 50000 | 90839** |
| POR04-DLS-10LM-90-MBK | / | 12 | 75W incandescent | / | 1000 | 2700/3000/3500/4000/5000 | 90 | 38 degree | Ø4 1/2"- 3 3/8" | White | Damp Location | Alumilum | ETL | 50000 | 90840** |
| POR04-DLS-10LM-90-MWH | / | 12 | 75W incandescent | / | 1000 | 2700/3000/3500/4000/5000 | 90 | 38 degree | Ø4 1/2"- 3 3/8" | White | Damp Location | Alumilum | ETL | 50000 | 90841** |
| POR04-12W-4 | 120 | 12 | / | Triac dimming | / | / | / | / | / | / | Damp Location | Alumilum | ETL | 50000 | 90819** |
| POR04-12W-1 | 120-277 | 12 | / | 0-10V dimming | / | / | / | / | / | / | Damp Location | Alumilum | ETL | 50000 | 90794** |
