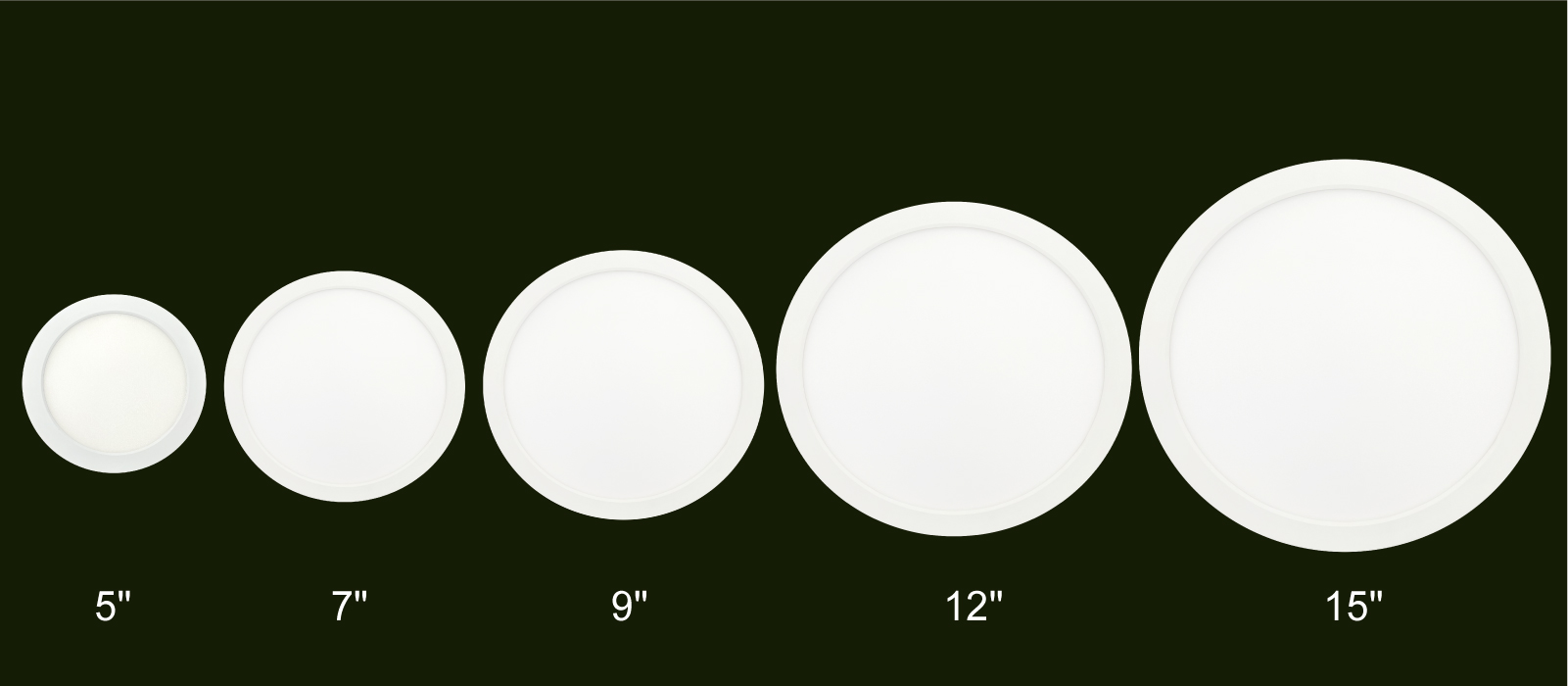

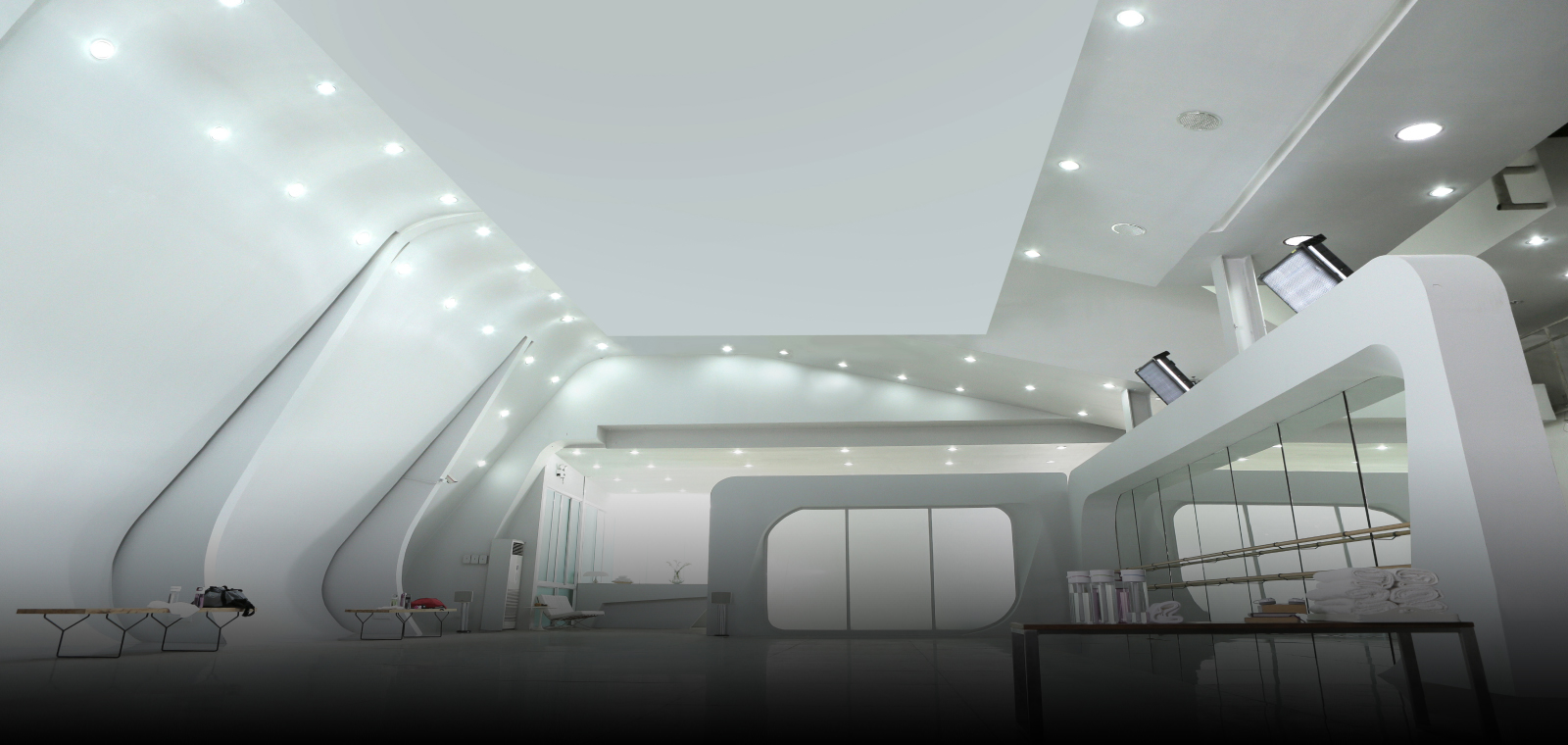

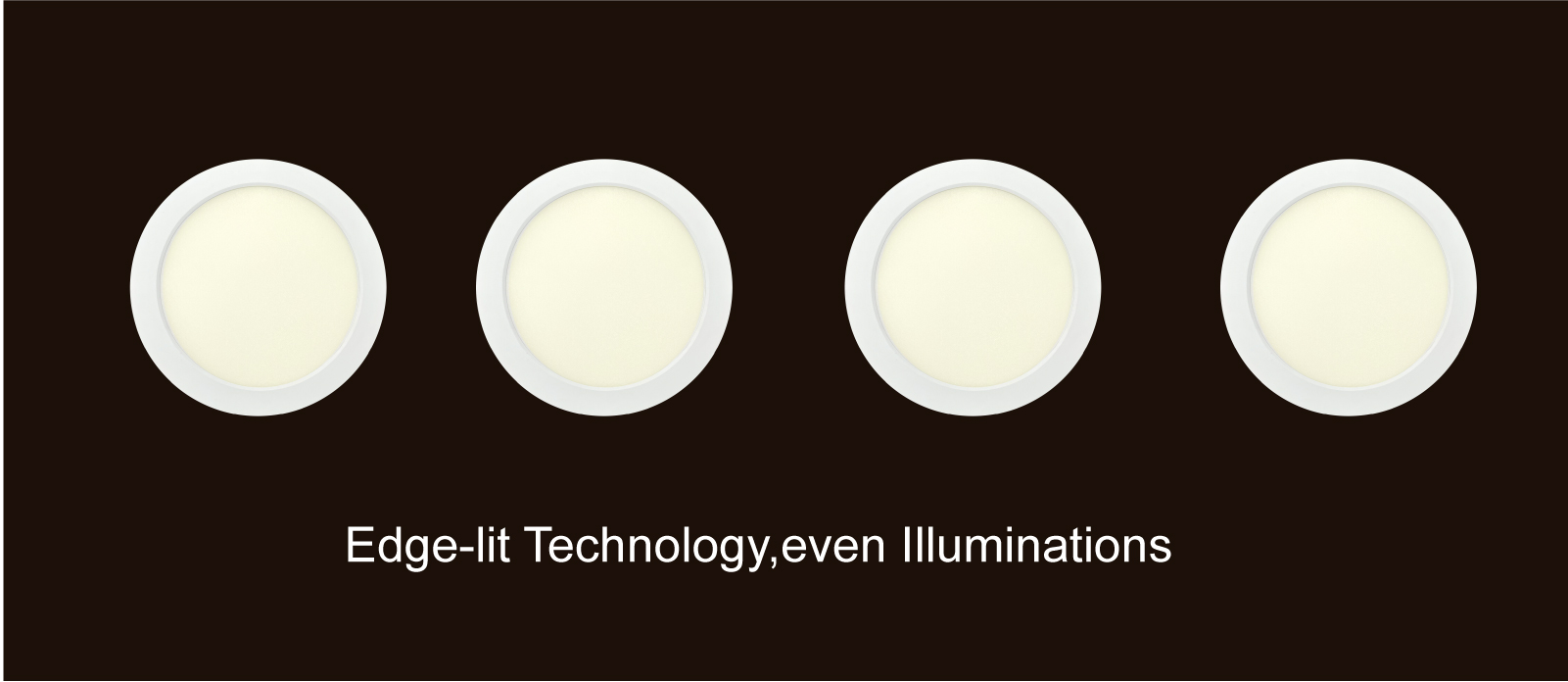

The SleekCake led light is with Edge-lit technology features even illumination and glare free with multiple size from 5 to 15 inches. Low profile appearance design solves the problem of limited plenum space. Ideal for Kitchens, Bathrooms, Hotels, Pools, Restaurants,Showers, Fitness Clubs, Showcases can also be used in a Night Club or on Staircases.
| Spec Sheet | SleekCake LED Light Spec Sheet |
|---|---|
| IES | SleekCake LED Light IES |
| Tech Info | SleekCake LED Light Tech Info |
| Revit file | SleekCake LED Light Revit file |
| Model number | Voltage(V) | Wattage (W) | Replaces/Equiv.(FL) | Dimming/Control | Lumens(lm) | CCT(K) | CRI | Distribution | Dimension(L"-W"-H") | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

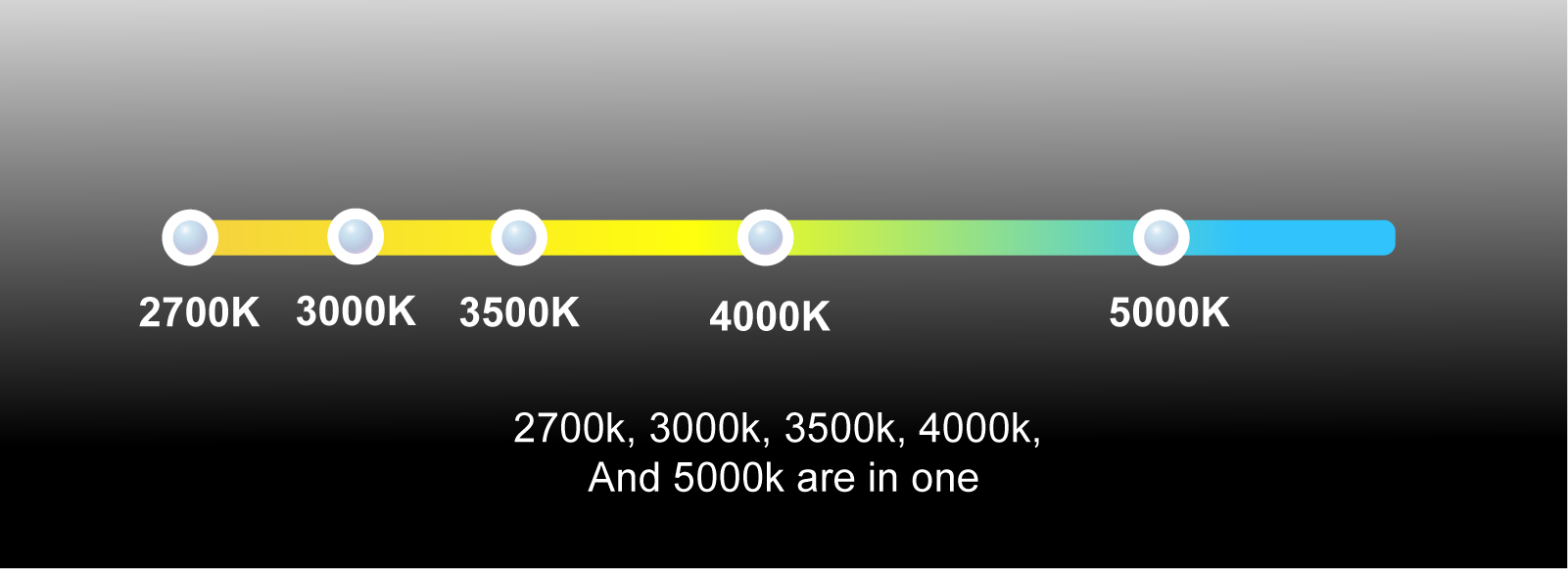

| SKC05R-05LM-SW804-HL | 120 | 7 | / | Triac | 550 | 2700/3000/3500/4000/5000K selectable | 80 | / | Φ6.14"-1.9" | White | 20 | Plastic | UL | 50000 | 16566 |
| SKC05R-06LM-SW804-HL | 120 | 9 | / | Triac | 650 | 2700/3000/3500/4000/5000K selectable | 80 | / | Φ6.14"-1.9" | White | 20 | Plastic | UL | 50000 | 16567 |
| SKC07R-06LM-SW804-HL | 120 | 9 | / | Triac | 650 | 2700/3000/3500/4000/5000K selectable | 80 | / | Φ7.08"-1.9" | White | 20 | Plastic | UL | 50000 | 16568 |
| SKC07R-09LM-SW804-HL | 120 | 12 | / | Triac | 950 | 2700/3000/3500/4000/5000K selectable | 80 | / | Φ7.08"-1.9" | White | 20 | Plastic | UL | 50000 | 16569 |
| SKC07R-11LM-SW804-HL | 120 | 14 | / | Triac | 1100 | 2700/3000/3500/4000/5000K selectable | 80 | / | Φ7.08"-1.9" | White | 20 | Plastic | UL | 50000 | 16570 |
| SKC09R-13LM-SW804-HL | 120 | 17 | / | Triac | 1300 | 2700/3000/3500/4000/5000K selectable | 80 | / | Φ8.86"-1.9" | White | 20 | Plastic | UL | 50000 | 16571 |
| SKC12R-15LM-SW804-HL | 120 | 21 | / | Triac | 1500 | 2700/3000/3500/4000/5000K selectable | 80 | / | Φ11.81"-0.94" | White | 20 | Plastic | UL | 50000 | 16572 |
| SKC15R-17LM-SW804-HL | 120 | 25 | / | Triac | 1700 | 2700/3000/3500/4000/5000K selectable | 80 | / | Φ14.57"-0.94" | White | 20 | Plastic | UL | 50000 | 16573 |
