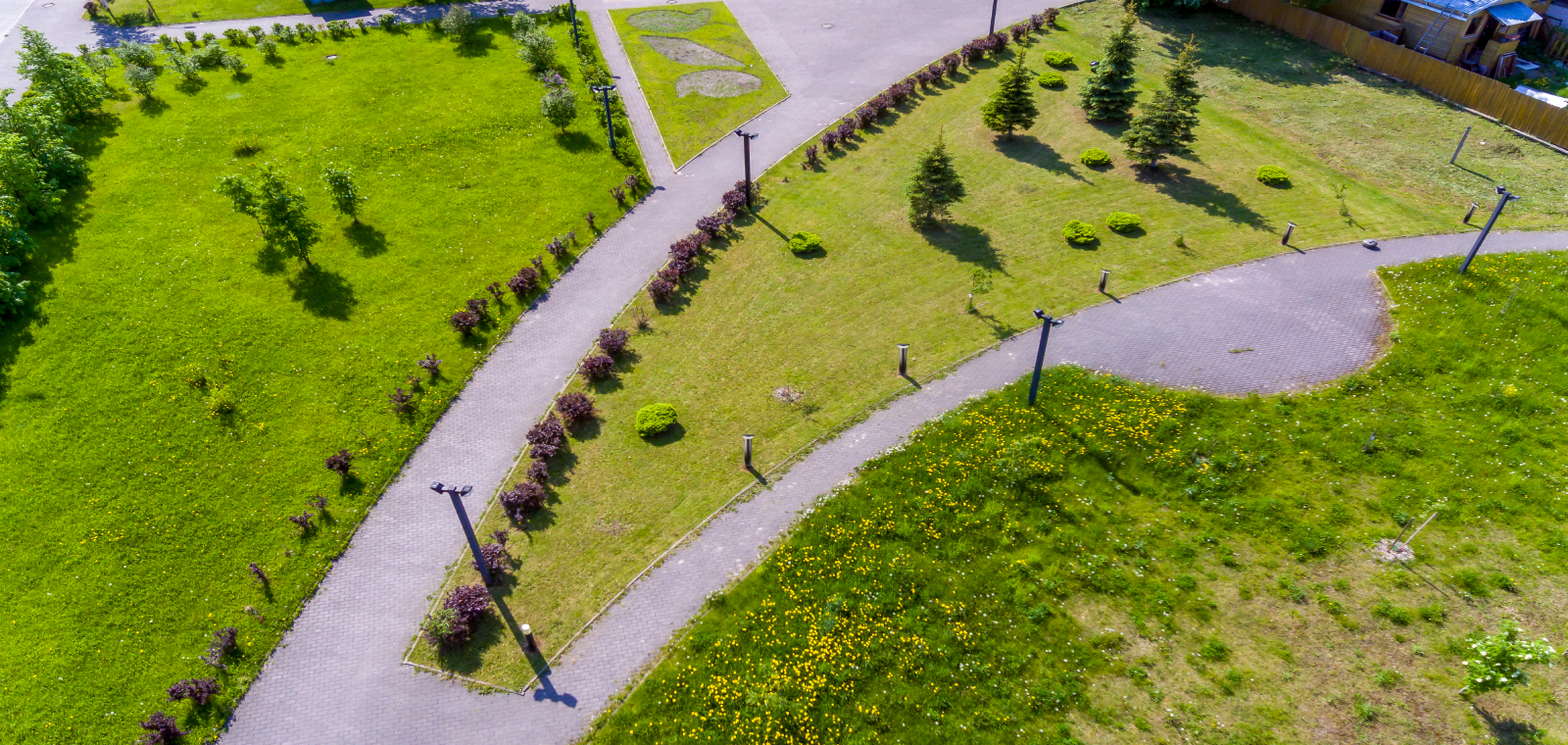

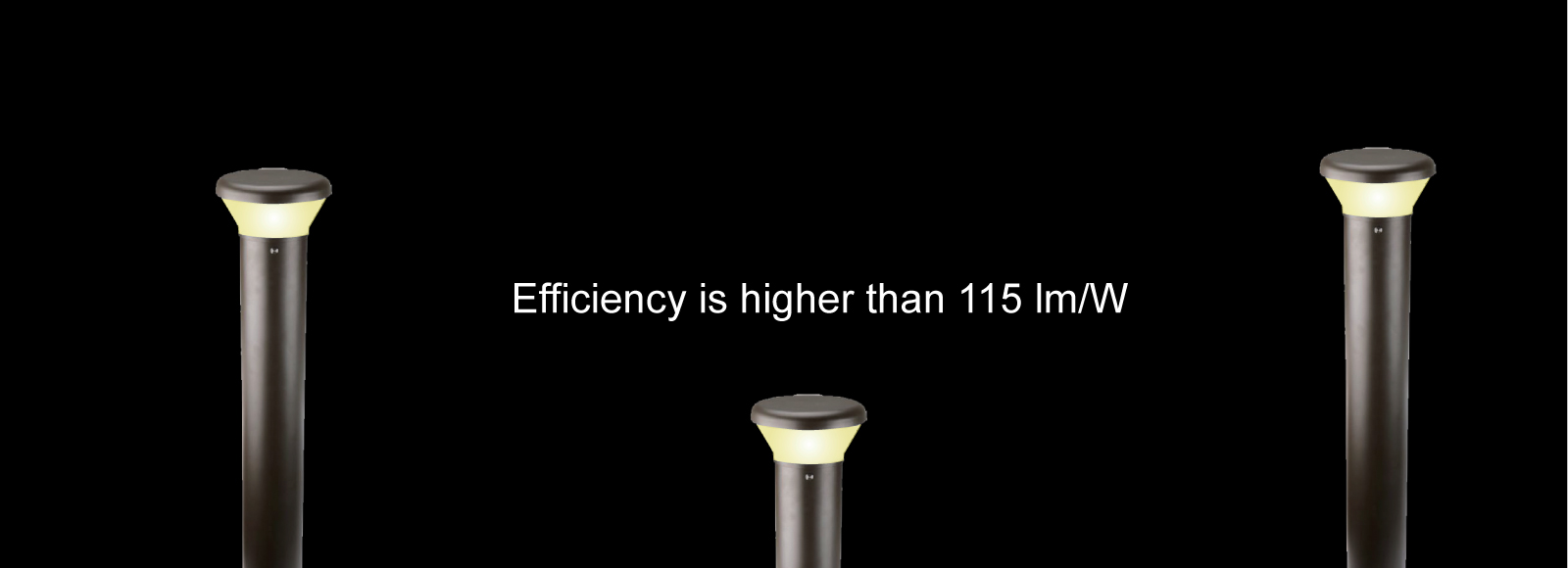

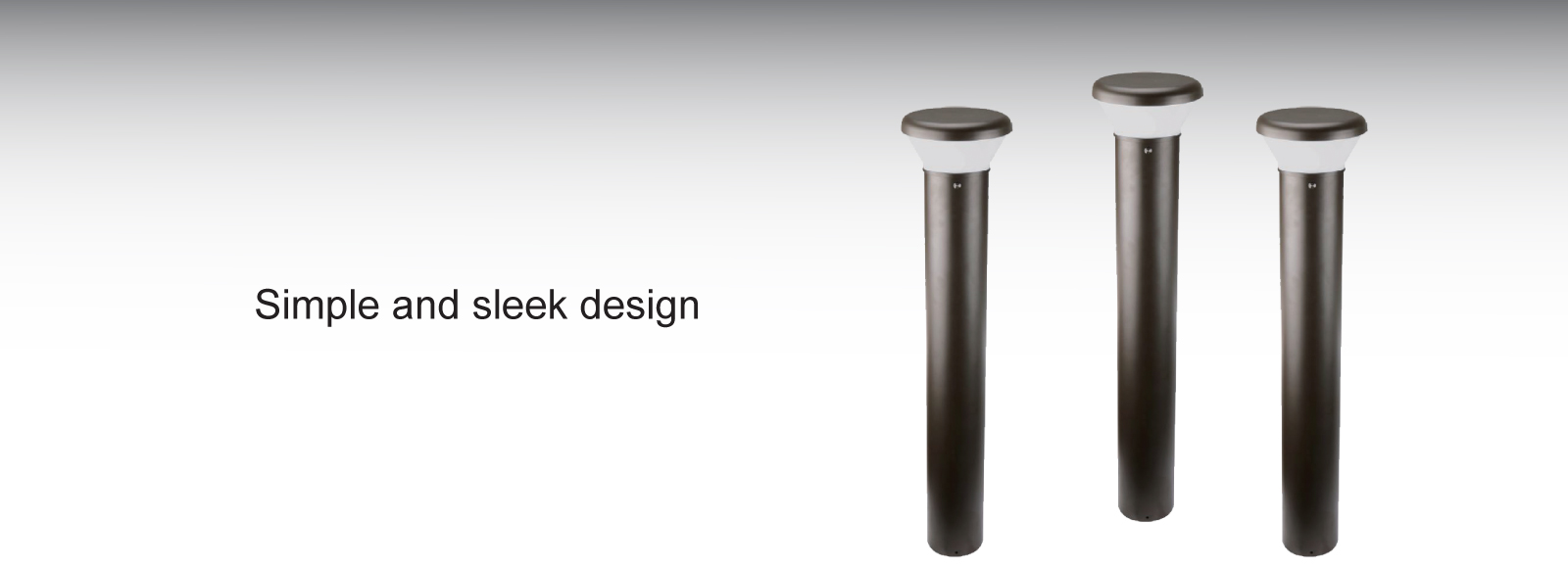

The Cone led bollard has a round appearance for good decorative effect, sized in 3.5ft height. Optical design, greatly improves the light efficiency and uniformity. Efficiency is higher than 115 lm/W. This bollard is an excellent choice for walkways, entrances, promenades, plazas, courtyards, driveways, bridges, and landscaped areas.
| Spec Sheet | Cone LED Bollard Spec Sheet |
|---|---|
| IES | Cone LED Bollard IES |
| Tech Info | Cone LED Bollard Tech Info |
| Brochure | Urban Light Brochure |
| Revit file | Please email info@abovealllighting.com for Revit file |
| Model number | Voltage(V) | Wattage(W) | Replaces/Equiv.(MH) | Controls | Lumens(lm) | CCT(K) | CRI | Distribution | Dimension | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CBD42H-26301-V | 120-277 | 26 | 75W | Available | 3000 | 3000 | 80 | V | Φ9.28"x42" | Bronze | 65 | Aluminum | UL | 50000 | 16735 |
| CBD42H-26401-V | 120-277 | 26 | 75W | Available | 3000 | 4000 | 80 | V | Φ9.28"x42" | Bronze | 65 | Aluminum | UL | 50000 | 16736 |
| CBD42H-26501-V | 120-277 | 26 | 75W | Available | 3000 | 5000 | 80 | V | Φ9.28"x42" | Bronze | 65 | Aluminum | UL | 50000 | 16737 |
