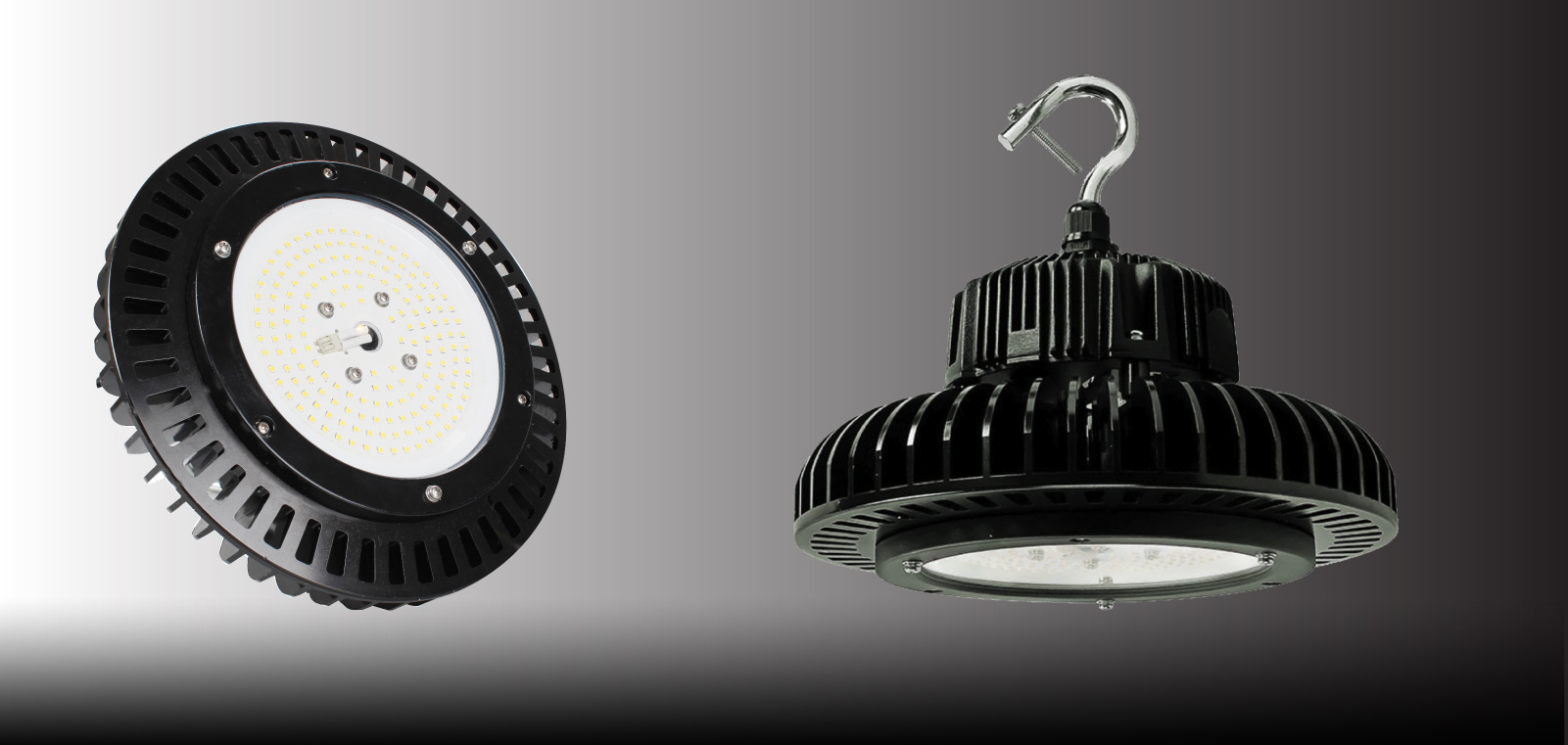

LED UFO High Bay Light is for workshop, warehouse, indoor stadium or other industrial place. It is an ideal replacement for Induction lamp, metal halide or HID lamp, pure aluminum heat sink enables the lumen efficacy higher with excellent thermal management in one-piece structure by cold-forging technology.
| Spec Sheet | UFO High Bay Spec Sheet |
|---|---|
| Instruction Manual | UFO High Bay Manual |
| IES Files | UFO High Bay IES Files |
| Motion Sensor | Micromave Motion Sensor Model No.: MC031V Instructions Manual |
| Accessories | UFO High Bay Bird Guard Instructions Manual |
| How Are We Different | UFO High Bay Bay PPT |
| Tech Info | UFO High Bay Tech Info |
| Dimension Files | UFO High Bay Dimension Files |
| Video | UFO High Bay Video |
| Revit file | Please email info@abovealllighting.com for Revit file |
| Revit file | Please email info@abovealllighting.com for Revit file |
| EBU | EMERGENCY LED DRIVER FOR UFO HIGH BAY |
| Model number | Voltage(V) | Wattage(W) | Replaces/Equiv.(MH) | Dimming / Control | Lumens(lm) | CCT(K) | CRI | Beam Angle(Degree) | Dimension(L“-W”-H“) | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| URHB100LED501 | 120-277 | 100 | 400W | 1-10V | 12500 | 5000 | >80 | 60/70/90/120 | Ф10.23"-7.08" | Traditional Bronze | IP65 | aluminum+glass lens | UL | 50000 | 10850 |
| URHB150LED501 | 120-277 | 150 | 600W | 1-10V | 21900 | 5000 | >80 | 60/70/90/120 | Ф10.23"-7.08" | Traditional Bronze | IP65 | aluminum+glass lens | DLC/UL | 50000 | 10851A |
| URHB200LED501 | 120-277 | 200 | 800W | 1-10V | 25000 | 5000 | >80 | 60/70/90/120 | Ф11.48"-8.19" | Traditional Bronze | IP65 | aluminum+glass lens | UL | 50000 | 10869 |
| URHB240LED501 | 120-277 | 240 | 1000W | 1-10V | 30000 | 5000 | >80 | 60/70/90/120 | Ф11.48"-8.58" | Traditional Bronze | IP65 | aluminum+glass lens | UL | 50000 | 10870 |
