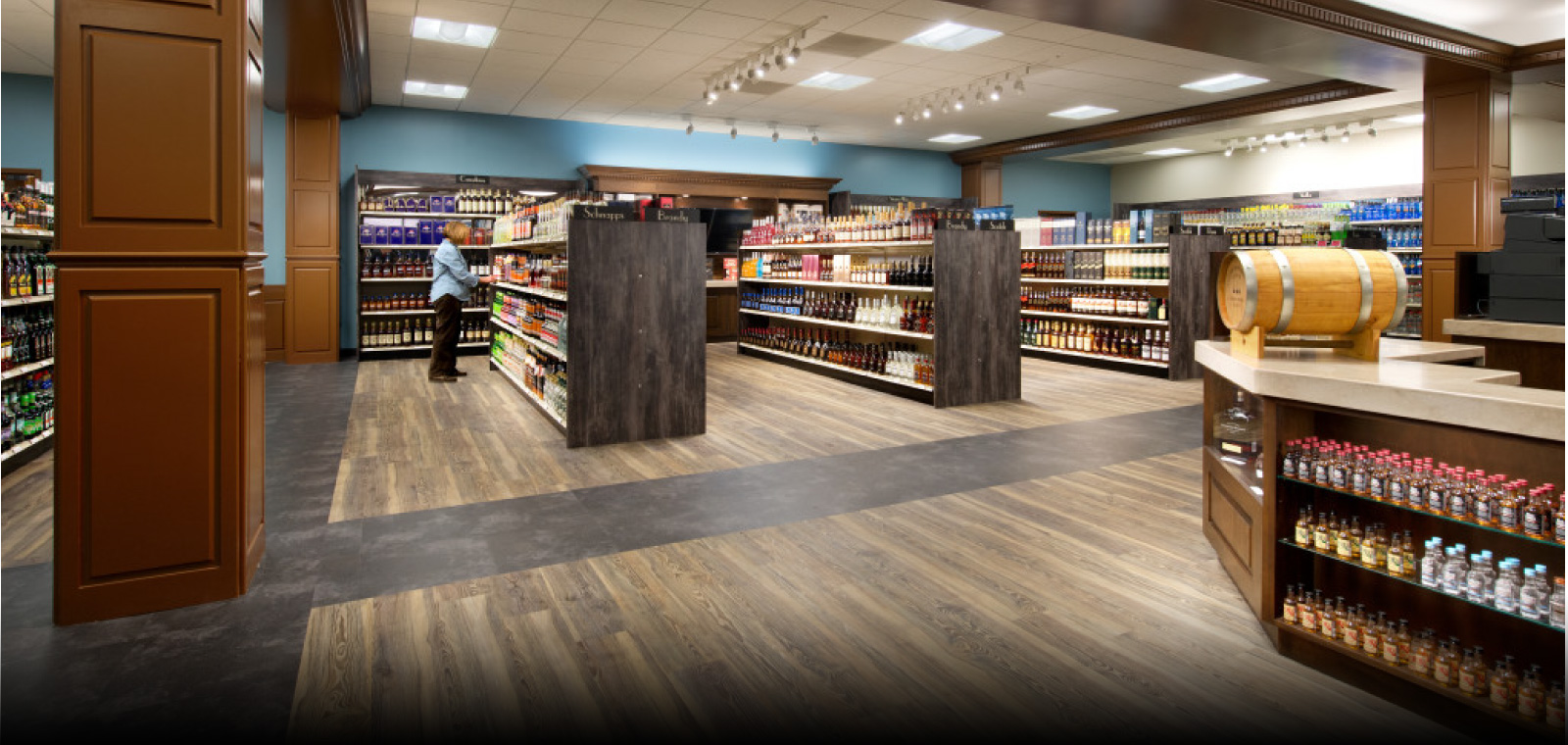

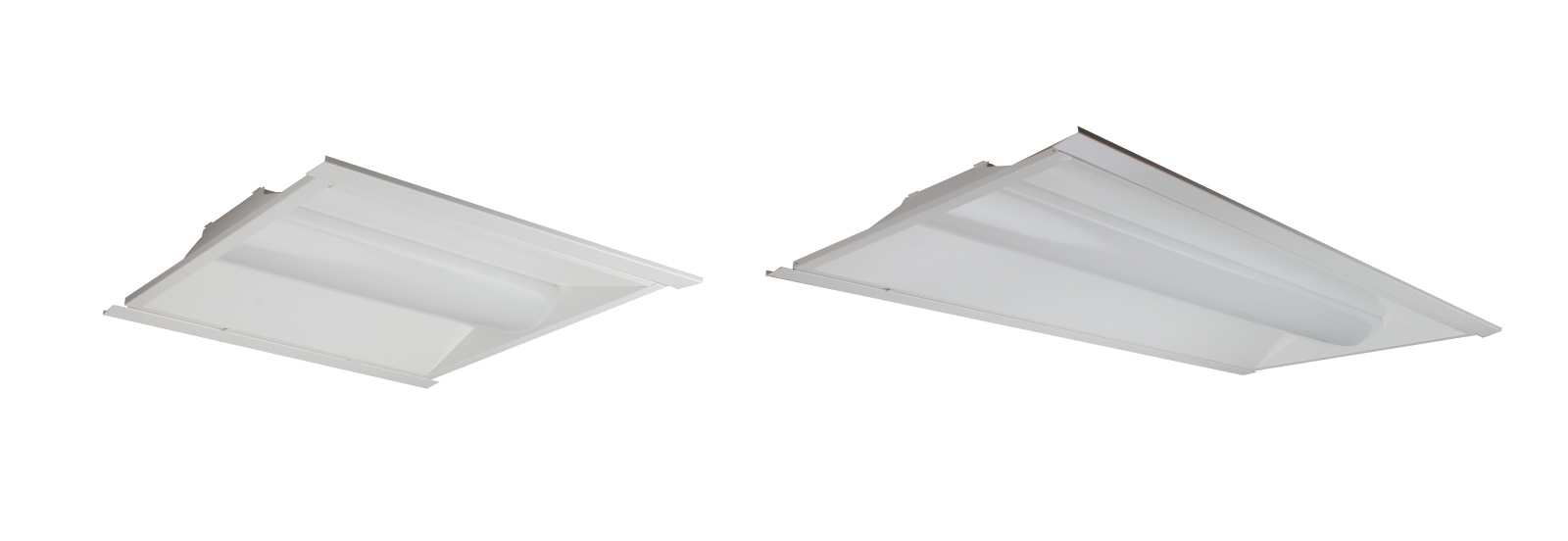

LED troffer retrofit kit DL series is designed without any black spots at the ends of the lens. It is suitable for office, hospital, and retails environments. The fixture is one piece and enclosed steel framed bracket. It is designed to upgrade fluorescent light fixture. Fully integrated reversible hinged. Assembly allows for rapid troffer conversion. Upgrade to modern full distribution architectural aesthetics providing controlled very soft, very well uniform light distribution. Easy installation and don’t need to remove existing fixture housing. Available in both 2x2 and 2x4 configurations.
| Spec Sheet | Door Frame Retrofit Kit Spec Sheet |
|---|---|
| Instruction Manual | Door Frame Retrofit Kit Manual |
| IES Files | Door Frame Retrofit Kit IES Files |
| NLC Controls | Networked Lighting Controls (NLC） |
| Motion Sensor Manual | Microwave Motion Sensor Model No.:AMS-H403VRC Instructions Manual |
| How are we different | Door Frame Retrofit Kit PPT |
| Tech Info | Door Frame Retrofit Kit Tech Info |
| Revit file | Please email info@abovealllighting.com for Revit file |
| Model number | Voltage(V) | Wattage(W) | Replaces/Equiv.(FL) | Dimming / Control | Lumens(lm) | CCT(K) | CRI | Beam Angle(Degree) | Dimension(L“-W”-H“) | Finish/Color | IP Rating | Material | Compliance | Average life based on 77F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TRK22D18LED30-DL | 120-277 | 18 | 2 F17T8 | 1-10V Dim | 2160 | 3000 | >80 | 120 | 22.56-20.59 -2.97 | White | IP20 | PC+SPCC | ETL/DLC | 50000 | 10818 |
| TRK22D18LED35-DL | 120-277 | 18 | 2 F17T8 | 1-10V Dim | 2160 | 3500 | >80 | 120 | 22.56-20.59 -2.97 | White | IP20 | PC+SPCC | ETL/DLC | 50000 | 10820 |
| TRK22D18LED40-DL | 120-277 | 18 | 2 F17T8 | 1-10V Dim | 2160 | 4000 | >80 | 120 | 22.56-20.59 -2.97 | White | IP20 | PC+SPCC | ETL/DLC | 50000 | 10822 |
| TRK22D18LED50-DL | 120-277 | 18 | 2 F17T8 | 1-10V Dim | 2160 | 5000 | >80 | 120 | 22.56-20.59 -2.97 | White | IP20 | PC+SPCC | ETL/DLC | 50000 | 10824 |
| TRK22D25LED30-DL | 120-277 | 25 | 3 F17T8 | 1-10V Dim | 3000 | 3000 | >80 | 120 | 22.56-20.59 -2.97 | White | IP20 | PC+SPCC | ETL/DLC in process | 50000 | 11127 |
| TRK22D25LED40-DL | 120-277 | 25 | 3 F17T8 | 1-10V Dim | 3000 | 4000 | >80 | 120 | 22.56-20.59 -2.97 | White | IP20 | PC+SPCC | ETL/DLC in process | 50000 | 11135 |
| TRK22D25LED50-DL | 120-277 | 25 | 3 F17T8 | 1-10V Dim | 3000 | 5000 | >80 | 120 | 22.56-20.59 -2.97 | White | IP20 | PC+SPCC | ETL/DLC in process | 50000 | 11139 |
| TRK22D25LED35-DL | 120-277 | 25 | 3 F17T8 | 1-10V Dim | 3000 | 3500 | >80 | 120 | 22.56-20.59 -2.97 | White | IP20 | PC+SPCC | ETL/DLC in process | 50000 | 11131 |
| TRK22D32LED30-DL | 120-277 | 32 | 4 F17T8 | 1-10V Dim | 3840 | 3000 | >80 | 120 | 22.56-20.59 -2.97 | White | IP20 | PC+SPCC | ETL/DLC | 50000 | 11128 |
| TRK22D32LED35-DL | 120-277 | 32 | 4 F17T8 | 1-10V Dim | 3840 | 3500 | >80 | 120 | 22.56-20.59 -2.97 | White | IP20 | PC+SPCC | ETL/DLC | 50000 | 11132 |
| TRK22D32LED40-DL | 120-277 | 32 | 4 F17T8 | 1-10V Dim | 3840 | 4000 | >80 | 120 | 22.56-20.59 -2.97 | White | IP20 | PC+SPCC | ETL/DLC | 50000 | 11136 |
| TRK22D32LED50-DL | 120-277 | 32 | 4 F17T8 | 1-10V Dim | 3840 | 5000 | >80 | 120 | 22.56-20.59 -2.97 | White | IP20 | PC+SPCC | ETL/DLC | 50000 | 11140 |
