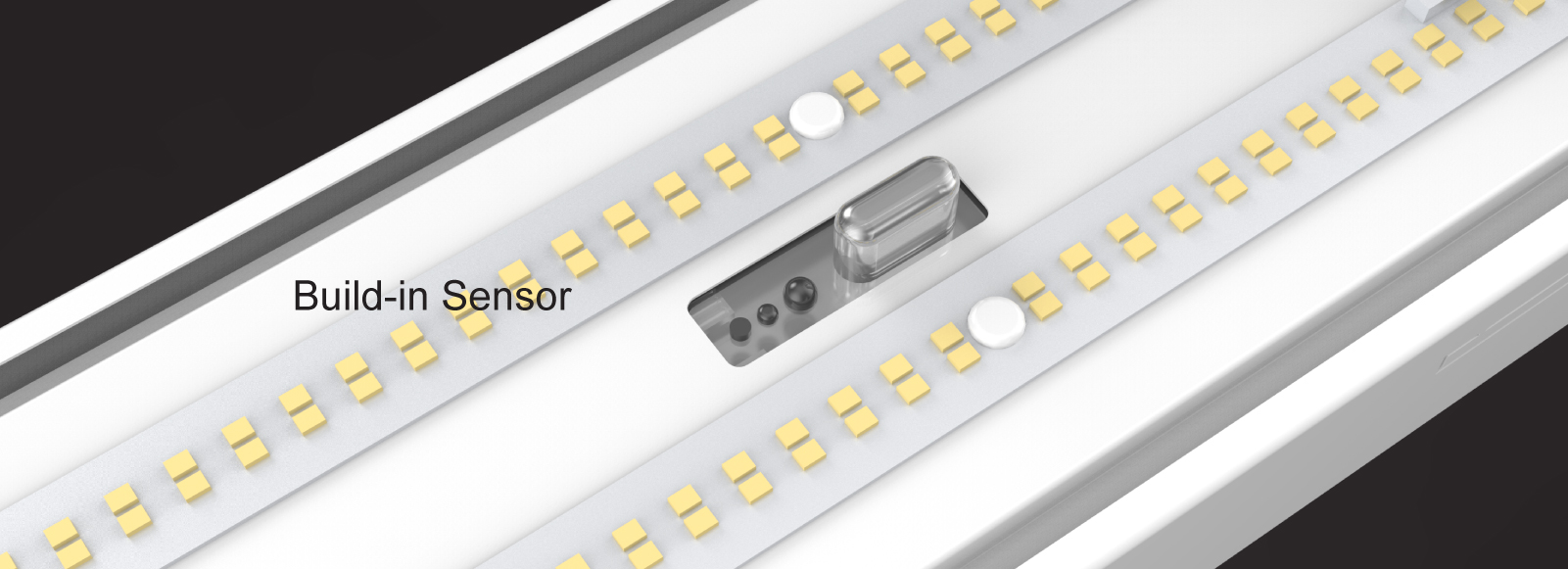

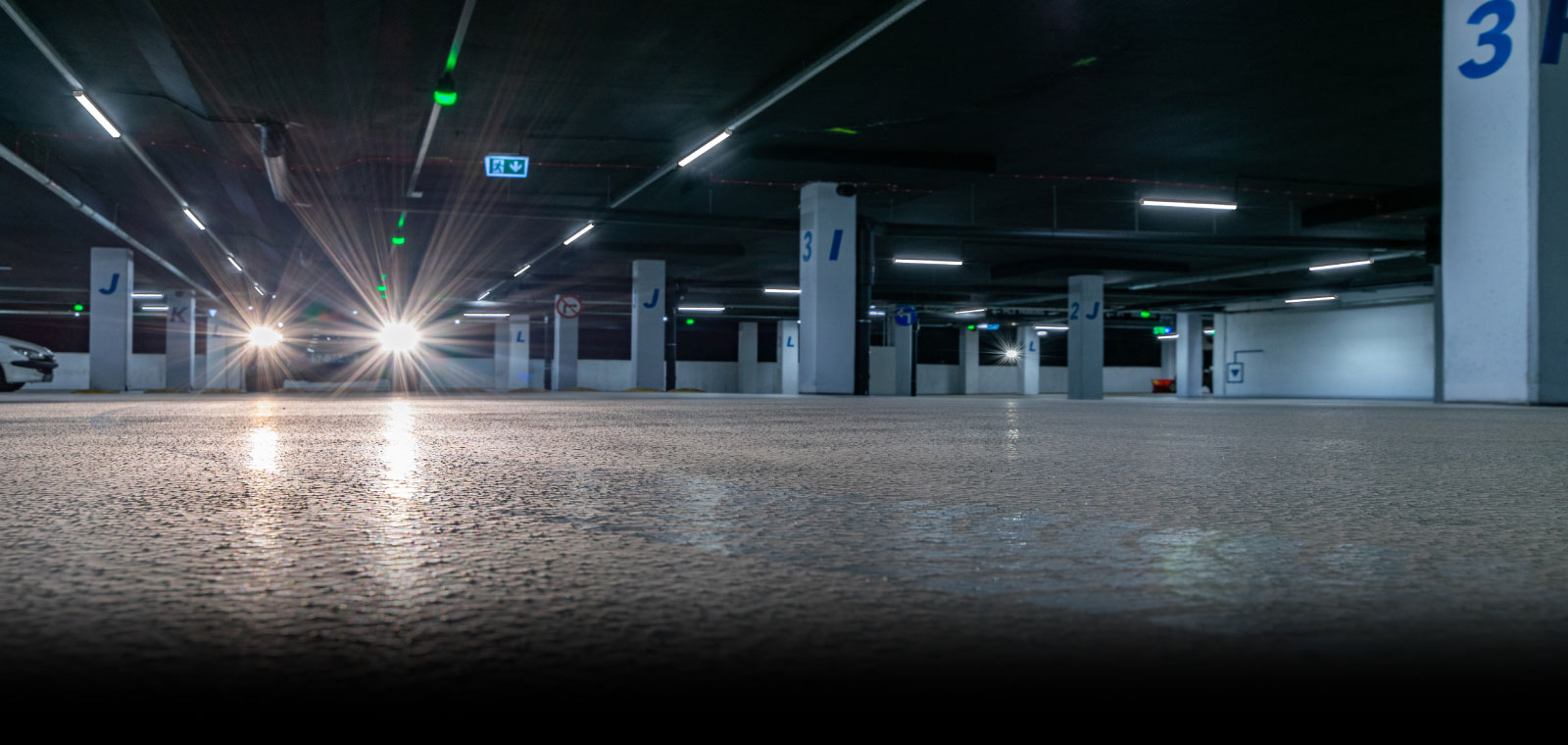

ABOVE ALL lighting’s VISION LED strip light has a sleek design with a diffuser lens. Wide size is ideal to replace the 2-lamp T8. Standard lengths come in 4ft and 8ft. Wide lumen range from 4,000lm to 11,000lm with high efficiency up to 143LPW. CCT and wattage selectable. Built-in sensor is available. Optional accessories include reflector, wire guard, V-hook and quick surface mount kits. It can be widely used in stairwells, warehouses, offices, garages, shop displays , and other commercial applications.
| Spec Sheet | Selectable ECO Vision Strip Light Spec Sheet |
|---|---|
| Instruction Manual | Selectable ECO Vision Strip Light Instruction Manual |
| Motion Sensor | MC087D RC Motion Sensor |
| IES | Selectable ECO Vision Strip Light IES |
| Tech Info | Selectable ECO Vision Strip Light Tech Info |
| Revit file | Please email info@abovealllighting.com for Revit file |
| Model number | Voltage(V) | Wattage (W) | Replaces/Equiv.(FL) | Dimming/Control | Lumens(lm) | CCT(K) | CRI | Distribution | Dimension(L"-W"-H") | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STR12DSP1LEDSW8F-SE | 120-347 | 32W/37W/47W | 2 Lamp - 32W T8 | 0-10V Dim | 6350@46W | 3500K/4000K | ＞80 | General | 48''-4.66''-3.39'' | White | 20 | steel | ETL | 50000 | 15677 |
| STR12DSP1LEDSW8F-MSW-SE | 120-347 | 32W/37W/47W | 2 Lamp - 32W T8 | Sensor | 6350@46W | 3500K/4000K | ＞80 | General | 48''-4.66''-3.39'' | White | 20 | steel | ETL | 50000 | 15679 |
| STR24DSP2LEDSW8F-SE | 120-347 | 55W63W/80W | 4 lamp-32W-T8 | 0-10V Dim | 10800@80W | 3500K/4000K | ＞80 | General | 96''-4.66''-3.39'' | White | 20 | steel | ETL | 50000 | 15678 |
| STR24DSP2LEDSW8F-MSW-SE | 120-347 | 55W63W/80W | 4 lamp-32W-T8 | Sensor | 10800@80W | 3500K/4000K | ＞80 | General | 96''-4.66''-3.39'' | White | 20 | steel | ETL | 50000 | 15680 |
