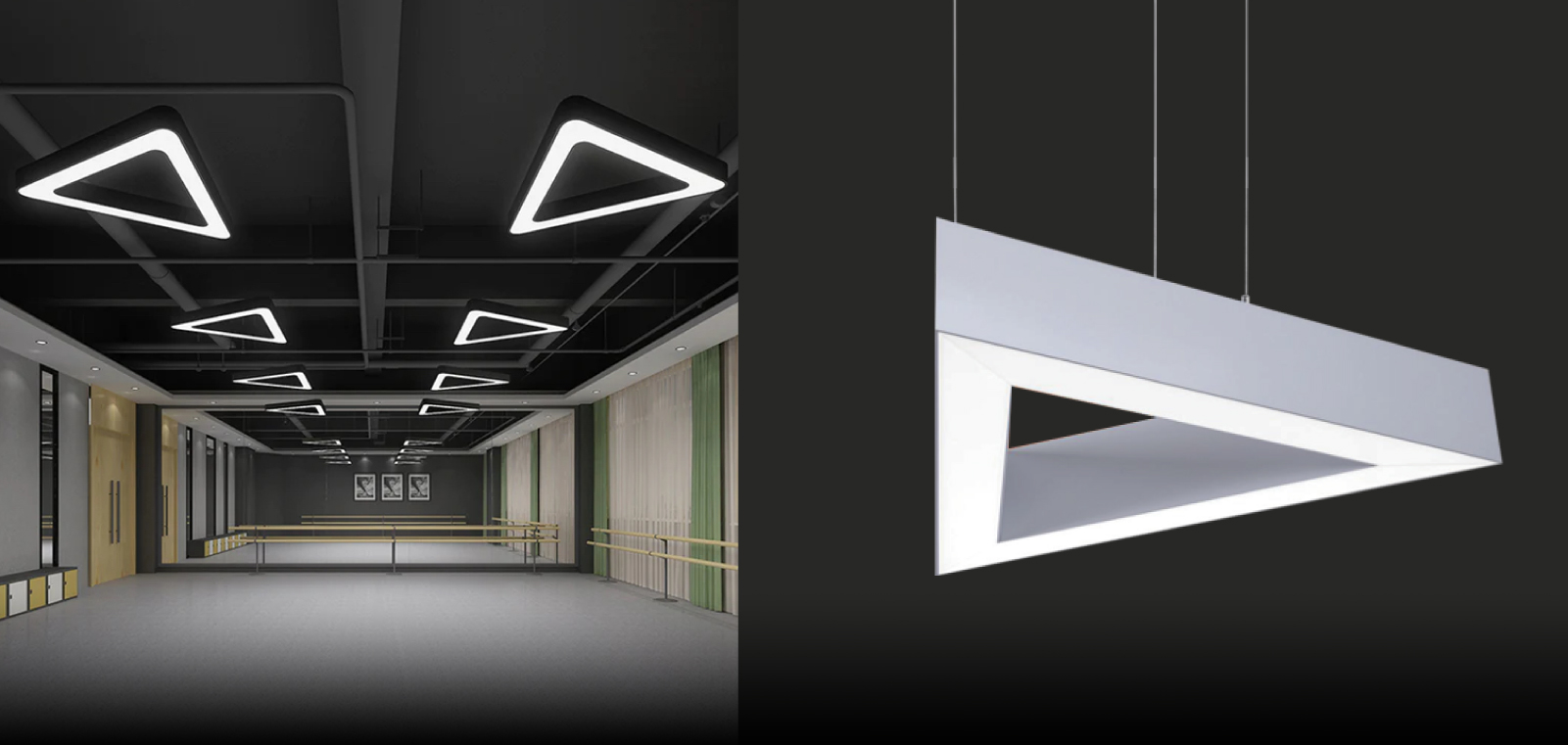

The TRIA comes in geometric triangle forms. Available in multiple sizes to fit the scale, proportions and light output requirements of the project. Optional acoustic system that maximizes surface area to absorb sound waves and improve harmony in the installed space, providing a perfect integration of lighting and acoustic control.
| Spec Sheet | TRIA Pendant Light Spec Sheet |
|---|---|
| IES | TRIA Pendant Light IES |
| Tech Info | TRIA Pendant Light Tech Info |
| Revit file | TRIA Pendant Light Revit file |
| Model number | Voltage(V) | Wattage(W) | Replaces/Equiv.(MH) | Controls | Lumens(lm) | CCT(K) | CRI | Distribution | Dimension | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TRIA-25-40901-ACPMK-WH | 120-277 | 25 | / | 0-10V Dim | 2500 | 4000 | 90 | / | 16.4"-14.2"-16.36"-3.0" | White | 20 | Aluminum | ETL | 50000 | 16944 |
| TRIA-40-40901-ACPMK-WH | 120-277 | 40 | / | 0-10V Dim | 4000 | 4000 | 90 | / | 20.5"-17.7"-20.45"-3.0" | White | 20 | Aluminum | ETL | 50000 | 16945 |
| TRIA-90-40901-ACPMK-WH | 120-277 | 90 | / | 0-10V Dim | 9000 | 4000 | 90 | / | 30.7"-26.6"-30.7"-3.0" | White | 20 | Aluminum | ETL | 50000 | 16946 |
| TRIA-180-40901-ACPMK-WH | 120-277 | 180 | / | 0-10V Dim | 18000 | 4000 | 90 | / | 40.9"-35.4"-40.9"-3.0" | White | 20 | Aluminum | ETL | 50000 | 16947 |
