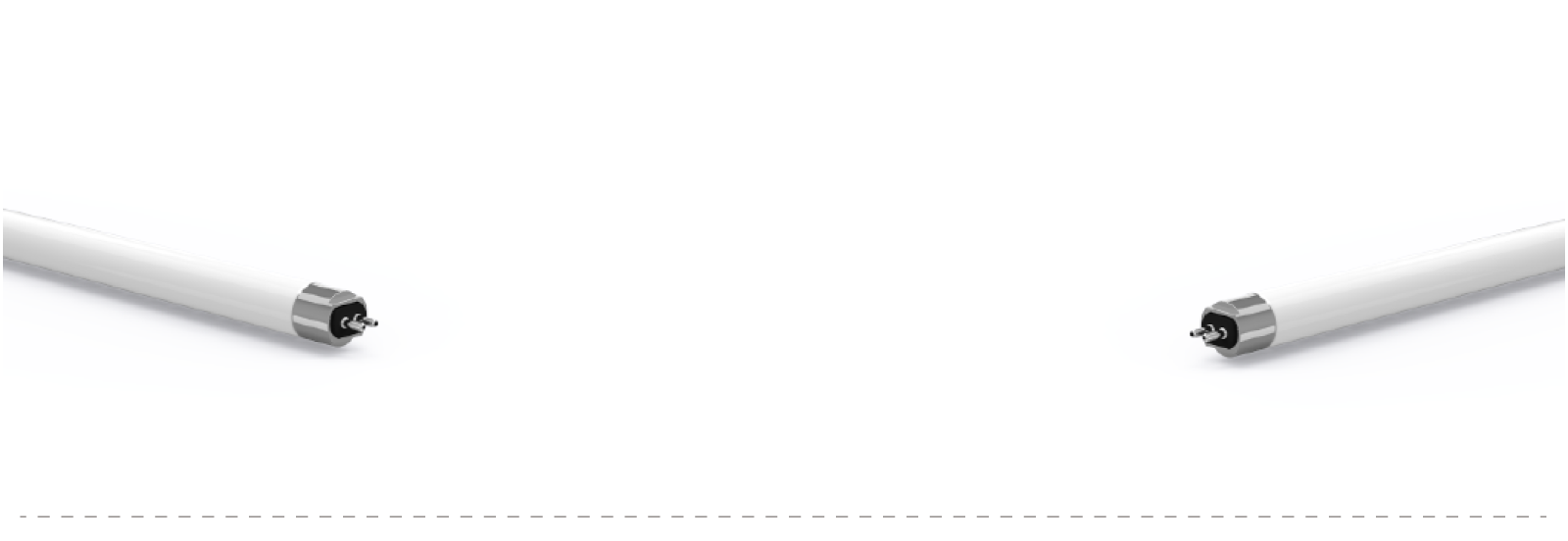

LED T5 Linear Replacement Lamps are the ideal energy saving choices when upgrading fluorescent linear T5 lamps. They are compatible with mainstream market F54T5/HO and F28T5/HE ballasts, please refer to the list of the compatible ballasts at the next page.
| Spec Sheet | Compatible T5 Tube(glass) Spec Sheet |
|---|---|
| Instruction Manual | Compatible T5 Tube(glass) Manual |
| Tech Info | Compatible T5 Tube(glass) Tech Info |
| Revit file | Please email info@abovealllighting.com for Revit file |
| Model number | Voltage(V) | Wattage(W) | Replaces/Equiv.(FL) | Dimming / Control | Lumens(lm) | CCT(K) | CRI | Beam Angle(Degree) | Dimension(L”-W”-H”) | Finish/Color | Base | Material | Compliance | Average Life Time(Hours) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T525409-FW12-GL | Compatible with electronic ballast | 25 | F54T5 | Base on the ballast | 3500 | 4000 | >80 | 160 | φ0.63"-45.23" | Frost White | G5 | Glass | UL/DLC | 50000 | 11640 |
| T525509-FW12-GL | Compatible with electronic ballast | 25 | F54T5 | Base on the ballast | 3500 | 5000 | >80 | 160 | φ0.63"-45.23" | Frost White | G5 | Glass | UL/DLC | 50000 | 11641 |
