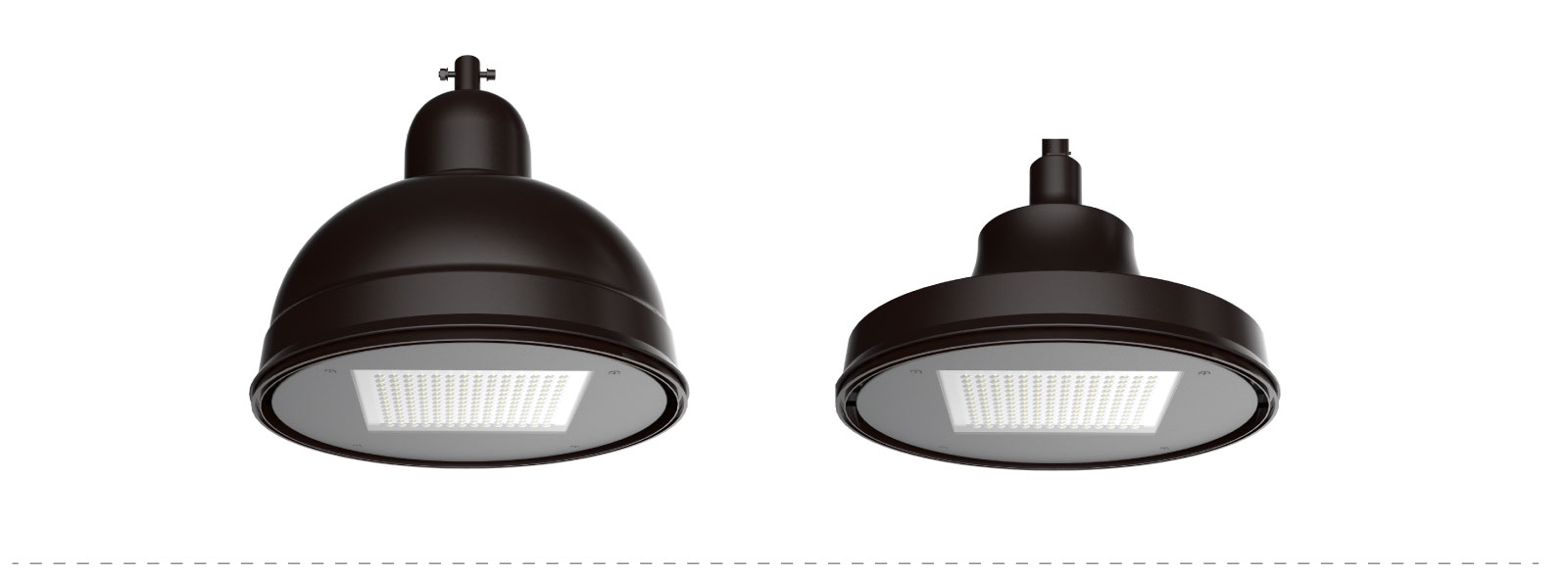

The VERSATILE series has the high-performance solution for the most demanding applications with an universal body and different shades. It can be used in many applications such as pedestrian street, factory, schools, garden, courtyard, hotel, parking lot, public parks etc.
| Spec Sheet | Versatile Post Top Spec Sheet |
|---|---|
| IES Files | Versatile Post Top IES Files |
| Instruction Manual | Versatile Post Top Instruction Manual |
| Motion Sensor | Programmable Multi-Level Motion Sensor Instruction Manual |
| Photocontrols | 120-277VAC/480VAC Photocontrols |
| Motion Sensor | Low Voltage Microwave Bi-level Sensor |
| Catalog | Versatile Post Top Catalog |
| How Are We Different | Versatile Post Top PPT |
| Revit file | Please email info@abovealllighting.com for Revit file |
| Tech Info | Versatile Post Top Tech Info |
| Video | Versatile Post Top Video |
| Model number | Voltage(V) | Wattage(W) | Replaces/Equiv.(MH) | Controls | Lumens(lm) | CCT(K) | CRI | Distribution | Dimension(D"-H") | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VPTP30401-VN | 120-277 | 30 | 150W | Available | 4060 | 4000 | 70 | Type VN | Φ19 3/16" -15 13/16" | Bronze | 66 | Aluminium | UL | 50000 | 14316 |
| VPTP60401-VN | 120-277 | 60 | 175W | Available | 8200 | 4000 | 70 | Type VN | Φ19 3/16" -15 13/16" | Bronze | 66 | Aluminium | UL | 50000 | 14317 |
| VPTP90401-VN | 120-277 | 90 | 250W | Available | 12000 | 4000 | 70 | Type VN | Φ19 3/16" -15 13/16" | Bronze | 66 | Aluminium | UL | 50000 | 14318 |
| VPTP150401-VN | 120-277 | 150 | 320W | Available | 18700 | 4000 | 70 | Type VN | Φ19 3/16" -15 13/16" | Bronze | 66 | Aluminium | UL | 50000 | 14319 |
