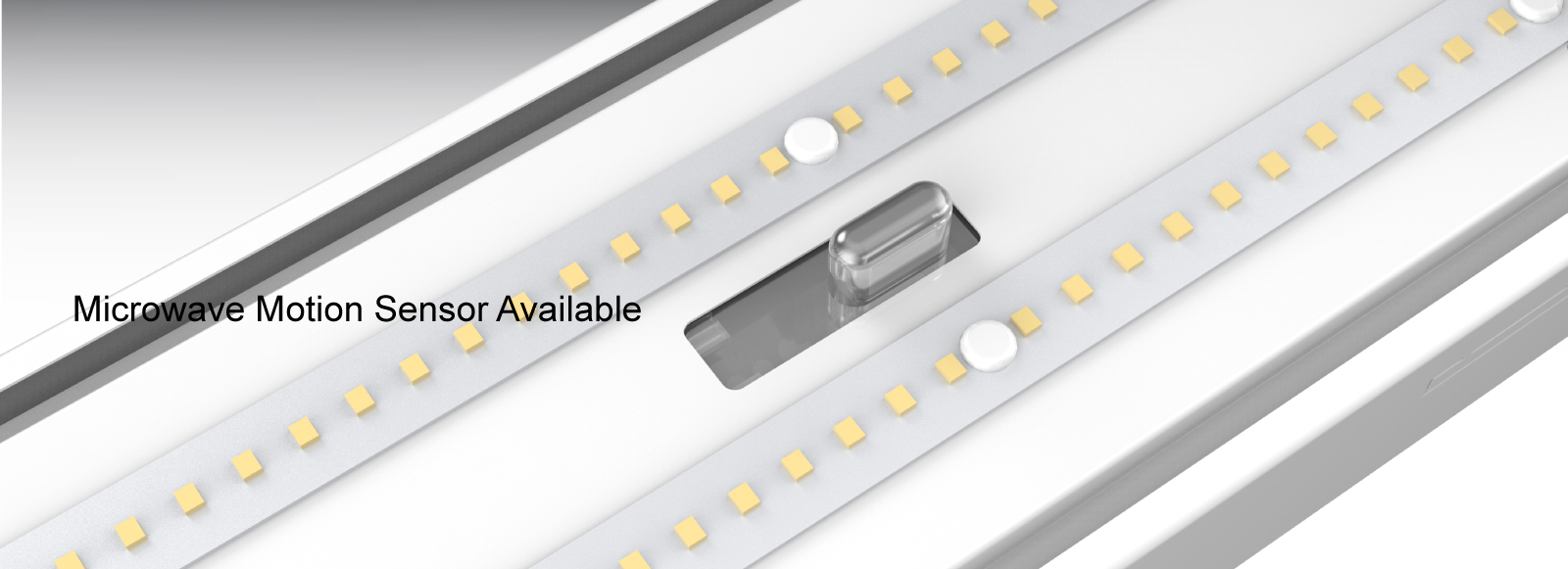

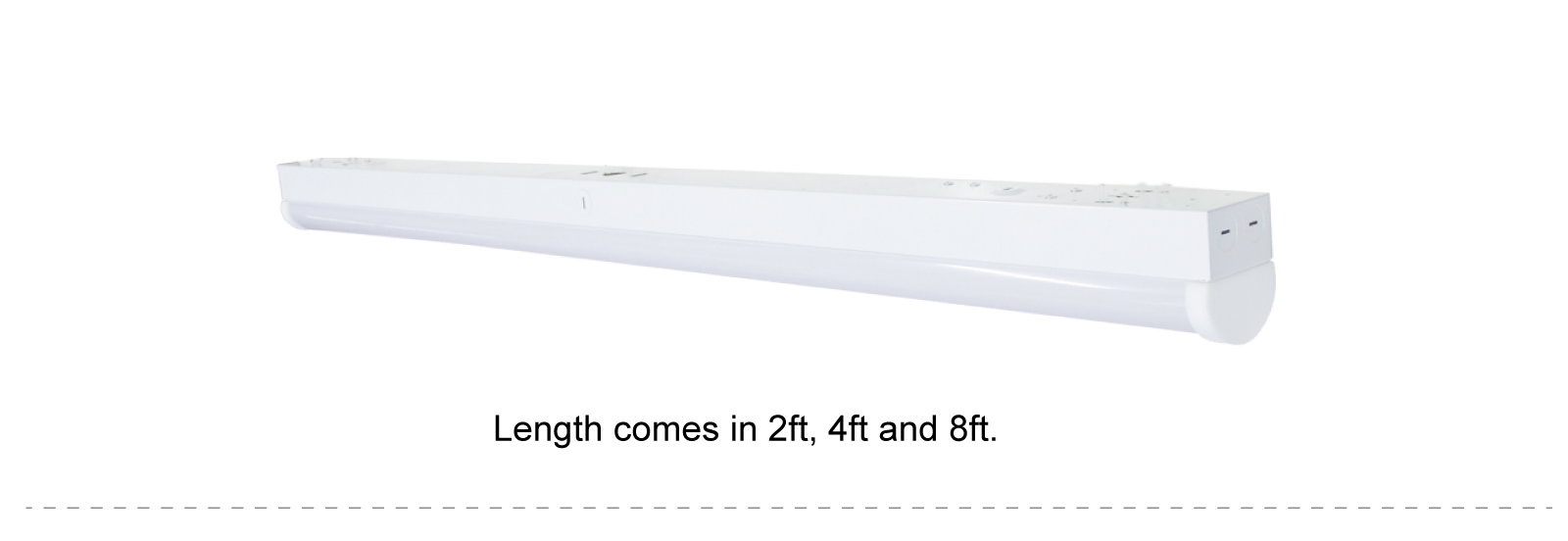

ABOVE ALL lighting’s LED Slim Strip features a slim, low-profile and traditional design with diffused lens. Comes in 2ft, 4ft and 8ft. 130LPW is standard. Microwave motion sensor and up-light reflector are available. It can be widely used in warehouse, office, garage, display shop and other commercial applications.
| Spec Sheet | GEN2 Slim Strip Light Spec Sheet |
|---|---|
| Instruction Manual | GEN2 Slim Strip Light Instruction Manual |
| Motion Sensor | MC087D RC Motion Sensor |
| IES | GEN2 Slim Strip Light IES |
| Tech Info | GEN2 Slim Strip Light Tech Info |
| Revit file | Please email info@abovealllighting.com for Revit file |
| Model number | Voltage(V) | Wattage(W) | Replaces/Equiv.(MH) | Controls | Lumens(lm) | CCT(K) | CRI | Distribution | Dimension(D"-H") | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SSTR12D24358-MSW | 120-347 | 24 | 2 Lamp - 17W T8 | sensor | 3120 | 3500K | 80 | 120° | 48.03"-2.95"-3.26" | White | 20 | Aluminium+PC | ETL | 50000 | 15836 |
| SSTR12D24408-MSW | 120-347 | 24 | 2 Lamp - 17W T8 | sensor | 3120 | 4000K | 80 | 120° | 48.03"-2.95"-3.26" | White | 20 | Aluminium+PC | ETL | 50000 | 15839 |
| SSTR12D24358 | 120-347 | 24 | 2 Lamp - 17W T8 | dimming | 3120 | 3500K | 80 | 120° | 48.03"-2.95"-3.26" | White | 20 | Aluminium+PC | ETL | 50000 | 15799 |
| SSTR12D24408 | 120-347 | 24 | 2 Lamp - 17W T8 | dimming | 3120 | 4000K | 80 | 120° | 48.03"-2.95"-3.26" | White | 20 | Aluminium+PC | ETL | 50000 | 15830 |
| SSTR12D32358-MSW | 120-347 | 32 | 2 Lamp - 32W T8 | sensor | 4160 | 3500K | 80 | 120° | 48.03"-2.95"-3.26" | White | 20 | Aluminium+PC | ETL | 50000 | 15837 |
| SSTR12D32408-MSW | 120-347 | 32 | 2 Lamp - 32W T8 | sensor | 4160 | 4000K | 80 | 120° | 48.03"-2.95"-3.26" | White | 20 | Aluminium+PC | ETL | 50000 | 15840 |
| SSTR12D32358 | 120-347 | 32 | 2 Lamp - 32W T8 | dimming | 4160 | 3500K | 80 | 120° | 48.03"-2.95"-3.26" | White | 20 | Aluminium+PC | ETL | 50000 | 15800 |
| SSTR12D32408 | 120-347 | 32 | 2 Lamp - 32W T8 | dimming | 4160 | 4000K | 80 | 120° | 48.03"-2.95"-3.26" | White | 20 | Aluminium+PC | ETL | 50000 | 15831 |
| SSTR12D40358-MSW | 120-347 | 40 | 4 Lamp - 17W T8 | sensor | 5200 | 3500K | 80 | 120° | 48.03"-2.95"-3.26" | White | 20 | Aluminium+PC | ETL | 50000 | 15838 |
| SSTR12D40408-MSW | 120-347 | 40 | 2 Lamp - 32W T8 | sensor | 5200 | 4000K | 80 | 120° | 48.03"-2.95"-3.26" | White | 20 | Aluminium+PC | ETL | 50000 | 15841 |
| SSTR24D40358-MSW | 120-347 | 40 | 2 Lamp - 32W T8 | sensor | 5200 | 3500K | 80 | 120° | 95.98"-2.95"-3.26" | White | 20 | Aluminium+PC | ETL | 50000 | 15842 |
| SSTR24D40408-MSW | 120-347 | 40 | 2 Lamp - 32W T8 | sensor | 5200 | 4000K | 80 | 120° | 95.98"-2.95"-3.26" | White | 20 | Aluminium+PC | ETL | 50000 | 15844 |
| SSTR12D40358 | 120-347 | 40 | 4 Lamp - 17W T8 | dimming | 5200 | 3500K | 80 | 120° | 48.03"-2.95"-3.26" | White | 20 | Aluminium+PC | ETL | 50000 | 15801 |
| SSTR12D40408 | 120-347 | 40 | 2 Lamp - 32W T8 | dimming | 5200 | 4000K | 80 | 120° | 48.03"-2.95"-3.26" | White | 20 | Aluminium+PC | ETL | 50000 | 15832 |
| SSTR24D40358 | 120-347 | 40 | 2 Lamp - 32W T8 | dimming | 5200 | 3500K | 80 | 120° | 95.98"-2.95"-3.26" | White | 20 | Aluminium+PC | ETL | 50000 | 15833 |
| SSTR24D40408 | 120-347 | 40 | 2 Lamp - 32W T8 | dimming | 5200 | 4000K | 80 | 120° | 95.98"-2.95"-3.26" | White | 20 | Aluminium+PC | ETL | 50000 | 15834 |
| SSTR24D65358-MSW | 120-347 | 65 | 4 Lamp - 17W | sensor | 8450 | 3500K | 80 | 120° | 95.98"-2.95"-3.26" | White | 20 | Aluminium+PC | ETL | 50000 | 15843 |
| SSTR24D65408-MSW | 120-347 | 65 | 4 Lamp - 17W | sensor | 8450 | 4000K | 80 | 120° | 95.98"-2.95"-3.26" | White | 20 | Aluminium+PC | ETL | 50000 | 15845 |
| SSTR24D65358 | 120-347 | 65 | 4 Lamp - 17W | dimming | 8450 | 3500K | 80 | 120° | 95.98"-2.95"-3.26" | White | 20 | Aluminium+PC | ETL | 50000 | 15798 |
| SSTR24D65408 | 120-347 | 65 | 4 Lamp - 17W | dimming | 8450 | 4000K | 80 | 120° | 95.98"-2.95"-3.26" | White | 20 | Aluminium+PC | ETL | 50000 | 15835 |
