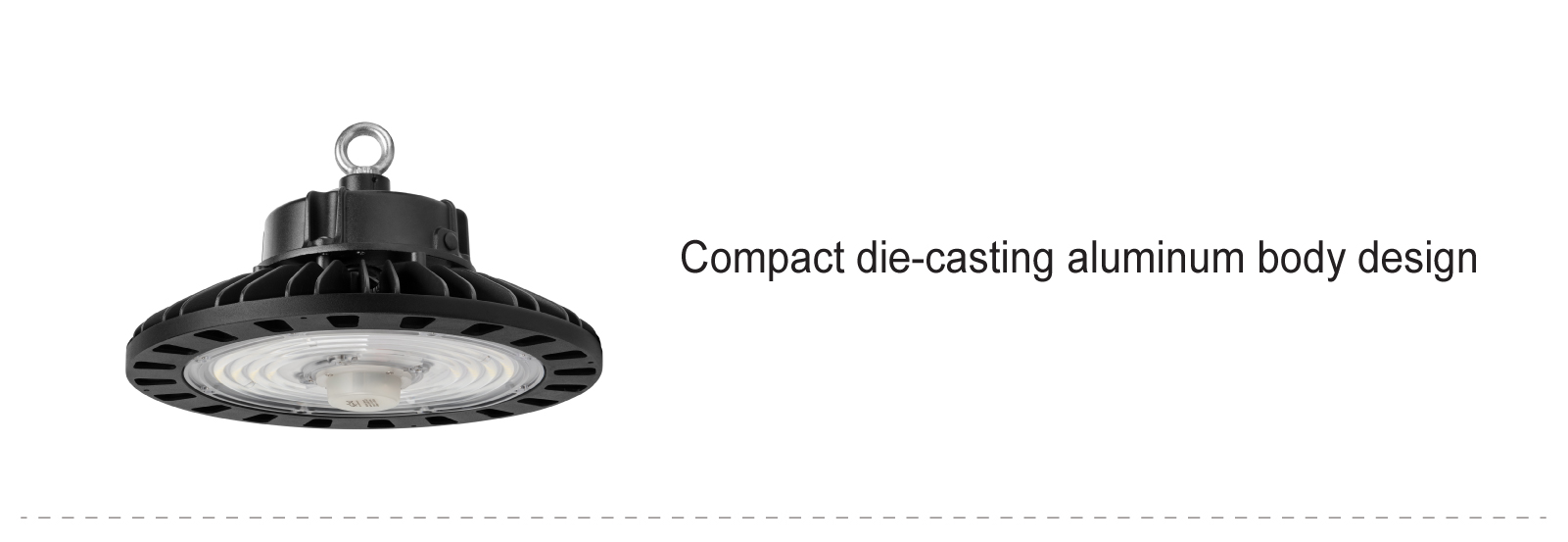

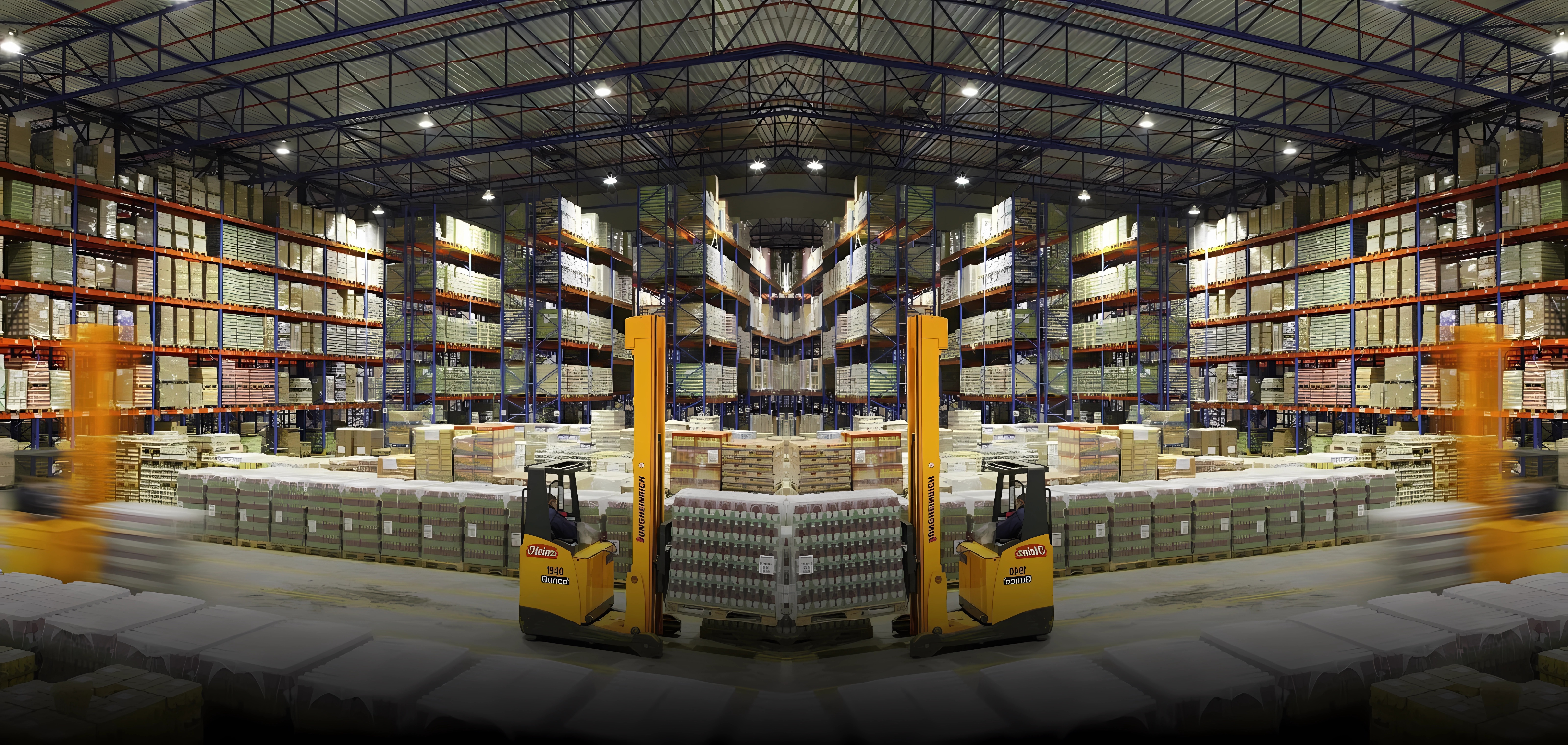

The GEN.3 LED UFO High Bay Light is for workshop, warehouse, indoor stadium and other industrial applications. It is an ideal replacement for Induction lamp, metal excellent thermal management in one-piece structure by die-casting technology. halide or HID lamp, pure aluminum heat sink enables the lumen efficacy higher with
| Spec Sheet | GEN.3 UFO High Bay Spec Sheet |
|---|---|
| Instruction Manual | GEN.3 UFO High Bay Manual |
| EBU | EMERGENCY LED DRIVER FOR UFO HIGH BAY |
| IES | GEN.3 UFO High Bay IES |
| Tech Info | GEN.3 UFO High Bay Tech Info |
| Dimension Files | Reflector Dimension Files |
| Revit file | Please email info@abovealllighting.com for Revit file |
| Model number | Voltage(V) | Wattage(W) | Replaces/Equiv.(MH) | Dimming / Control | Lumens(lm) | CCT(K) | CRI | Beam Angle(Degree) | Dimension(L“-W”-H“) | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HBG3-100401 | 120-277 | 100 | 4-lamp T5HO, 6-lamp T8, 320W HID | 0-10V Dim | 16500 | 4000K/5000K | 70 | 90 | 10.74"-2.25" | Black | 65 | Aluminum | UL | 50000 | 16770 |
| HBG3-100501 | 120-277 | 100 | 4-lamp T5HO, 6-lamp T8, 320W HID | 0-10V Dim | 16500 | 4000K/5000K | 70 | 90 | 10.74"-2.25" | Black | 65 | Aluminum | UL | 50000 | 16771 |
| HBG3-100406 | 347/480 | 100 | 4-lamp T5HO, 6-lamp T8, 320W HID | 0-10V Dim | 16500 | 4000K/5000K | 70 | 90 | 10.74"-2.25" | Black | 65 | Aluminum | UL | 50000 | 16776 |
| HBG3-100506 | 347/480 | 100 | 4-lamp T5HO, 6-lamp T8, 320W HID | 0-10V Dim | 16500 | 4000K/5000K | 70 | 90 | 10.74"-2.25" | Black | 65 | Aluminum | UL | 50000 | 16777 |
| HBG3-150401 | 120-277 | 150 | 6-lamp T5HO, 8-lamp T8, 400W HID | 0-10V Dim | 24000 | 4000K/5000K | 70 | 90 | 10.74"-2.25" | Black | 65 | Aluminum | UL | 50000 | 16772 |
| HBG3-150501 | 120-277 | 150 | 6-lamp T5HO, 8-lamp T8, 400W HID | 0-10V Dim | 24000 | 4000K/5000K | 70 | 90 | 10.74"-2.25" | Black | 65 | Aluminum | UL | 50000 | 16773 |
| HBG3-150406 | 347/480 | 150 | 6-lamp T5HO, 8-lamp T8, 400W HID | 0-10V Dim | 24000 | 4000K/5000K | 70 | 90 | 10.74"-2.25" | Black | 65 | Aluminum | UL | 50000 | 16778 |
| HBG3-150506 | 347/480 | 150 | 6-lamp T5HO, 8-lamp T8, 400W HID | 0-10V Dim | 24000 | 4000K/5000K | 70 | 90 | 10.74"-2.25" | Black | 65 | Aluminum | UL | 50000 | 16779 |
| HBG3-200401 | 120-277 | 200 | 8-lamp T5HO, 750W HID | 0-10V Dim | 32000 | 4000K/5000K | 70 | 90 | 12.62"-2.25" | Black | 65 | Aluminum | UL | 50000 | 16774 |
| HBG3-200501 | 120-277 | 200 | 8-lamp T5HO, 750W HID | 0-10V Dim | 32000 | 4000K/5000K | 70 | 90 | 12.62"-2.25" | Black | 65 | Aluminum | UL | 50000 | 16775 |
| HBG3-200406 | 347/480 | 200 | 8-lamp T5HO, 750W HID | 0-10V Dim | 32000 | 4000K/5000K | 70 | 90 | 12.62"-2.25" | Black | 65 | Aluminum | UL | 50000 | 16780 |
| HBG3-200506 | 347/480 | 200 | 8-lamp T5HO, 750W HID | 0-10V Dim | 32000 | 4000K/5000K | 70 | 90 | 12.62"-2.25" | Black | 65 | Aluminum | UL | 50000 | 16781 |
