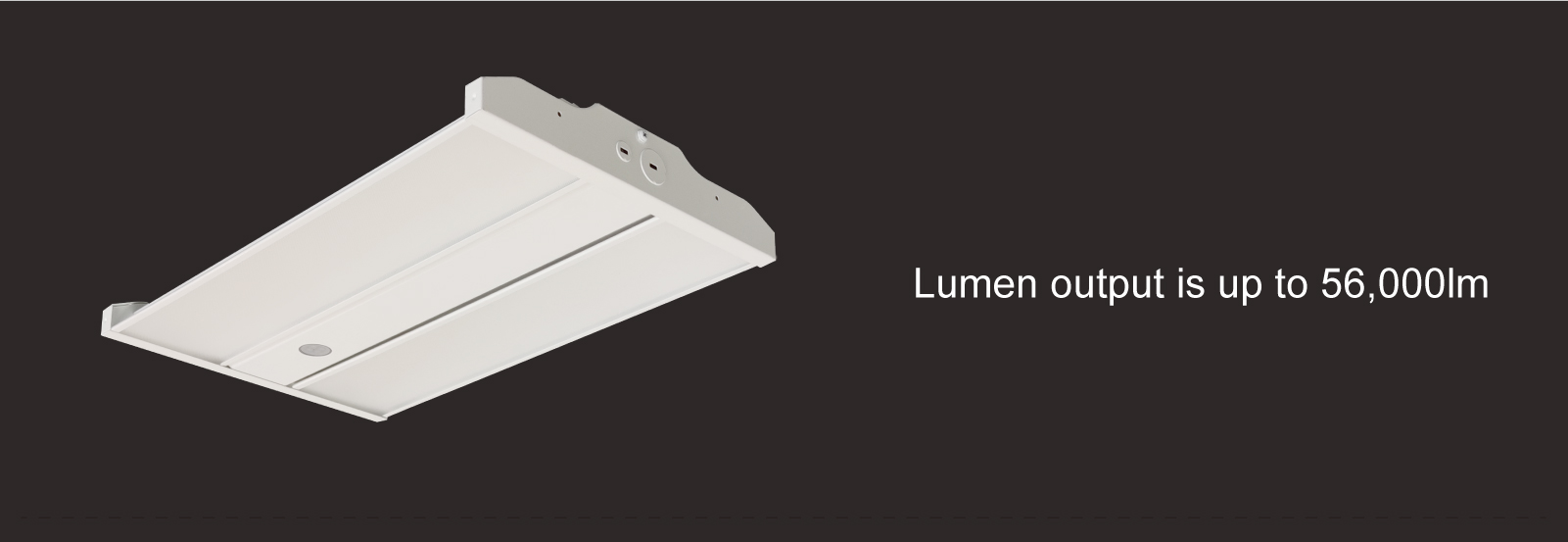

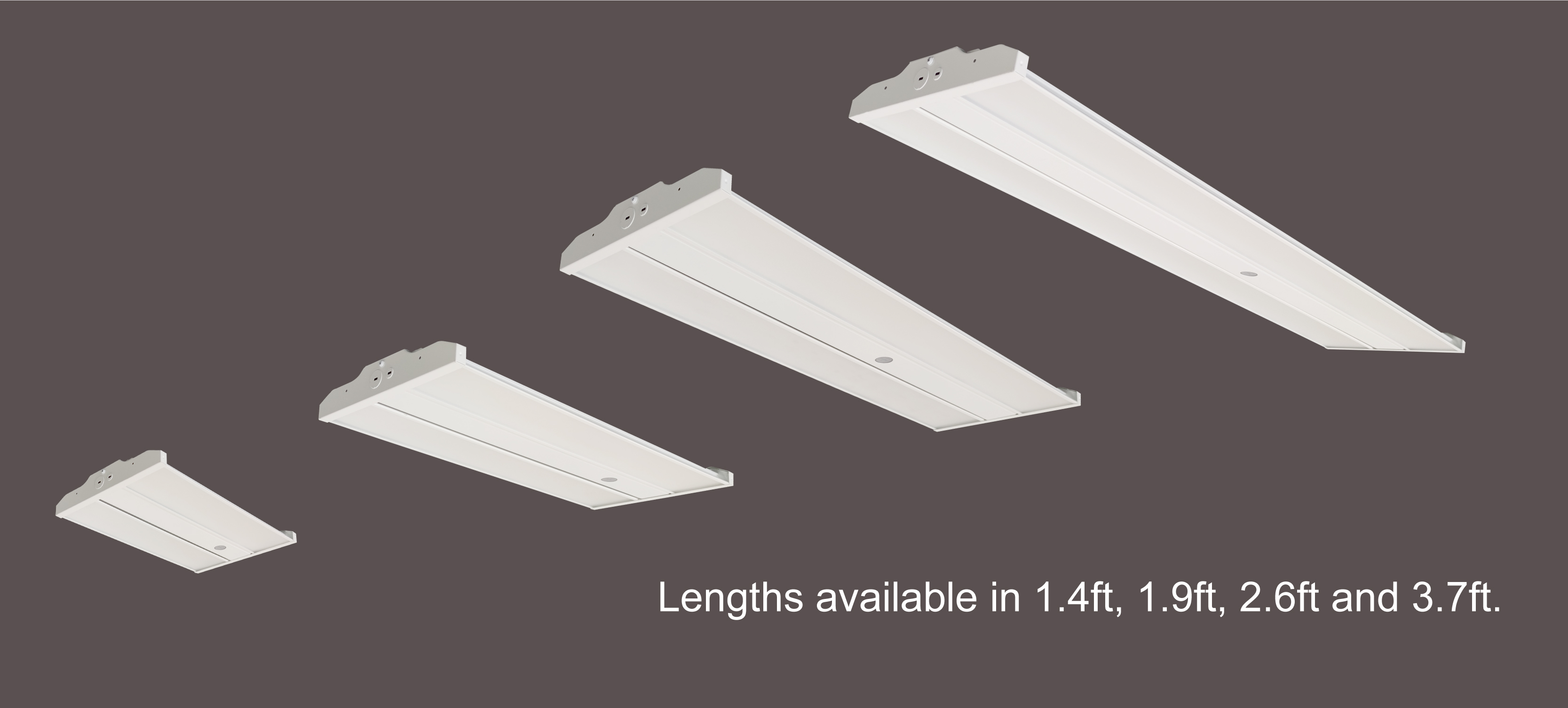

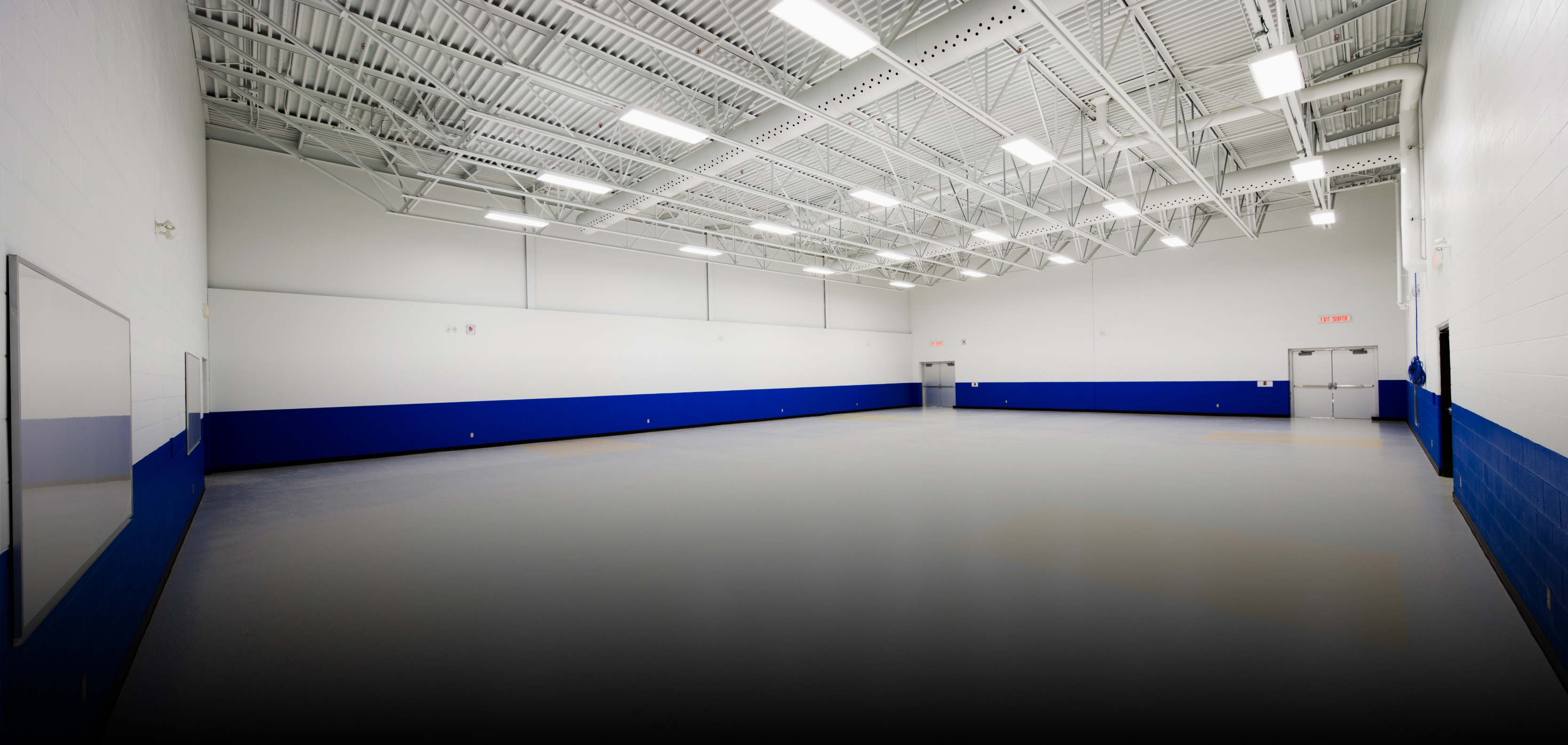

The GEN.4 LED Linear High Bay comes in compact, lightweight and slim design. Different lengths available in 1.4ft, 1.9ft, 2.6ft and 3.7ft. Lumen output is up to 56,000lm. 4000K and 5000K selectable. It is an ideal replacement for induction lamp, metal halide or HID lamp. For use in light Industrial applications such as workshop, warehouse, indoor stadium, etc.
| Model number | Voltage(V) | Wattage(W) | Replaces/Equiv.(MH) | Dimming / Control | Lumens(lm) | CCT(K) | CRI | Beam Angle(Degree) | Dimension(L“-W”-H“) | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LHBG4-14-135SP-SW1-G-WH | 120-277 | 100W/115W/135W | 4-lamp T5HO, 6-lamp T8, 320W HID | 0-10V Dim | 19900 | 4000K/5000K | 80 | / | 16.6"-10.2"-1.8" | White | 20 | Sheet iron | UL | 50000 | 17783 |
| LHBG4-19-200SP-SW1-G-WH | 120-277 | 155W/185W/200W | 6-lamp T5HO, 8-lamp T8, 400W HID | 0-10V Dim | 28000 | 4000K/5000K | 80 | / | 22.9"-10.2"-1.8" | White | 20 | Sheet iron | UL | 50000 | 17784 |
| LHBG4-26-270SP-SW1-G-WH | 120-277 | 200W/230W/270W | 6-lamp T5HO, 8-lamp T8, 400W HID | 0-10V Dim | 39700 | 4000K/5000K | 80 | / | 31.2"-10.2"-1.8" | White | 20 | Sheet iron | UL | 50000 | 17785 |
| LHBG4-37-400SP-SW1-G-WH | 120-277 | 270W/340W/400W | 8-lamp T5HO, 750W HID | 0-10V Dim | 56000 | 4000K/5000K | 80 | / | 44.2"-10.2"-1.8" | White | 20 | Sheet iron | UL | 50000 | 17786 |
