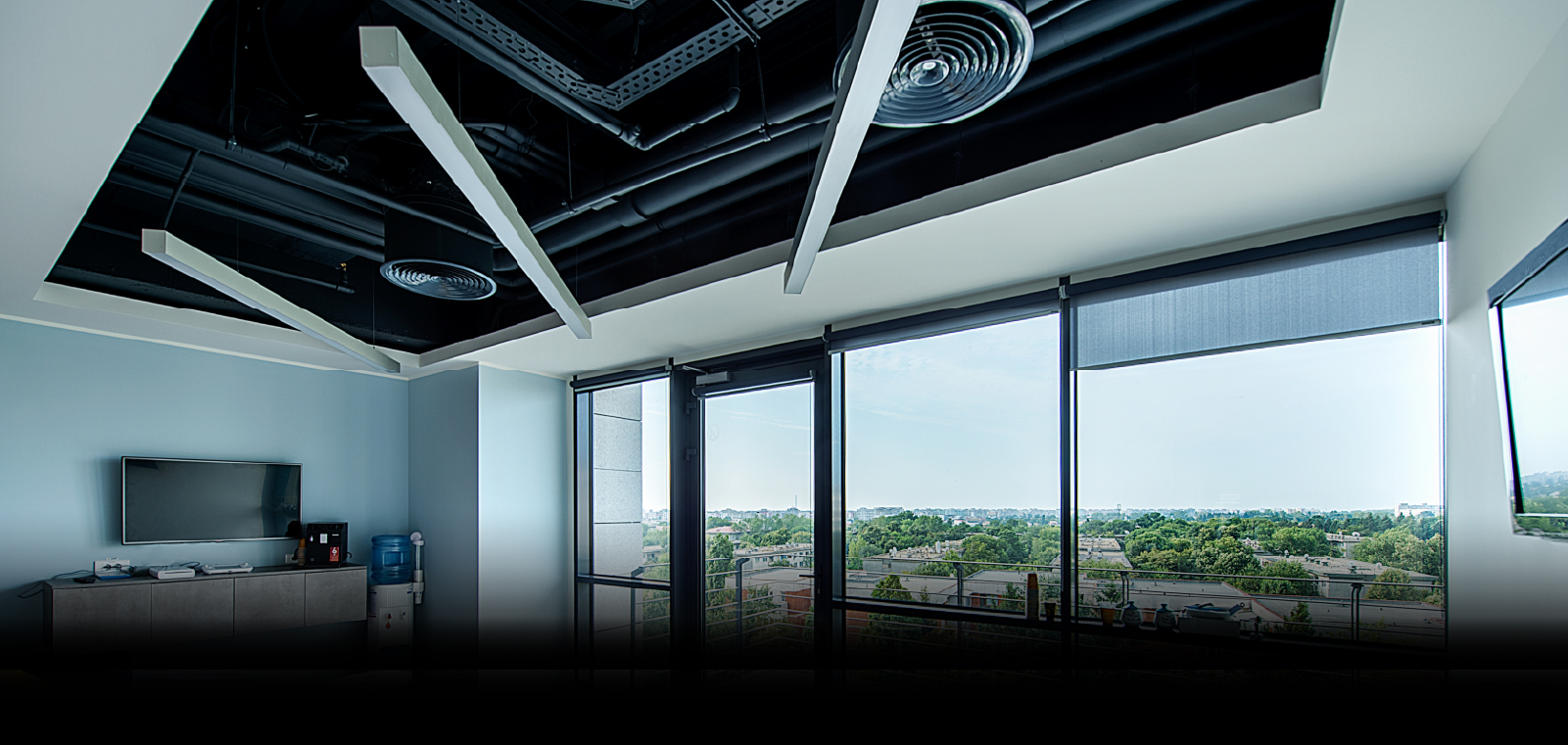

This MAGIC led linear fixture is a 2.3" wide linear architectural luminaire with a slim and discreet profile. The MAGIC is available in standard lengths of 2′, 4′, and 8′, and can be joined together in seamless runs of desired length. The MAGIC is an affordable indirect/direct linear LED luminaire. Various optical design delivers uniform, continuous lines of light. Different pattern joiners available for unlimited lighting pattern design.
| Spec Sheet | 2.3 Inch WIDE MAGIC LED Linear Light Spec Sheet |
|---|---|
| EBU Spec Sheet | EMERGENCY LED DRIVER Spec Sheet |
| Instruction Manual | SURFACE (MULTIPLE LUMINAIRES) FOR DRY CEILING INSTALLATION |
| Instruction Manual | SURFACE (SINGLE LUMINAIRE) FOR DRY CEILING INSTALLATION |
| Instruction Manual | 2.3 / 3.8 Magic led Linear Light Suspended Mount Manual |
| Instruction Manual | Microwave Motion Sensor Kits Pendant Manual |
| IES | 2.3 Inch WIDE MAGIC LED Linear Light IES |
| Tech Info | 2.3 Inch WIDE MAGIC LED Linear Light Tech Info |
| Revit file | 2.3 Inch WIDE SUSPENDED LED LINEAR LIGHT Revit file |
| Model number | Voltage(V) | Wattage(W) | Replaces/Equiv.(MH) | Controls | Lumens(lm) | CCT(K) | CRI | Distribution | Dimension(L"-W"-H") | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MAG0623-SW1-PSM-SD-FDL | 120-277 | 10W/15W/20W | / | 0-10V Dim | 2300 | 3000/3500/4000 | 80 | / | 23.82"-2.34"-3.46" | White | 20 | Aluminum | UL | 50000 | 17006 |
| MAG0623-SW1-WM-SD-FDL | 120-277 | 10W/15W/20W | / | 0-10V Dim | 2300 | 3000/3500/4000 | 80 | / | 23.82"-2.34"-3.46" | White | 20 | Aluminum | UL | 50000 | 17011 |
| MAG1223-SW1-PSM-SD-FDL | 120-277 | 20W/30W/40W | / | 0-10V Dim | 4600 | 3000/3500/4000 | 80 | / | 47.44"-2.34"-3.46" | White | 20 | Aluminum | UL | 50000 | 16265 |
| MAG1223-SW1-WM-SD-FDL | 120-277 | 20W/30W/40W | / | 0-10V Dim | 4600 | 3000/3500/4000 | 80 | / | 47.44"-2.34"-3.46" | White | 20 | Aluminum | UL | 50000 | 17010 |
| MAG2423-SW1-PSM-SD-FDL | 120-277 | 40W/60W/80W | / | 0-10V Dim | 9200 | 3000/3500/4000 | 80 | / | 94.69"-2.34"-3.46" | White | 20 | Aluminum | UL | 50000 | 16682 |
| MAG2423-SW1-WM-SD-FDL | 120-277 | 40W/60W/80W | / | 0-10V Dim | 9200 | 3000/3500/4000 | 80 | / | 94.69"-2.34"-3.46" | White | 20 | Aluminum | UL | 50000 | 17009 |
