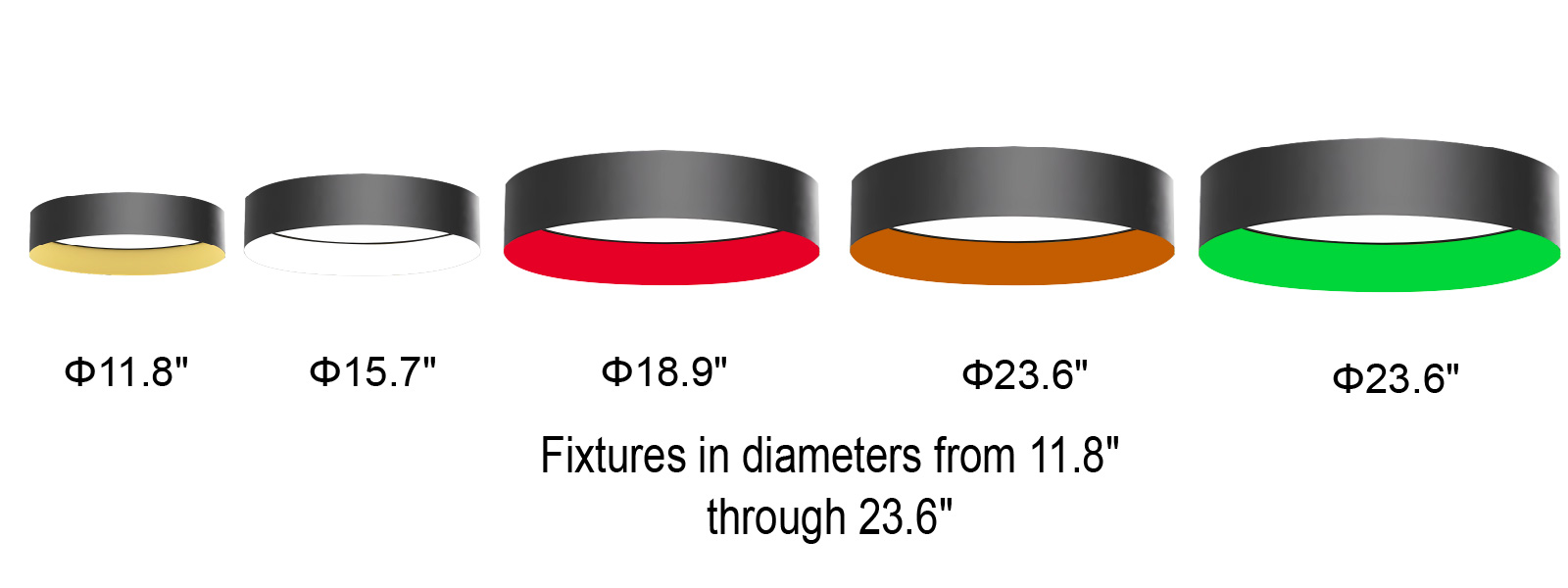

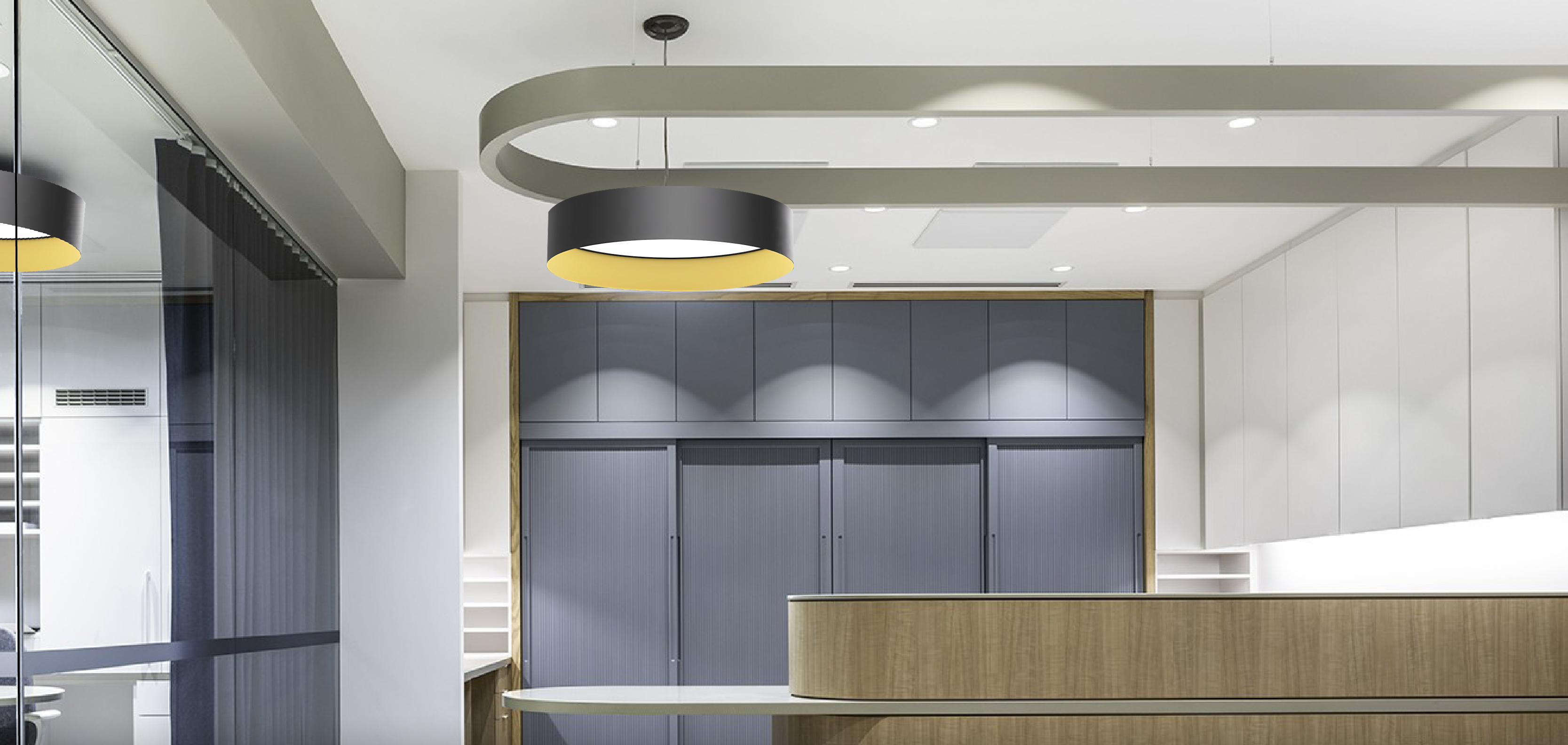

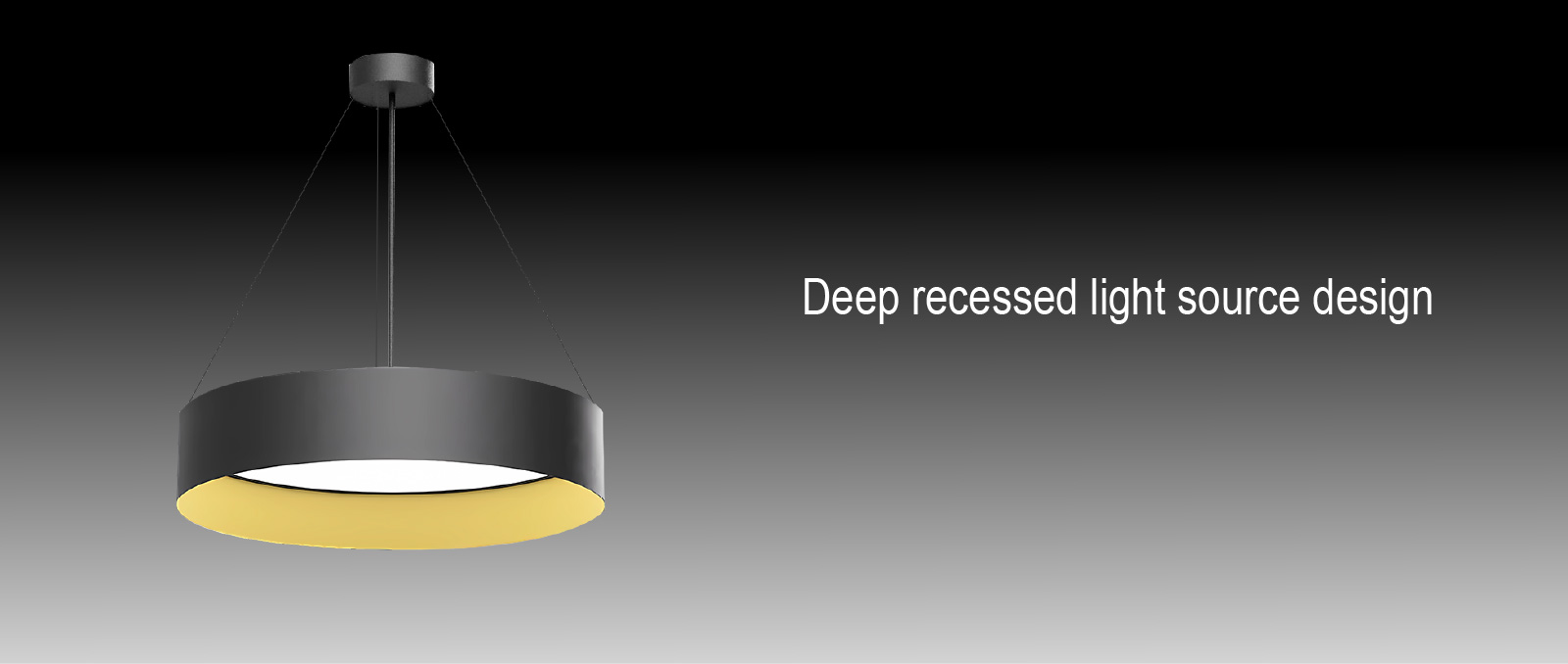

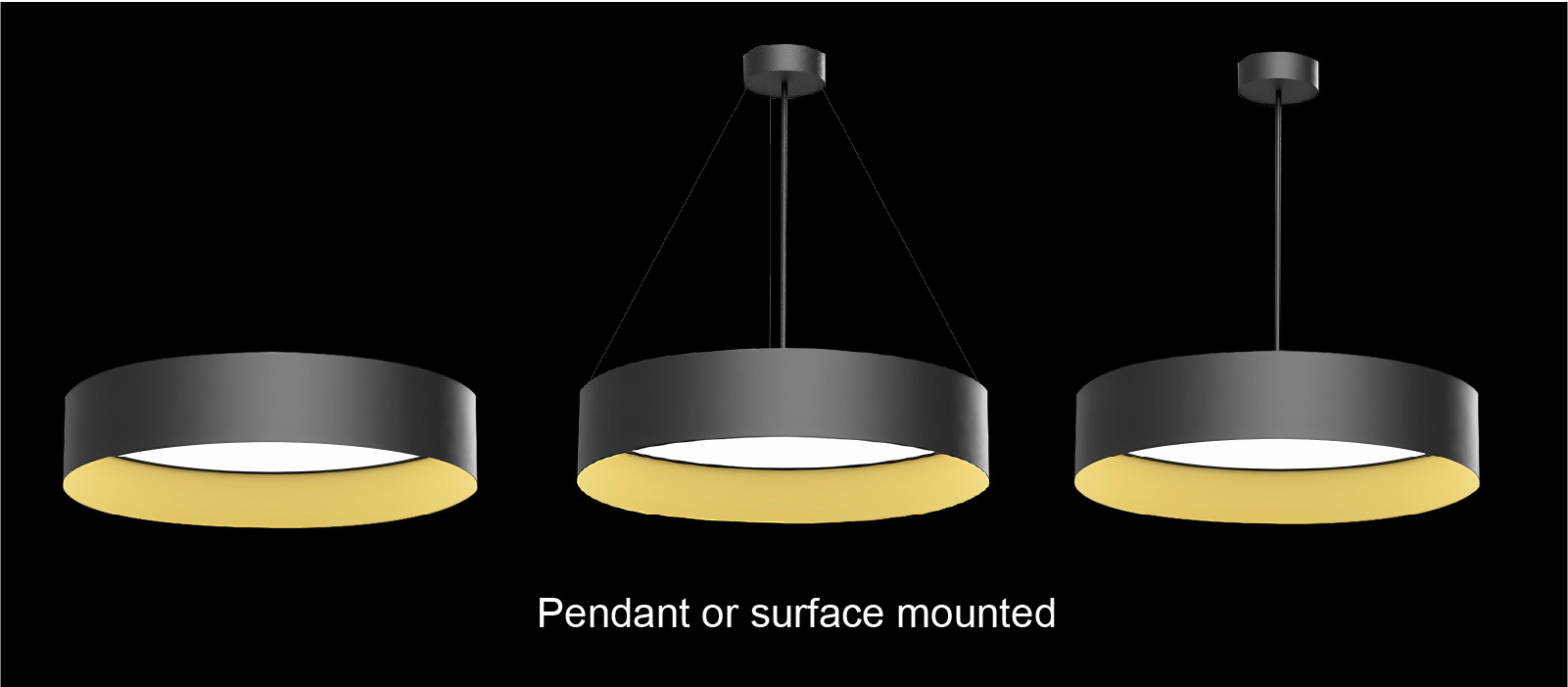

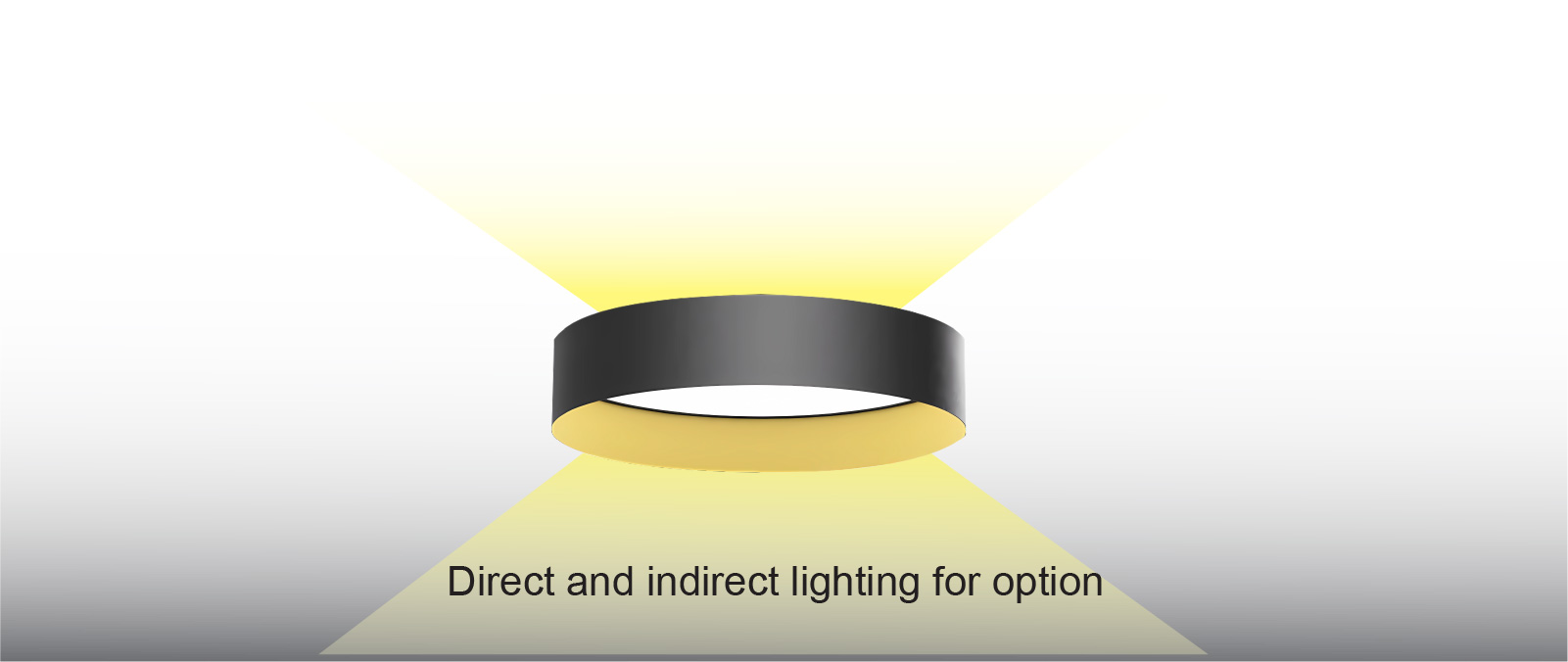

The Deep Focus Round offers the FOCUS family more choices. Fixture comes in diameters from 11.8" through 23.6". Deep recessed light source design achieving perfect glare control. Flexible installations come in pendant and surface mounted. Direct and indirect lighting for option. The Deep Focus is perfect for both commercial and residential applications.
| Spec Sheet | Deep Focus Round Spec Sheet |
|---|---|
| IES | Deep Focus Round IES |
| Tech Info | Deep Focus Round Tech Info |
| Brochure | Deep Focus Round Brochure |
| Revit file | Deep Focus Round Revit file |
| Model number | Voltage(V) | Wattage(W) | Replaces/Equiv.(MH) | Controls | Lumens(lm) | CCT(K) | CRI | Distribution | Dimension | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFRD12-15-40901-ACPMK | 120-277 | 15 | / | 0-10V Dim | 1280 | 4000 | 90 | / | 11.8'' | White | 20 | PMMA+aluminum | ETL | 50000 | 16821 |
| DFRD12-15-40901-SMK | 120-277 | 15 | / | 0-10V Dim | 1280 | 4000 | 90 | / | 11.8'' | White | 20 | PMMA+aluminum | ETL | 50000 | 16827 |
| DFRD16-20-40901-ACPMK | 120-277 | 20 | / | 0-10V Dim | 1700 | 4000 | 90 | / | 15.7'‘ | White | 20 | PMMA+aluminum | ETL | 50000 | 16822 |
| DFRD16-20-40901-SMK | 120-277 | 20 | / | 0-10V Dim | 1700 | 4000 | 90 | / | 15.7'‘ | White | 20 | PMMA+aluminum | ETL | 50000 | 16828 |
| DFRD19-25-40901-ACPMK | 120-277 | 25 | / | 0-10V Dim | 2100 | 4000 | 90 | / | 18.9'' | White | 20 | PMMA+aluminum | ETL | 50000 | 16823 |
| DFRD19-25-40901-SMK | 120-277 | 25 | / | 0-10V Dim | 2100 | 4000 | 90 | / | 18.9'' | White | 20 | PMMA+aluminum | ETL | 50000 | 16829 |
| DFRD24-40-40901-ACPMK | 120-277 | 40 | / | 0-10V Dim | 3400 | 4000 | 90 | / | 23.6'' | White | 20 | PMMA+aluminum | ETL | 50000 | 16824 |
| DFRD24-40-40901-SMK | 120-277 | 40 | / | 0-10V Dim | 3400 | 4000 | 90 | / | 23.6'' | White | 20 | PMMA+aluminum | ETL | 50000 | 16830 |
| DFRID19-50-40901-ACPMK | 120-277 | 50 | / | 0-10V Dim | 4250 | 4000 | 90 | / | 18.9'' | White | 20 | PMMA+aluminum | ETL | 50000 | 16825 |
| DFRID19-50-40901-SMK | 120-277 | 50 | / | 0-10V Dim | 4250 | 4000 | 90 | / | 18.9'' | White | 20 | PMMA+aluminum | ETL | 50000 | 16831 |
| DFRID24-80-40901-ACPMK | 120-277 | 80 | / | 0-10V Dim | 6800 | 4000 | 90 | / | 23.6'' | White | 20 | PMMA+aluminum | ETL | 50000 | 16826 |
| DFRID24-80-40901-SMK | 120-277 | 80 | / | 0-10V Dim | 6800 | 4000 | 90 | / | 23.6'' | White | 20 | PMMA+aluminum | ETL | 50000 | 16832 |
