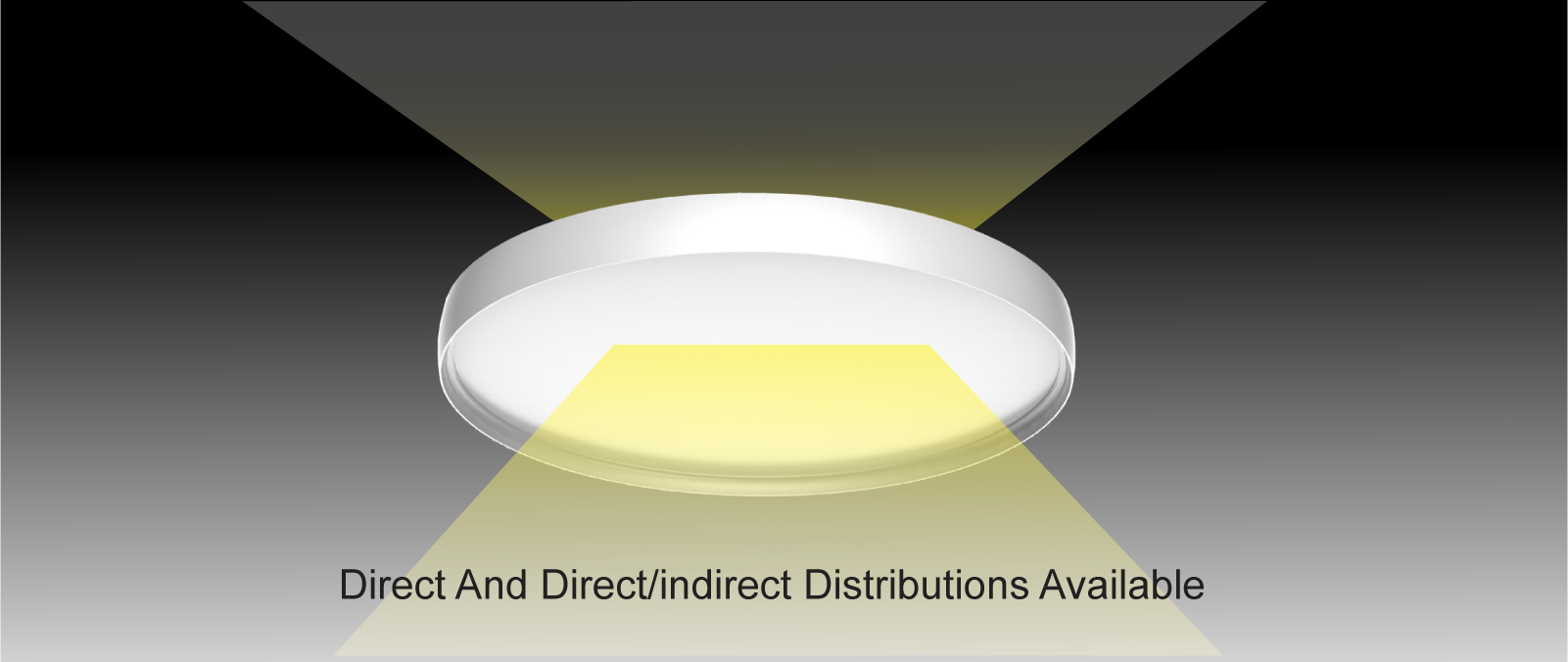

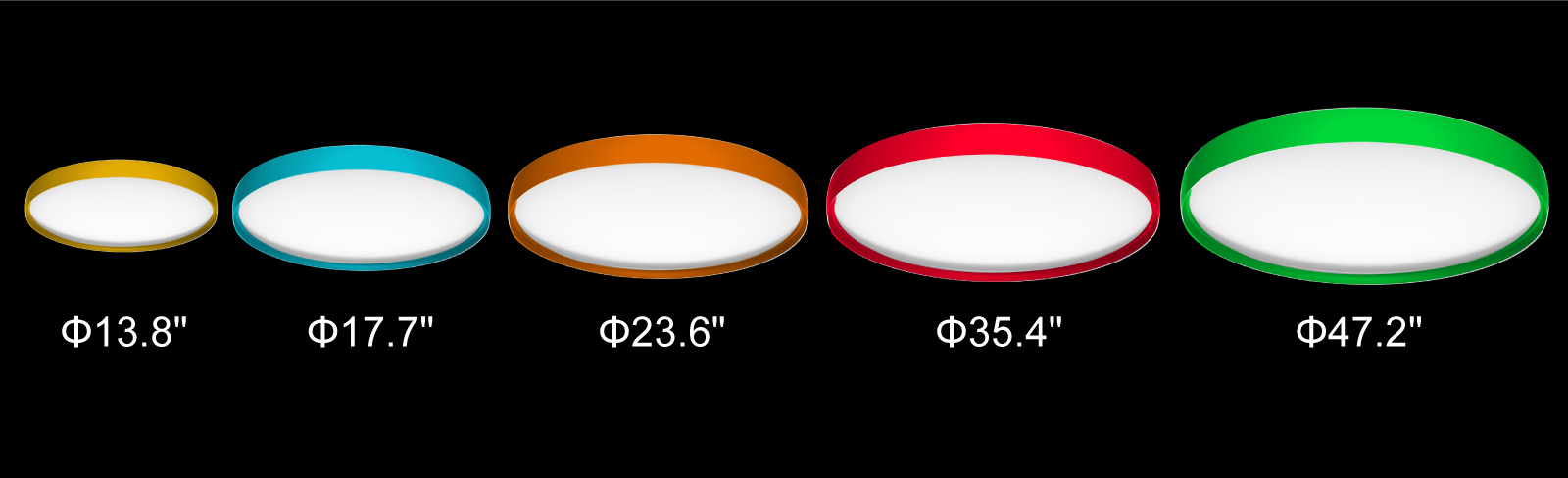

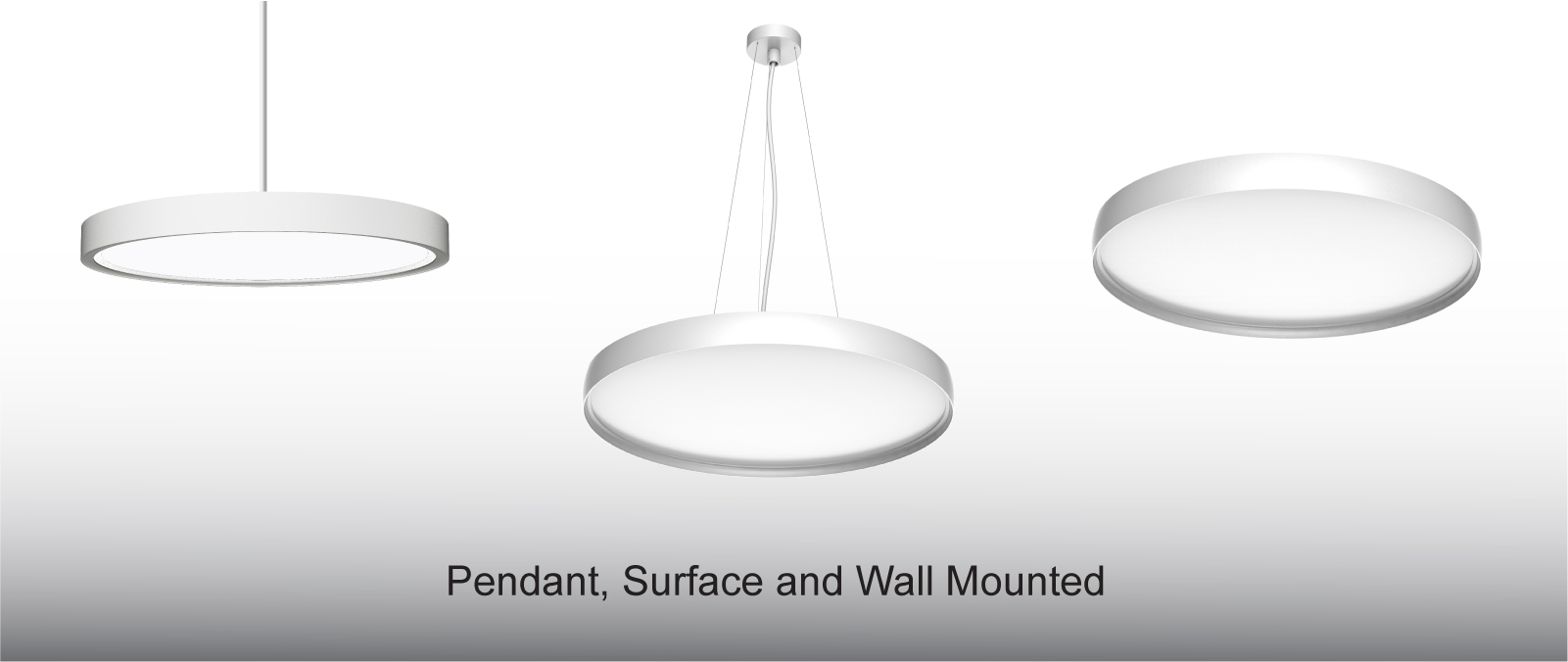

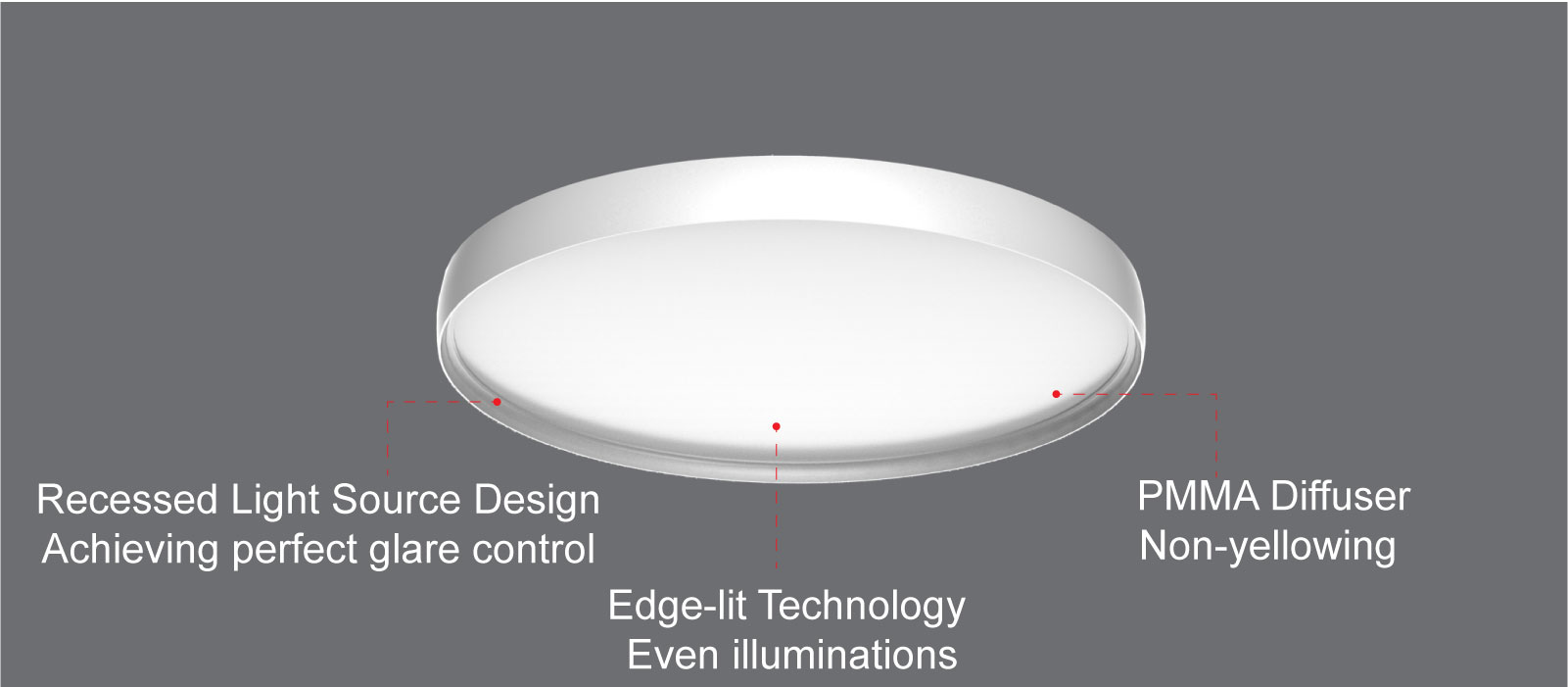

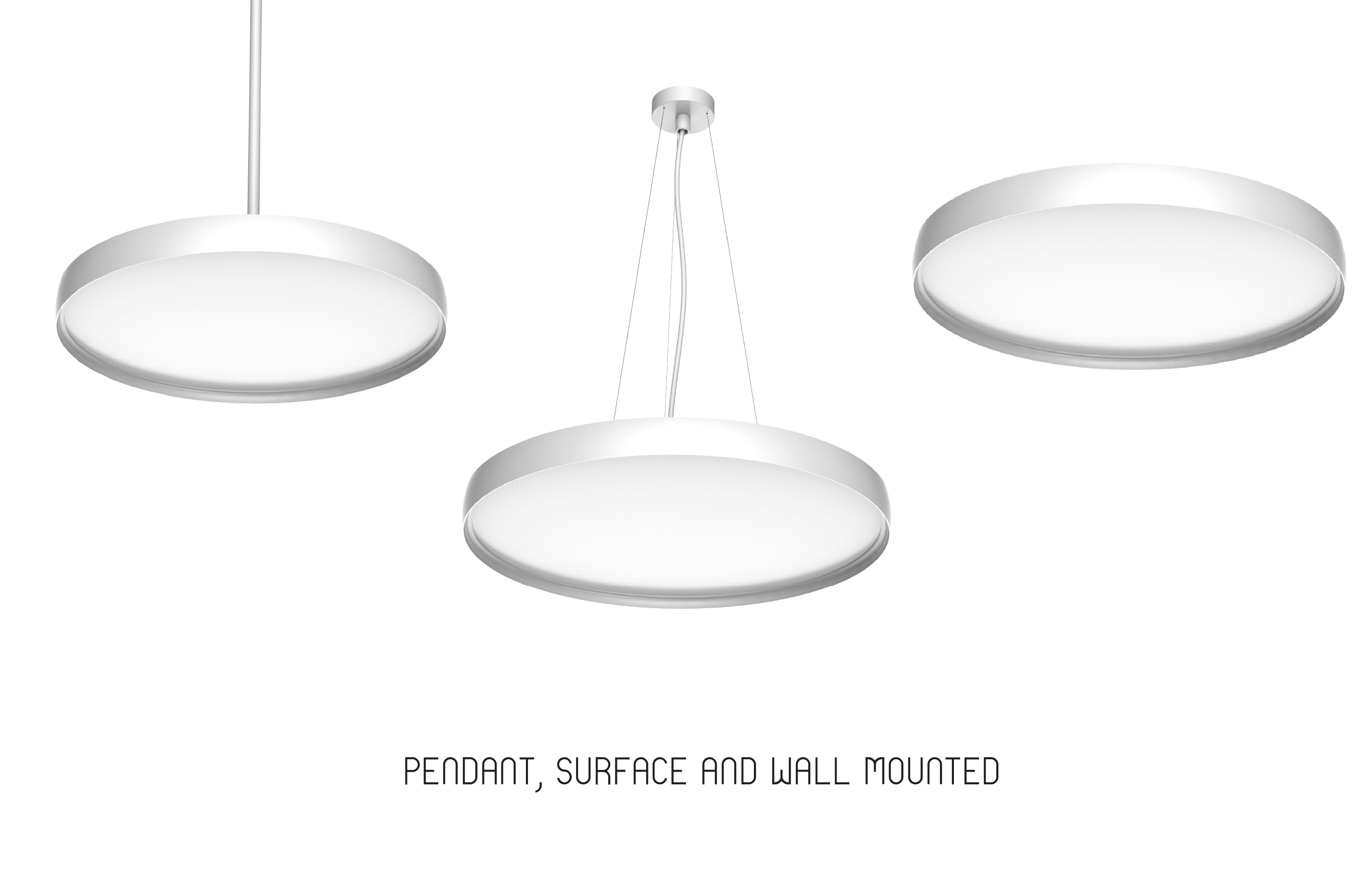

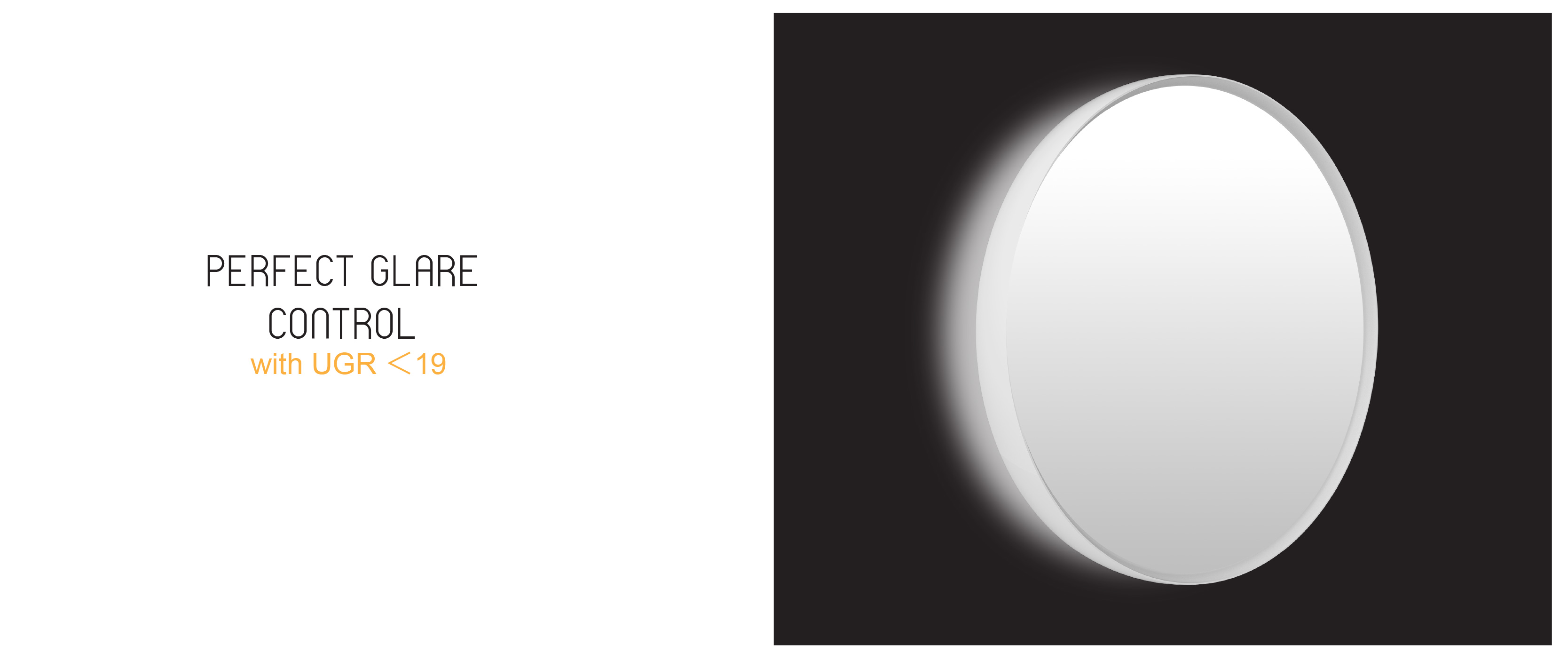

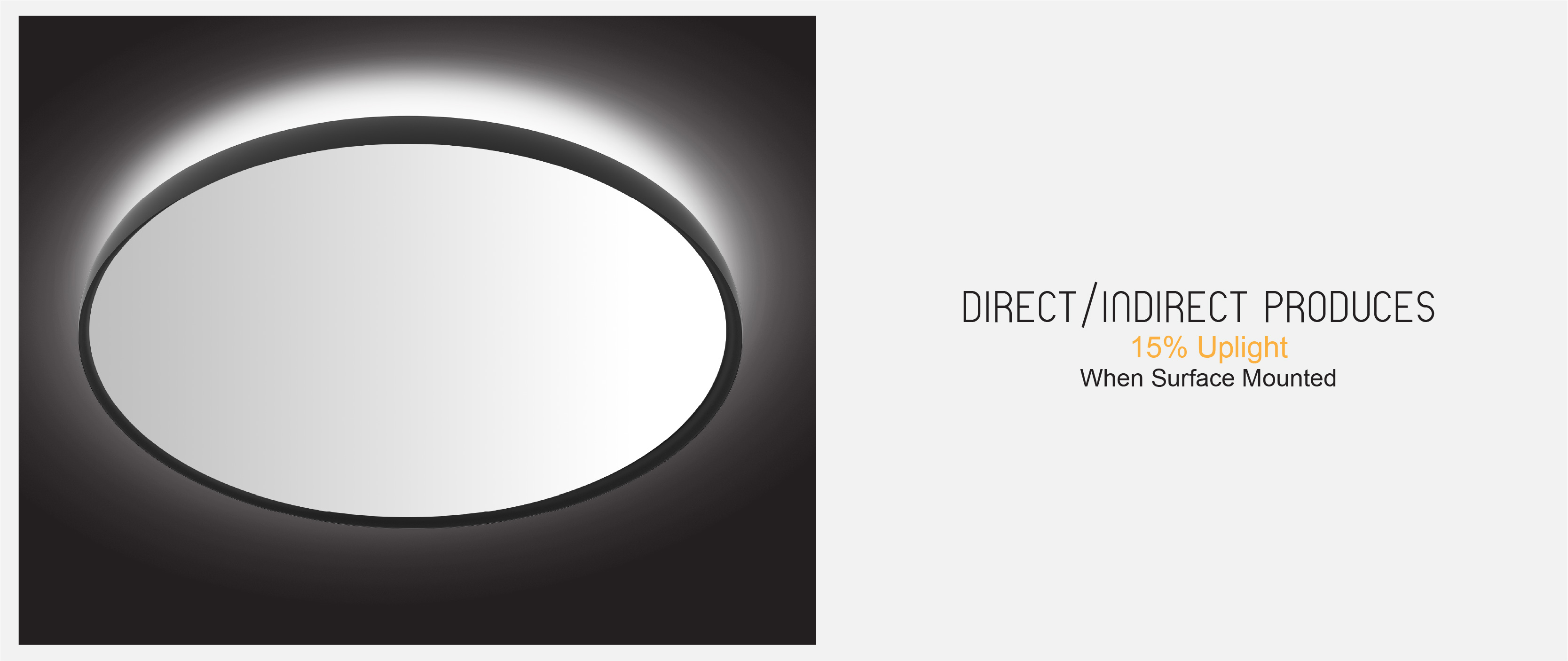

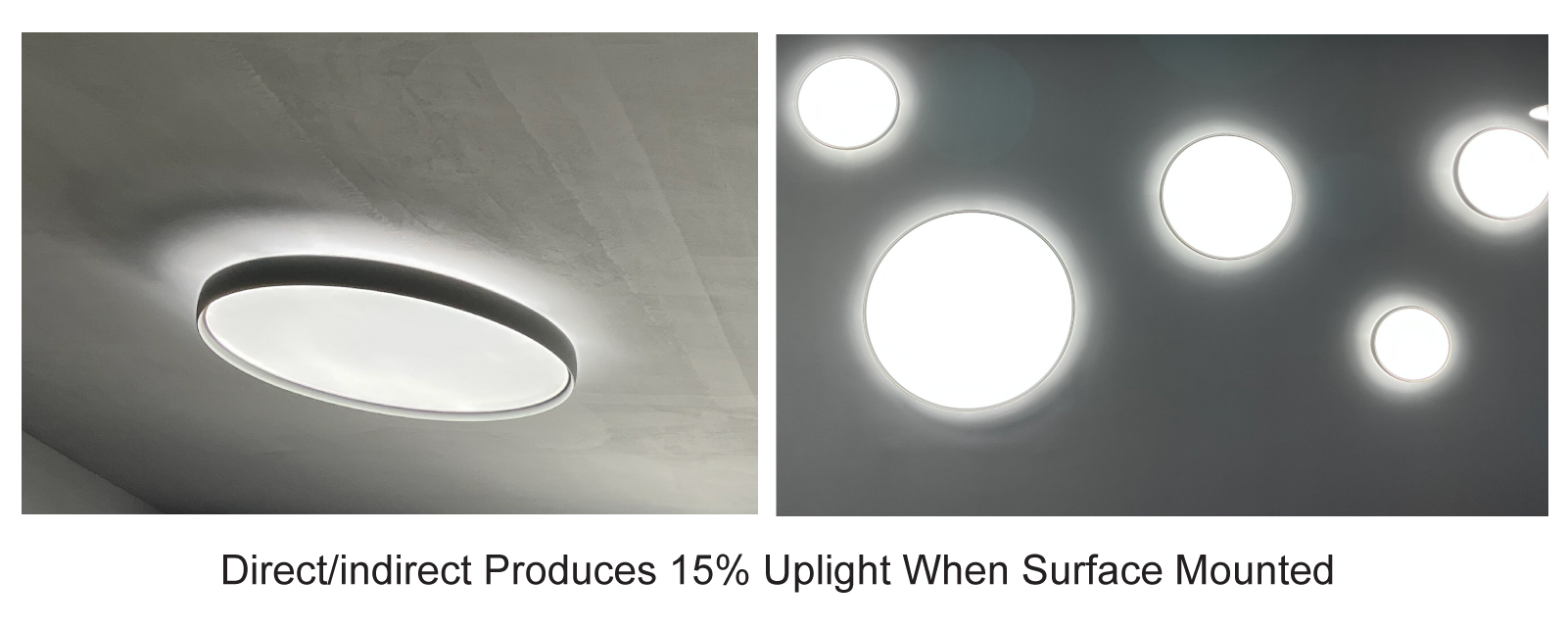

The Focus Round offers the FOCUS family of LED fixtures in diameters from 13.8” through 47.2”.Recessed light source design achieving perfect glare control. Edge-lit technology and non-yellowing microprismatic optical PMMA. Flexible installations come in pendant, surface, recessed and wall mounted. Options are available in tunable white, direct and indirect light distributions.
| Spec Sheet | Focus Round Spec Sheet |
|---|---|
| Instruction Manual | Focus Round Aircraft Cable Mount Manual |
| Instruction Manual | Focus Round Stem Mount Manual |
| Instruction Manual | Focus Round Surface Mount Manual |
| IES | Focus Round IES |
| Tech Info | Focus Round Tech Info |
| Revit file | Focus Round Revit file |
| Model number | Voltage(V) | Wattage(W) | Replaces/Equiv.(MH) | Controls | Lumens(lm) | CCT(K) | CRI | Distribution | Dimension | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FRD14-23-40801 | 120-277 | 23 | / | 0-10V Dim | 2400 | 4000 | 80 | / | 13.8" | White | 20 | PMMA+aluminum | ETL | 50000 | 16103 |
| FRID14-28-40801 | 120-277 | 28 | / | 0-10V Dim | 2800 | 4000 | 80 | / | 13.8" | White | 20 | PMMA+aluminum | ETL | 50000 | 16108 |
| FRD18-42-40801 | 120-277 | 42 | / | 0-10V Dim | 4400 | 4000 | 80 | / | 17.7" | White | 20 | PMMA+aluminum | ETL | 50000 | 16104 |
| FRID18-42-40801 | 120-277 | 42 | / | 0-10V Dim | 4600 | 4000 | 80 | / | 17.7" | White | 20 | PMMA+aluminum | ETL | 50000 | 16109 |
| FRD24-64-40801 | 120-277 | 64 | / | 0-10V Dim | 6600 | 4000 | 80 | / | 23.6" | White | 20 | PMMA+aluminum | ETL | 50000 | 16105 |
| FRID24-64-40801 | 120-277 | 64 | / | 0-10V Dim | 6300 | 4000 | 80 | / | 23.6" | White | 20 | PMMA+aluminum | ETL | 50000 | 16110 |
| FRD35-102-40801 | 120-277 | 102 | / | 0-10V Dim | 11000 | 4000 | 80 | / | 35.4" | White | 20 | PMMA+aluminum | ETL | 50000 | 16106 |
| FRID35-102-40801 | 120-277 | 102 | / | 0-10V Dim | 10250 | 4000 | 80 | / | 35.4" | White | 20 | PMMA+aluminum | ETL | 50000 | 16111 |
| FRD47-136-40801 | 120-277 | 136 | / | 0-10V Dim | 13600 | 4000 | 80 | / | 47.2" | White | 20 | PMMA+aluminum | ETL | 50000 | 16107 |
| FRID47-136-40801 | 120-277 | 136 | / | 0-10V Dim | 13600 | 4000 | 80 | / | 47.2" | White | 20 | PMMA+aluminum | ETL | 50000 | 16112 |
