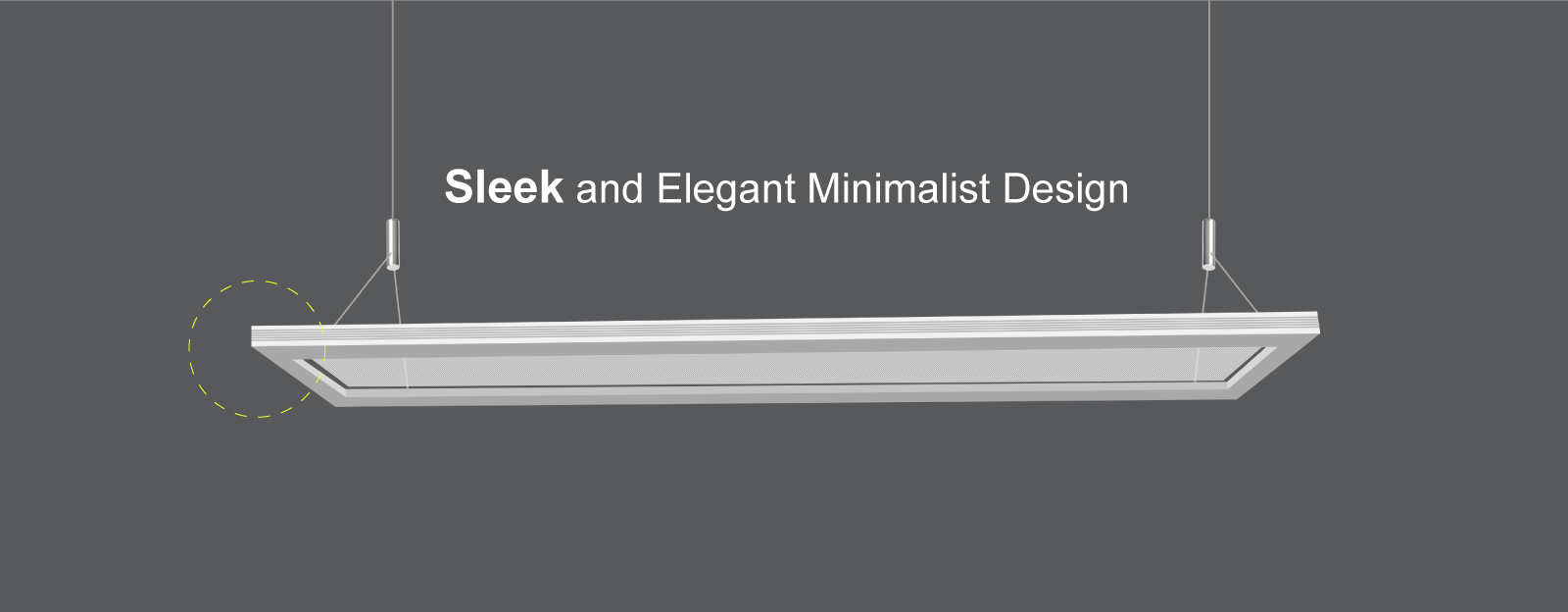

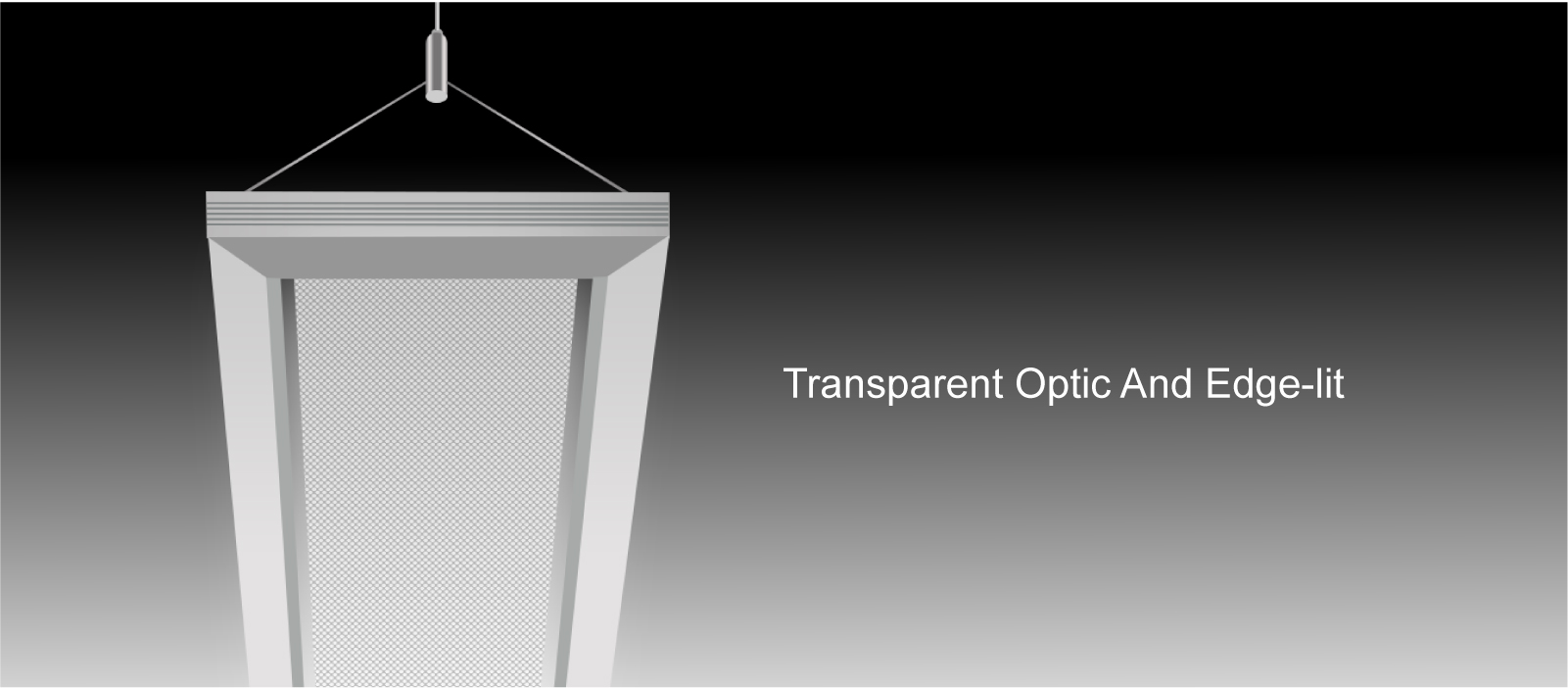

The Slab Light, with its exceptionally thin profile appears to float across the ceiling landscape. While on, it produces a perfectly even glow, and when off, it is nearly transparent. With LEDs hidden inside the frame, reducing glare, it is perfect for applications that include conference rooms, open offices, retail settings, or anywhere you want to make a statement.
| Spec Sheet | SLAB Light Spec Sheet |
|---|---|
| Manual | SLAB Light Manual |
| Tech Info | SLAB Light Tech Info |
| IES | SLAB Light IES |
| Revit file | SLAB Light Revit file |
| Model number | Voltage(V) | Wattage(W) | Replaces/Equiv.(MH) | Controls | Lumens(lm) | CCT(K) | CRI | Distribution | Dimension | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SLAB04-308-PM | 120-347 | 40 | / | 1-10V Dim | 4400 | 3000 | >80 | / | 47.24"x7.87"x0.94" | White | 20 | PMMA+Al | UL | 50000 | 15992 |
| SLAB04-358-PM | 120-347 | 40 | / | 1-10V Dim | 4600 | 3500 | >80 | / | 47.24"x7.87"x0.94" | White | 20 | PMMA+Al | UL | 50000 | 15993 |
| SLAB04-408-PM | 120-347 | 40 | / | 1-10V Dim | 4600 | 4000 | >80 | / | 47.24"x7.87"x0.94" | White | 20 | PMMA+Al | UL | 50000 | 15994 |
| SLAB04-SW8-PM | 120-347 | 40 | / | 1-10V Dim | 4600 | 3000/3500/4000 | >80 | / | 47.24"x7.87"x0.94" | White | 20 | PMMA+Al | UL | 50000 | 15995 |
| SLAB08-308-PM | 120-347 | 80 | / | 1-10V Dim | 9000 | 3000 | >80 | / | 94.48"x7.87"x0.94" | White | 20 | PMMA+Al | UL | 50000 | 15996 |
| SLAB08-358-PM | 120-347 | 80 | / | 1-10V Dim | 9200 | 3500 | >80 | / | 94.48"x7.87"x0.94" | White | 20 | PMMA+Al | UL | 50000 | 15997 |
| SLAB08-408-PM | 120-347 | 80 | / | 1-10V Dim | 9200 | 4000 | >80 | / | 94.48"x7.87"x0.94" | White | 20 | PMMA+Al | UL | 50000 | 15998 |
