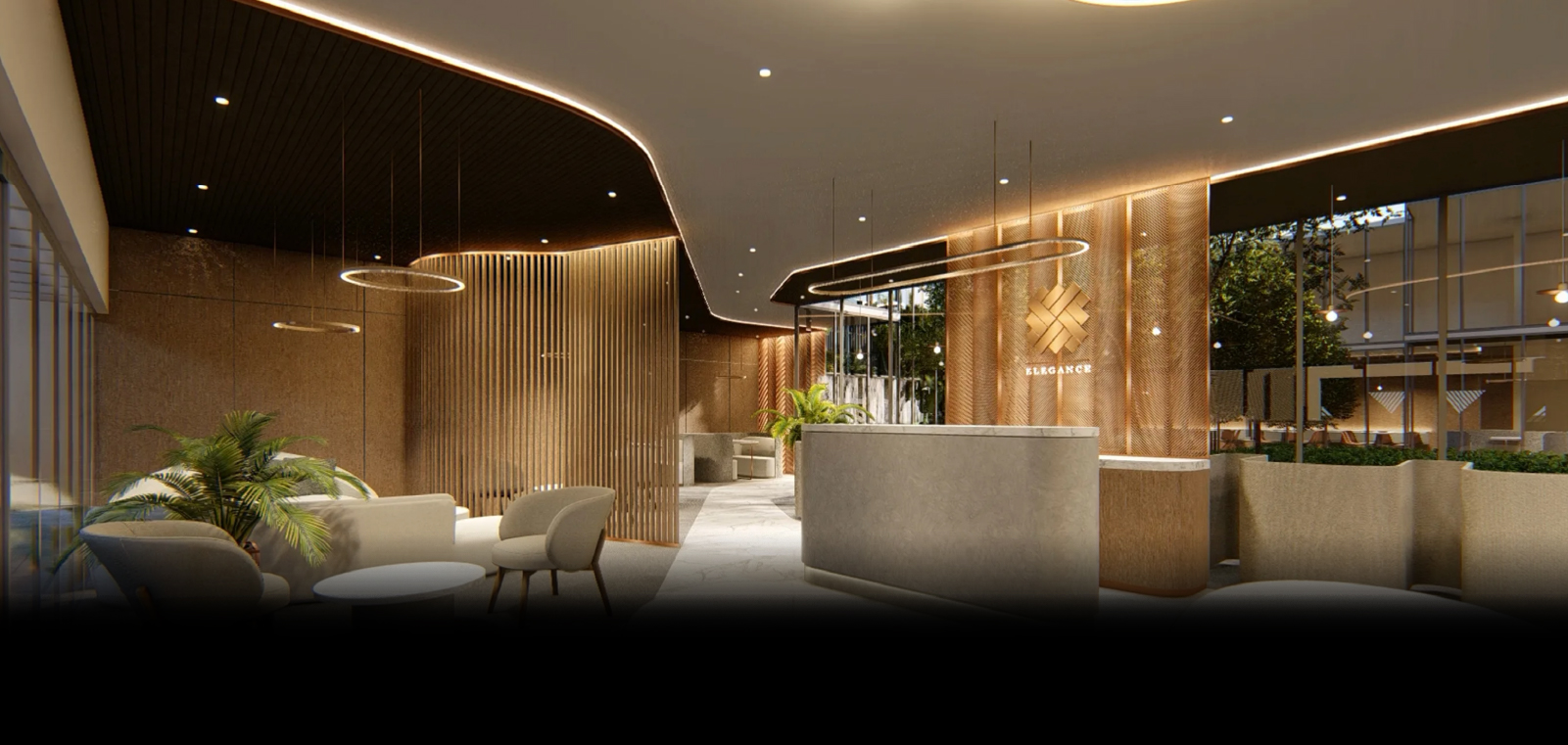

The Vicky Ring light is a unique ring style light with an LED light source illuminating downward. It is available in sizes ranging from 23.6”(dia.) up to 196.9”(dia.). This design features aluminum body construction and an optional acoustic system that maximizes surface area to absorb sound waves and improve harmony in the installed space, providing a perfect integration of lighting and acoustic control.
| Spec Sheet | (VRD) Vicky Ring Downward Light Spec Sheet |
|---|---|
| Instruction Manual | Vicky Ring VRD&VRUD Suspended in Segments Manual |
| Manual | (VRD) Vicky Ring Downward Light Manual |
| IES | (VRD) Vicky Ring Downward Light IES |
| Brochure | Vicky Ring Series Brochure |
| Tech Info | (VRD) Vicky Ring Downward Light Tech Info |
| Revit file | Vicky_Ring_Downward_ 50W_3000K_BR Revit file |
| Revit file | Vicky_Ring_Downward_100W_3000K_BK Revit file |
| Model number | Voltage(V) | Wattage(W) | Replaces/Equiv.(MH) | Controls | Lumens(lm) | CCT(K) | CRI | Distribution | Dimension | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VRD-4024-40901-ACPMK-WH | 120-277 | 40 | / | 0-10V Dim | 3400 | 4000 | 90 | / | 23.6"-23.6" | White | 20 | aluminum | ETL | 50000 | 16311 |
| VRD-5035-40901-ACPMK-WH | 120-277 | 50 | / | 0-10V Dim | 4250 | 4000 | 90 | / | 35.4"-35.4" | White | 20 | aluminum | ETL | 50000 | 16312 |
| VRD-8047-40901-ACPMK-WH | 120-277 | 80 | / | 0-10V Dim | 6800 | 4000 | 90 | / | 47.2"-47.2" | White | 20 | aluminum | ETL | 50000 | 16313 |
| VRD-10059-40901-ACPMK-WH | 120-277 | 100 | / | 0-10V Dim | 8500 | 4000 | 90 | / | 59.1"-59.1" | White | 20 | aluminum | ETL | 50000 | 16314 |
| VRD-12079-40901-ACPMK-WH | 120-277 | 120 | / | 0-10V Dim | 10200 | 4000 | 90 | / | 78.8"-78.8" | White | 20 | aluminum | ETL | 50000 | 16315 |
| VRD-200118-40901-ACPMK-WH | 120-277 | 200 | / | 0-10V Dim | 17000 | 4000 | 90 | / | 118.1"-118.1" | White | 20 | aluminum | ETL | 50000 | 16316 |
| VRD-400197-40901-ACPMK-WH | 120-277 | 400 | / | 0-10V Dim | 34000 | 4000 | 90 | / | 196.9"-196.9" | White | 20 | aluminum | ETL | 50000 | 16317 |
