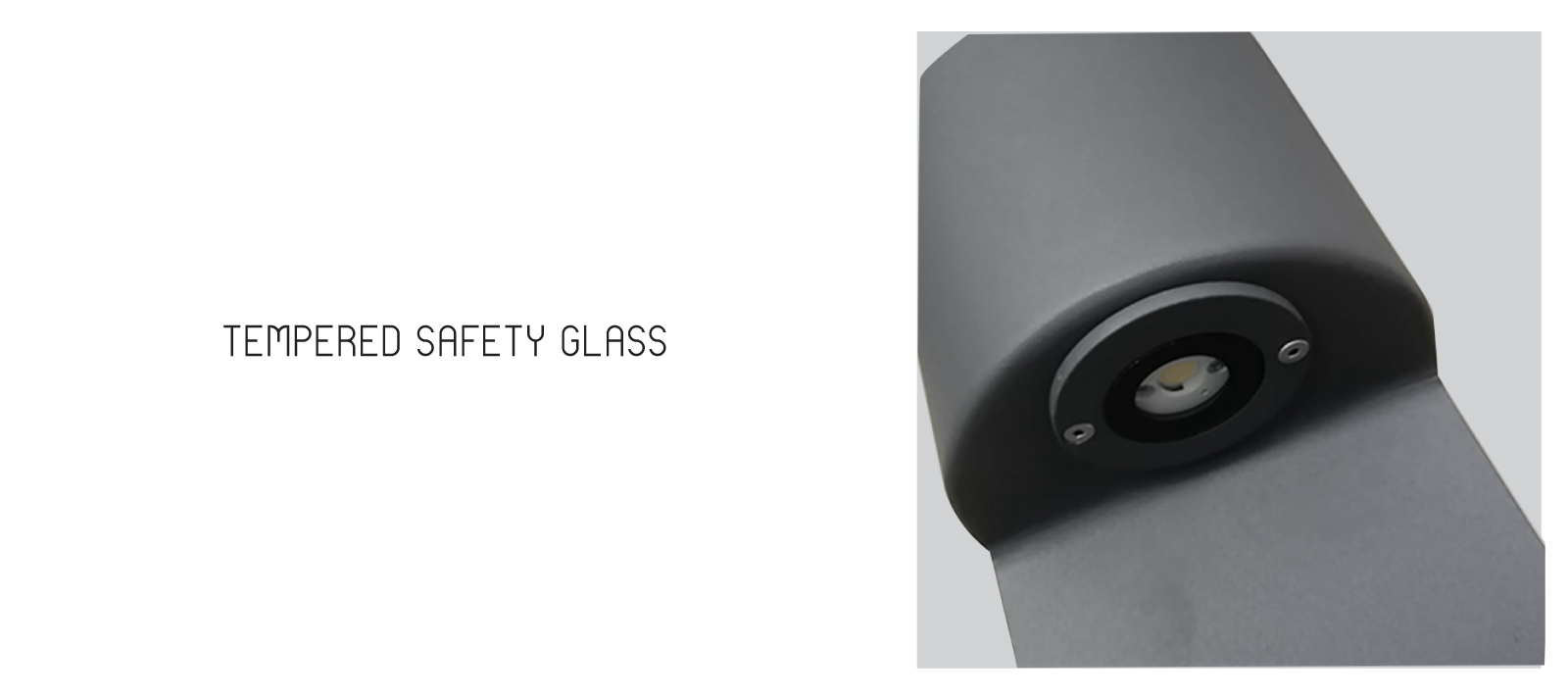

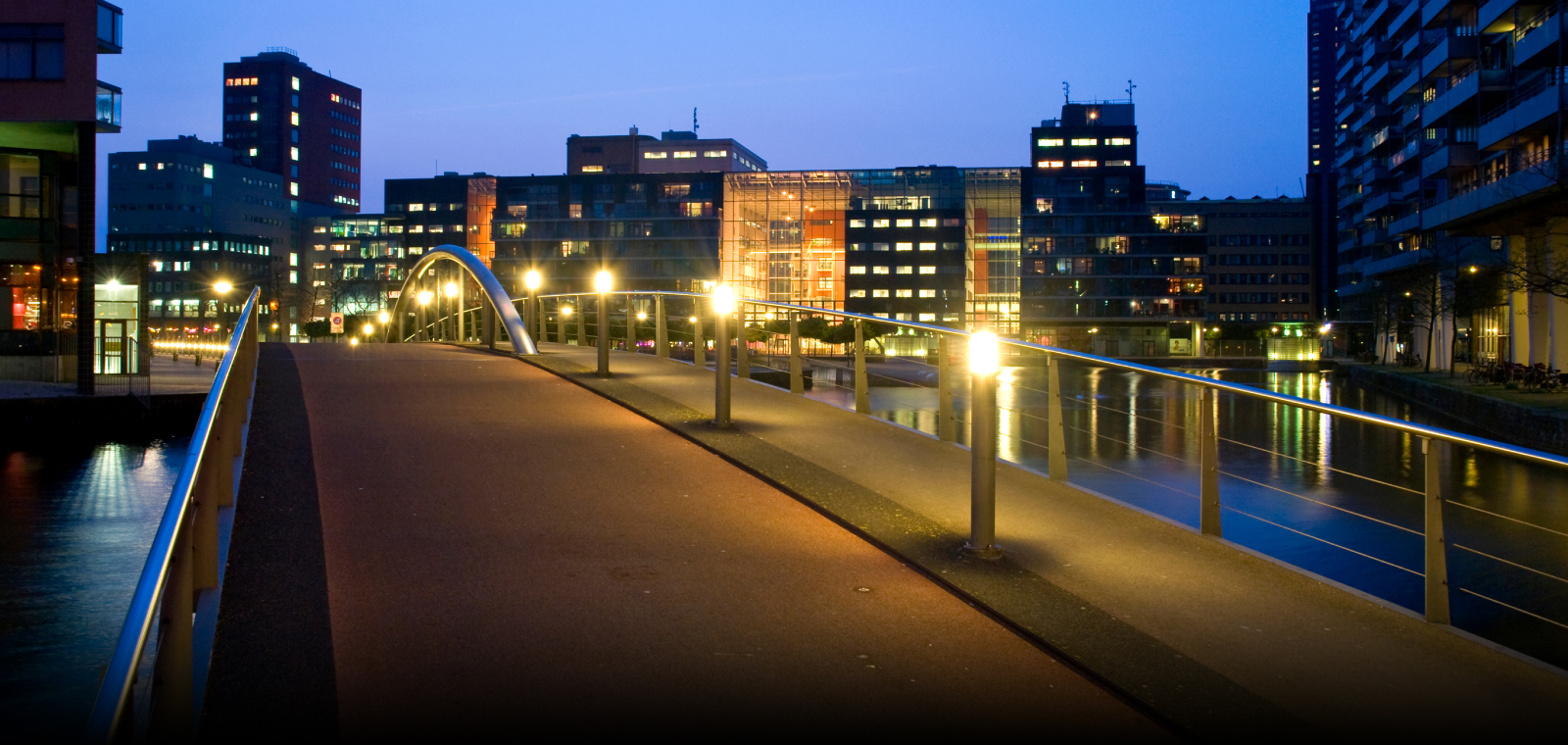

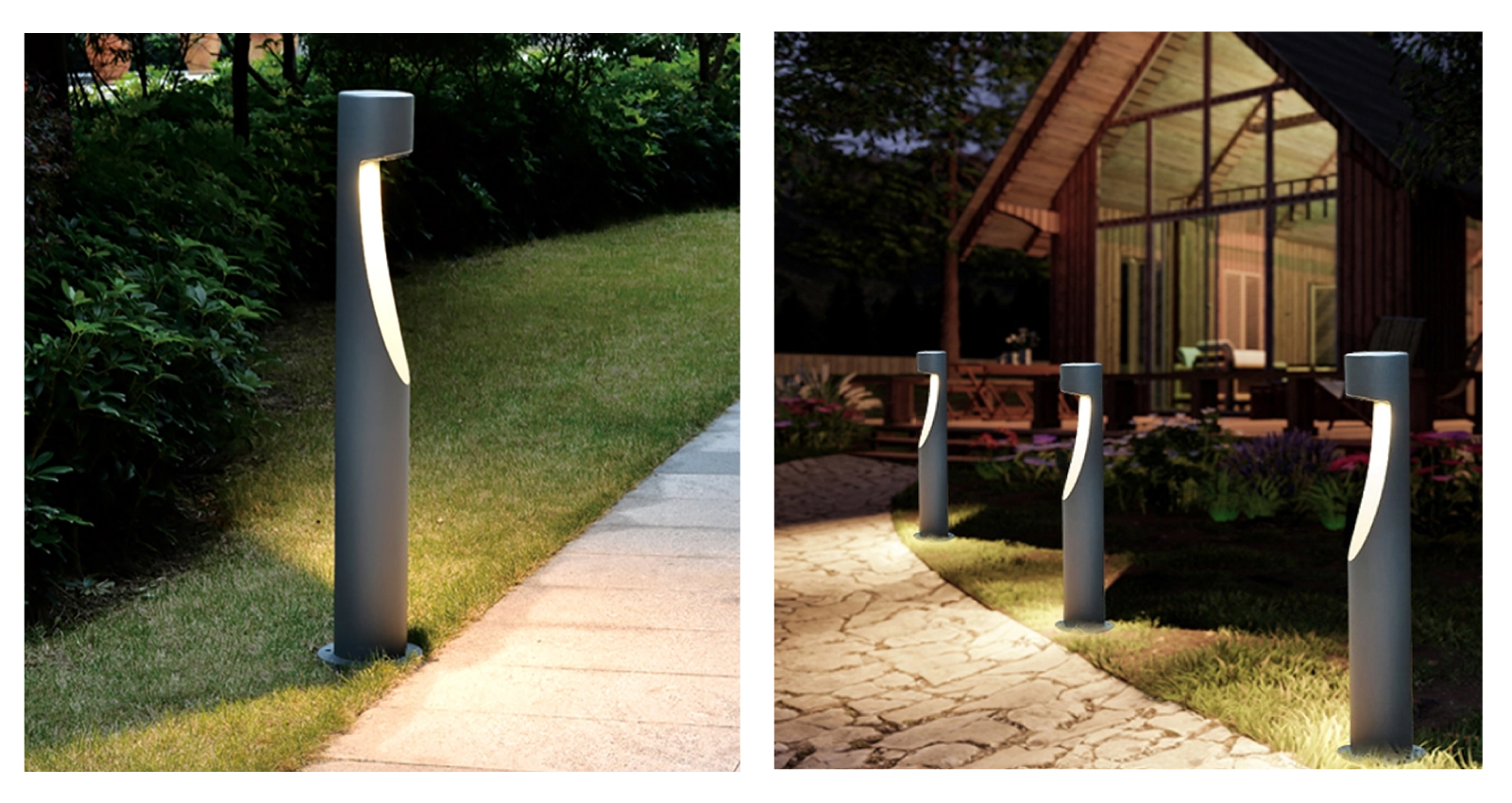

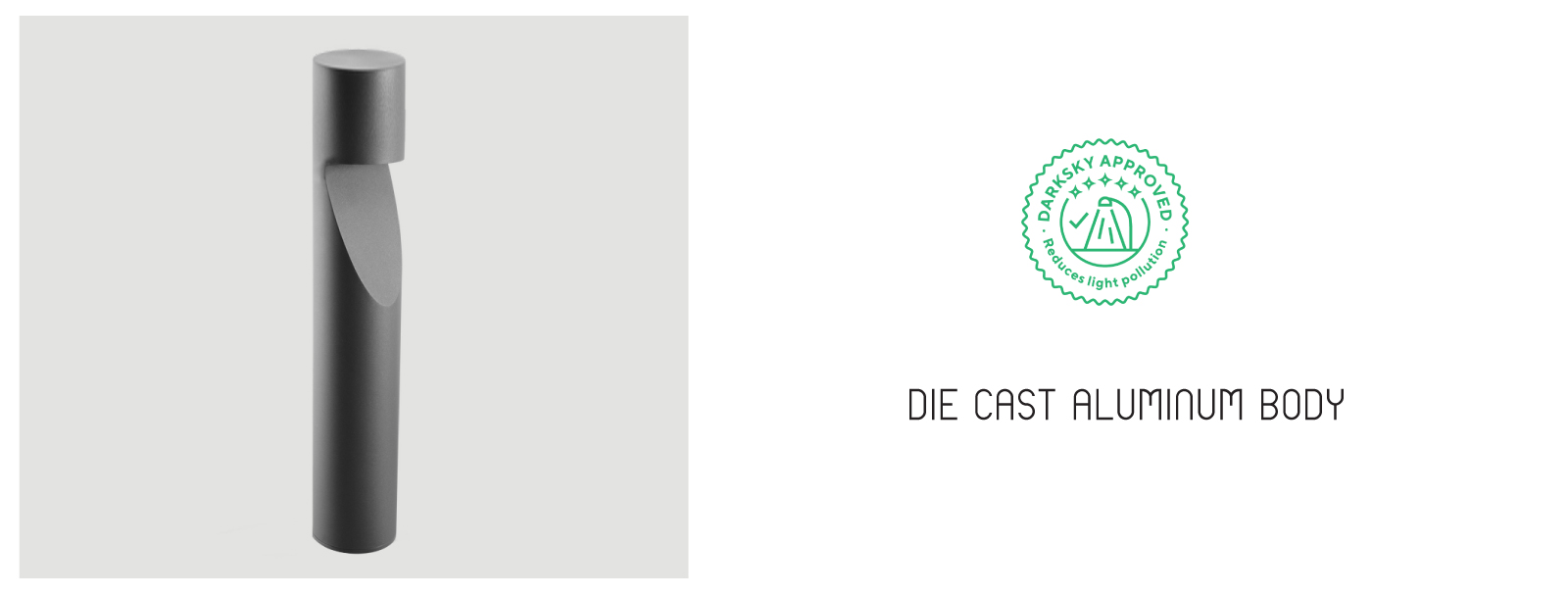

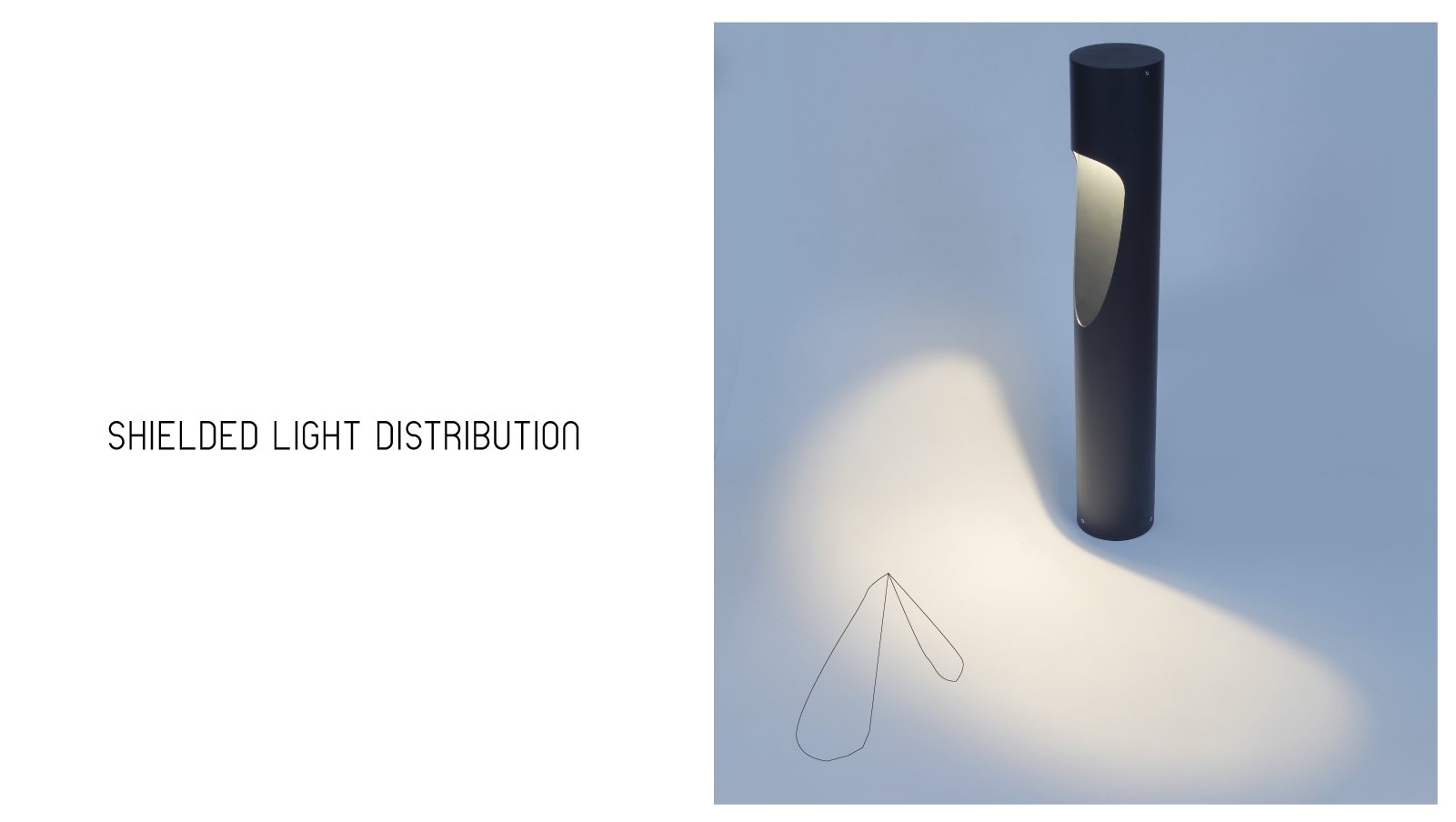

The contemporary CHESS led bollard has flexible light distribution for both pathway lighting and discrete facade illumination. This bollard has UV powder coated die cast high quality aluminum body, tempered safety glass, moulded silicone gasket and stainless steel screws. This bollard is an excellent choice for walkways, entrances, promenades, plazas, courtyards, driveways, bridges, and landscaped areas.
| Spec Sheet | CHESS LED Bollard Spec Sheet |
|---|---|
| IES | CHESS LED Bollard IES |
| Brochure | CHESS LED Bollard Brochure |
| Tech Info | CHESS LED Bollard Tech Info |
| Revit file | Please email info@abovealllighting.com for Revit file |

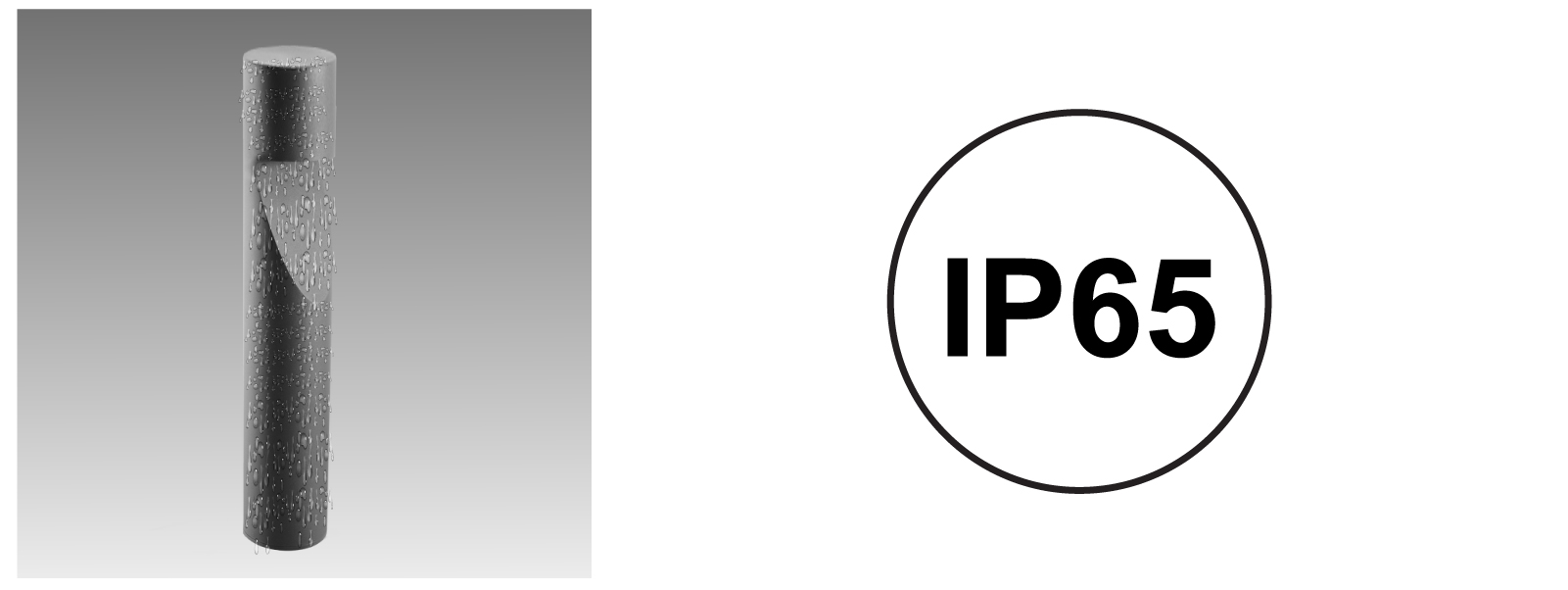

| Model number | Voltage(V) | Wattage(W) | Replaces/Equiv.(MH) | Dimming / Control | Lumens(lm) | CCT(K) | CRI | Distribution | Dimension(D"-H") | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CSBD40H-10301-BK | 120-277 | 10W | 50W | Available | 340 | 3000K | 80 | / | 4.72"-39.4" | Black | 65 | Aluminium | ETL | 50000 | 16850 |
| CSBD40H-10401-BK | 120-277 | 10W | 50W | Available | 340 | 4000K | 80 | / | 4.72"-39.4" | Black | 65 | Aluminium | ETL | 50000 | 16851 |
| CSBD40H-20301-BK | 120-277 | 20W | 100W | Available | 640 | 3000K | 80 | / | 4.72"-39.4" | Black | 65 | Aluminium | ETL | 50000 | 17083 |
| CSBD40H-20401-BK | 120-277 | 20W | 100W | Available | 640 | 4000K | 80 | / | 4.72"-39.4" | Black | 65 | Aluminium | ETL | 50000 | 17084 |
