PRODUCT Outdoor LED Bollards

LED Bollards

Louvers Round LED Bollard

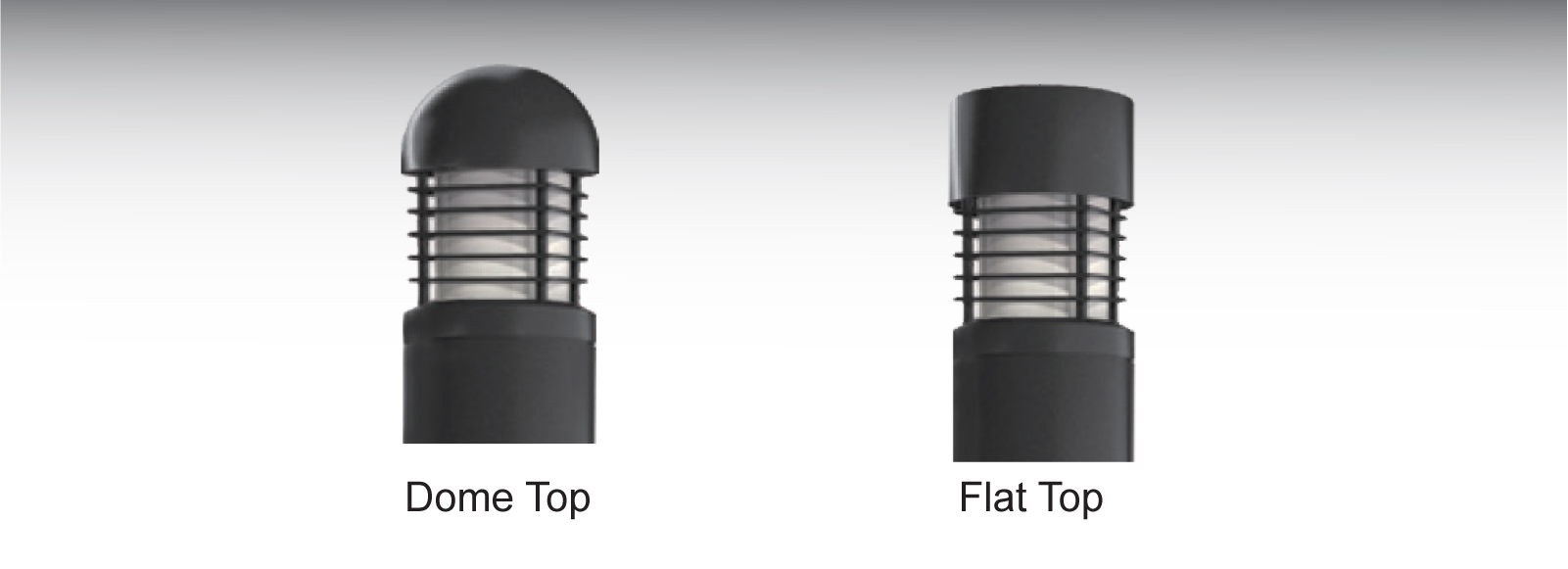

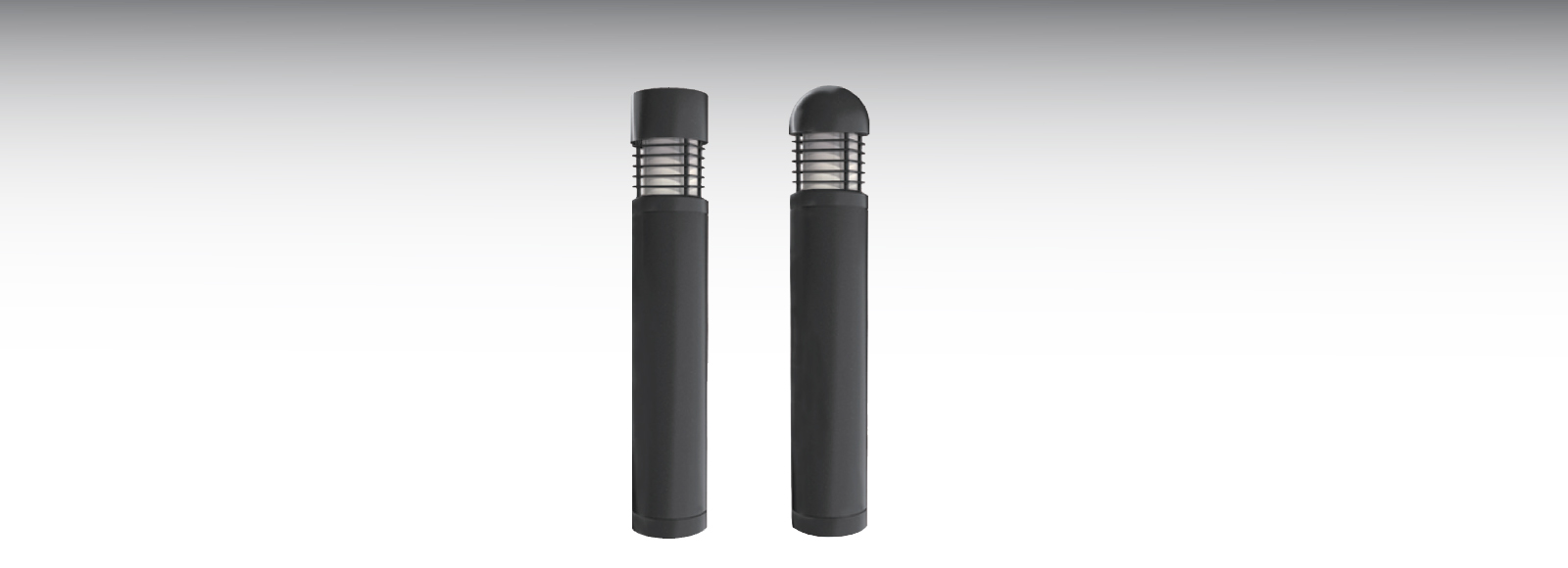

The Louvers round bollard features stacked louver and a rounded, cylindrical design. It offers dome and flat tops in 32″ and 42″ heights. This bollard is an excell ent choice for walkways, entrances, promenades, plazas, courtyards, driveways, bridges, and landscaped areas.

Document Library

LOUVERS ROUND-03.jpg
LOUVERS ROUND-02.jpg
LOUVERS ROUND-04.jpg
Selectable Square Bollard201111-04.jpg

Technical Information

Model number Voltage(V)Wattage(W)Replaces/Equiv.(MH)ControlsLumens(lm)CCT(K)CRIDistributionDimension W/O mounting bracket(D"-H")Finish/ColorIP RatingMaterialComplianceAverage life based on 104F(HRS)Order number
LDB42H24301-V 120-277 24 75W N/A 1100 3000 70 V 7.9''-42.1'' Bronze 65 Aluminum UL 50000 15777
LDB42H24401-V 120-277 24 75W N/A 1200 4000 70 V 7.9''-42.1'' Bronze 65 Aluminum UL 50000 15778
LDB42H24501-V 120-277 24 75W N/A 1200 5000 70 V 7.9''-42.1'' Bronze 65 Aluminum UL 50000 15779
LFB42H24301-V 120-277 24 75W N/A 1100 3000 70 V 7.9''-42.1'' Bronze 65 Aluminum UL 50000 15780
LFB42H24401-V 120-277 24 75W N/A 1200 4000 70 V 7.9''-42.1'' Bronze 65 Aluminum UL 50000 15781
LFB42H24501-V 120-277 24 75W N/A 1200 5000 70 V 7.9''-42.1'' Bronze 65 Aluminum UL 50000 15782
