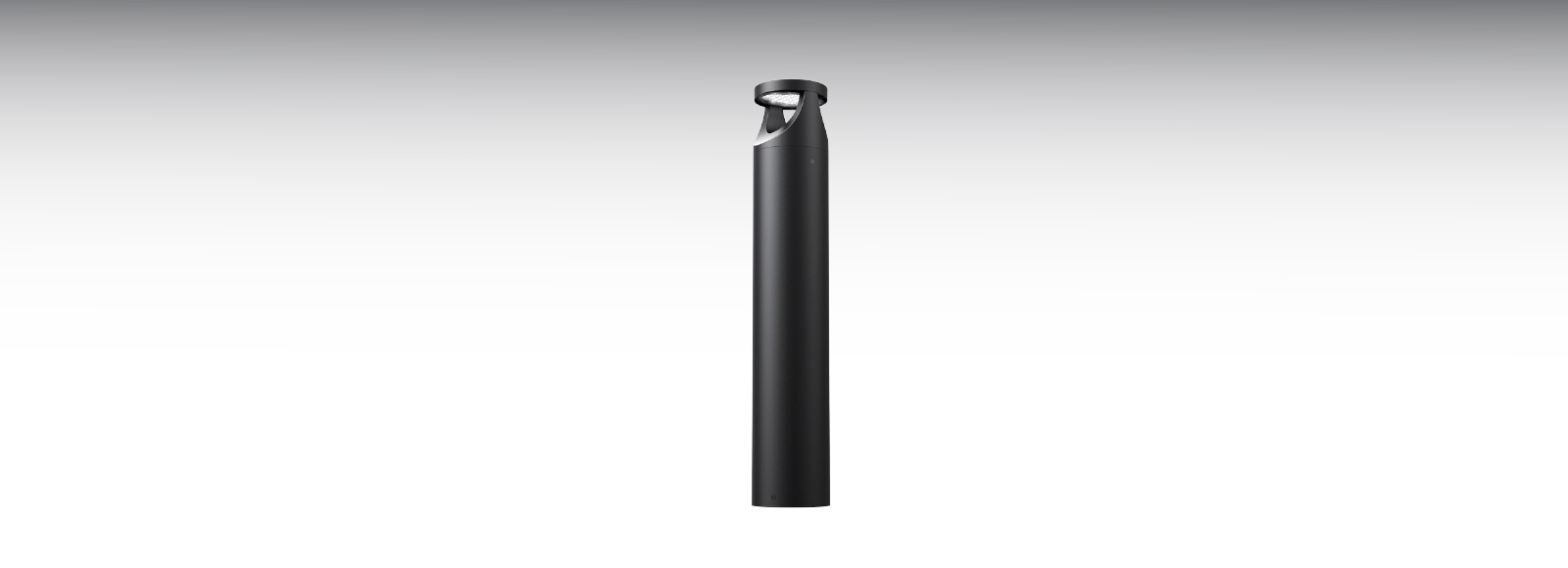

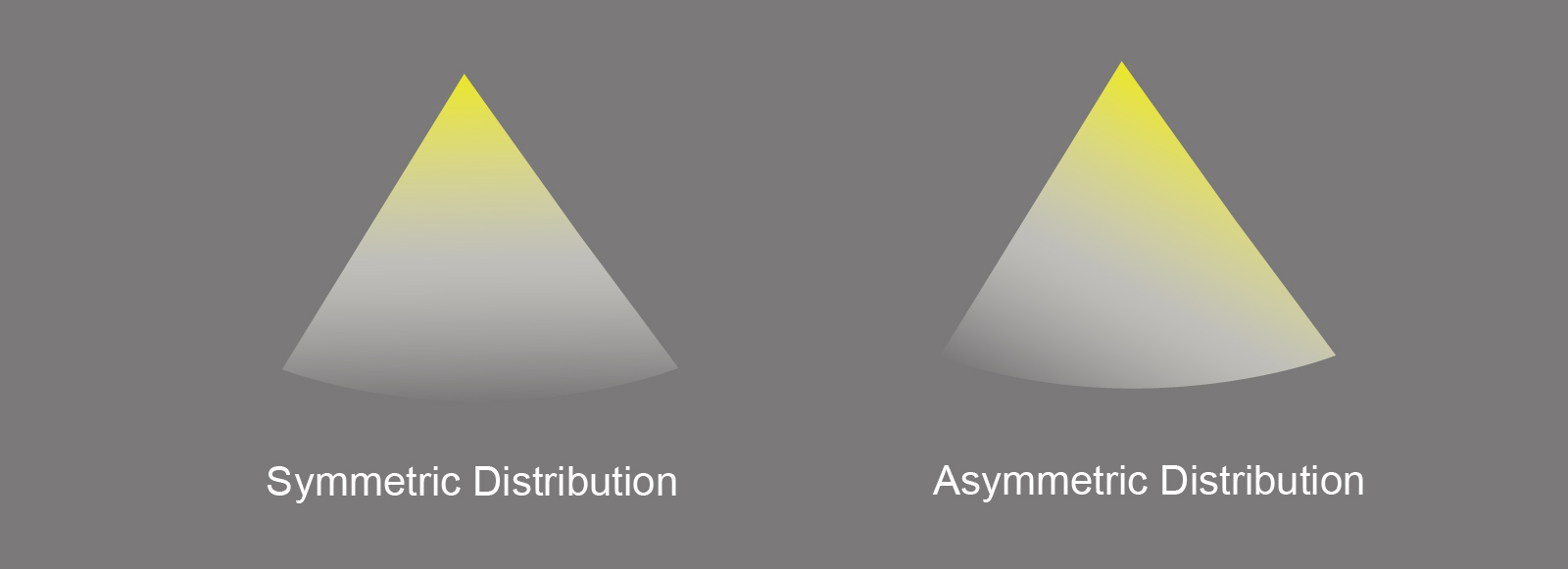

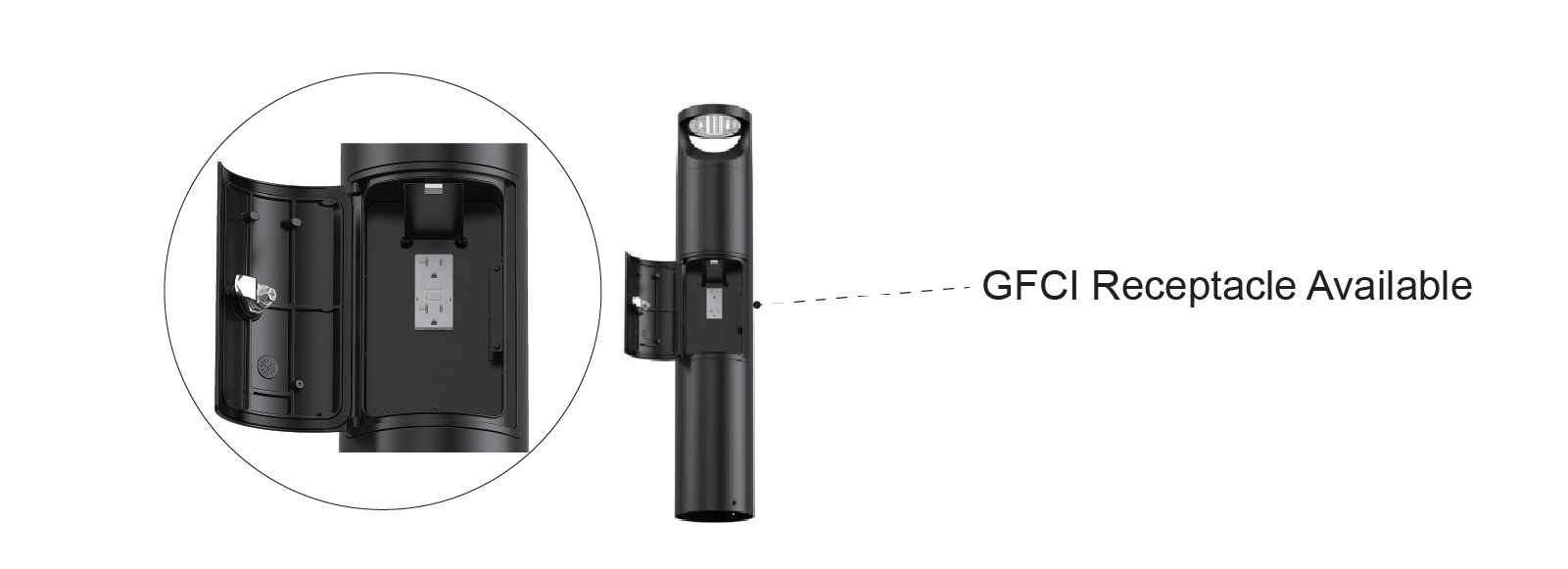

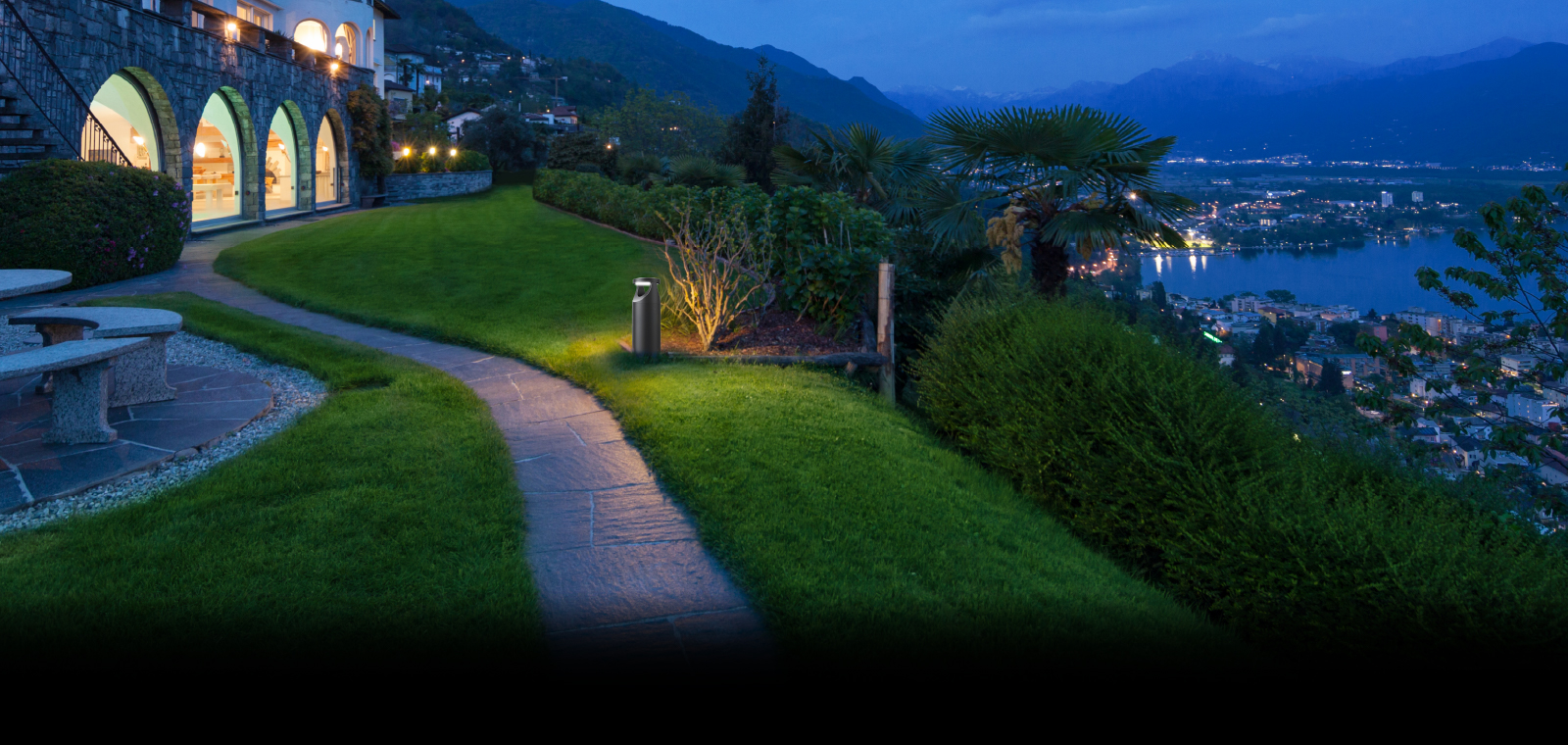

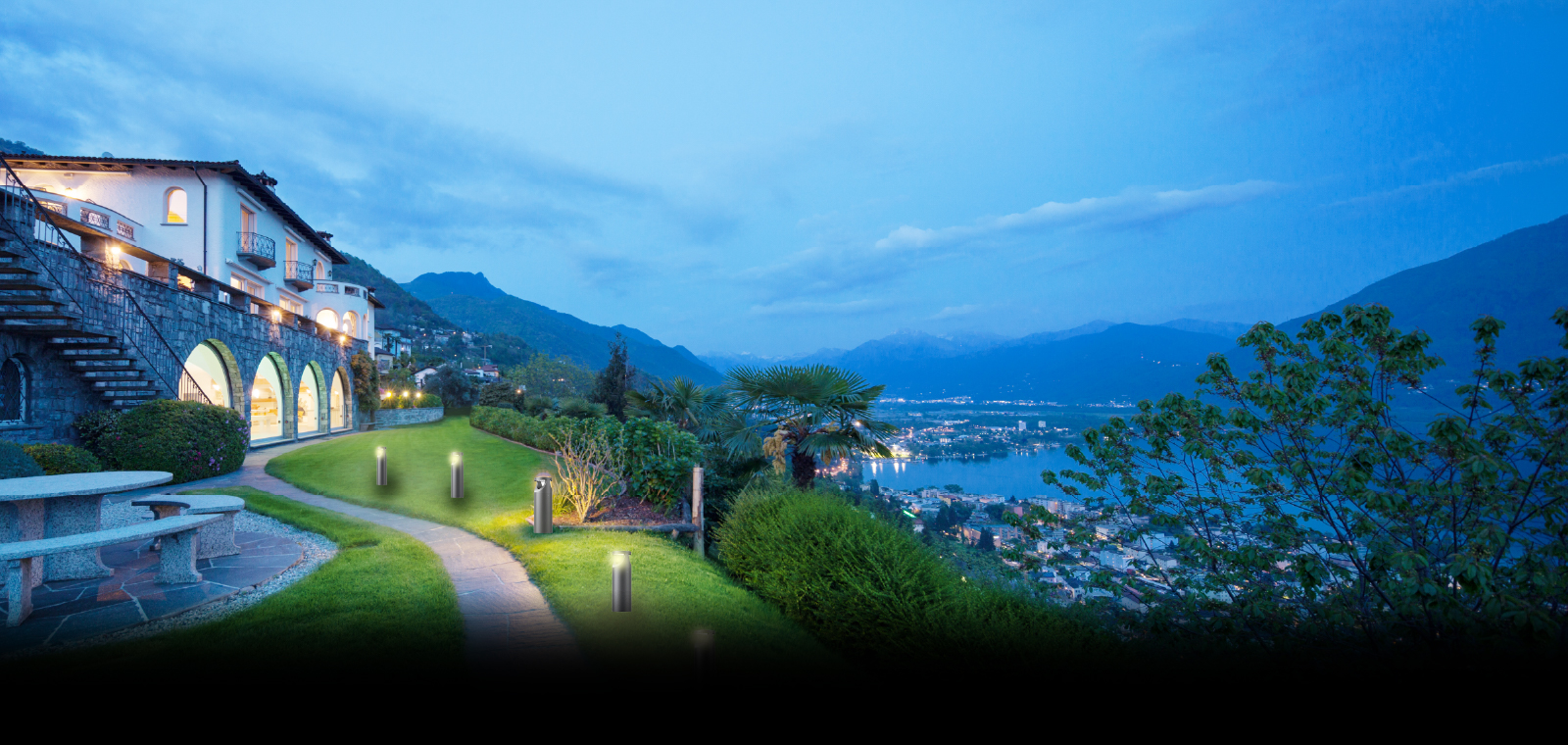

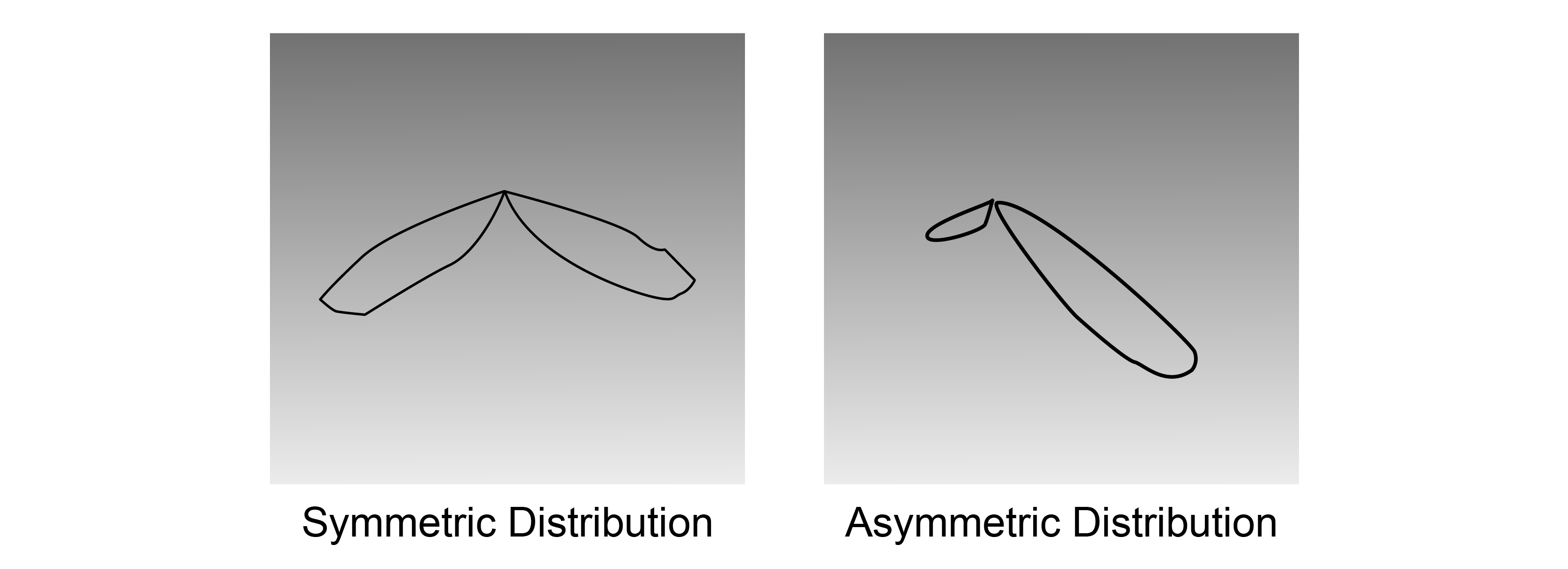

The Versatile Series round bollard features a simple and sleek design. It offers symmetric and asymmetric distributions in 20″ and 35″ heights . House side shield is available. GFCI outlet is available. Emergency Battery Back-up and Microwave Motion Sensor are available. IP 65 rated for wet location. This bollard is an excellent choice for walkways, entrances, promenades, plazas, courtyards, driveways, bridges, and landscaped areas.
| Spec Sheet | Versatile Series LED Bollard LED Bollard Spec Sheet |
|---|---|
| Instruction Manual | Versatile Series LED Bollard Instruction Manual |
| IES Files | Versatile Series LED Bollard LED Bollard IES Files |
| Tech Info | Versatile Series LED Bollard Tech Info |
| Revit file | Versatile Series LED Bollard Revit file |
| Model number | Voltage(V) | Wattage(W) | Replaces/Equiv.(MH) | Controls | Lumens(lm) | CCT(K) | CRI | Distribution | Dimension | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VBD14301-V | 120-277 | 14 | 75W | N/A | 1220 | 3000 | 70 | V | Φ6.5" | Bronze | 65 | Aluminum | ETL | 50000 | 15816 |
| VBD14401-V | 120-277 | 14 | 75W | N/A | 1220 | 4000 | 70 | V | Φ6.5" | Bronze | 65 | Aluminum | ETL | 50000 | 15817 |
| VBD14501-V | 120-277 | 14 | 75W | N/A | 1220 | 5000 | 70 | V | Φ6.5" | Bronze | 65 | Aluminum | ETL | 50000 | 15818 |
| VBD24301-V | 120-277 | 24 | 75W | N/A | 2090 | 3000 | 70 | V | Φ6.5" | Bronze | 65 | Aluminum | ETL | 50000 | 15810 |
| VBD24401-V | 120-277 | 24 | 75W | N/A | 2090 | 4000 | 70 | V | Φ6.5" | Bronze | 65 | Aluminum | ETL | 50000 | 15811 |
| VBD24501-V | 120-277 | 24 | 75W | N/A | 2090 | 5000 | 70 | V | Φ6.5" | Bronze | 65 | Aluminum | ETL | 50000 | 15812 |
