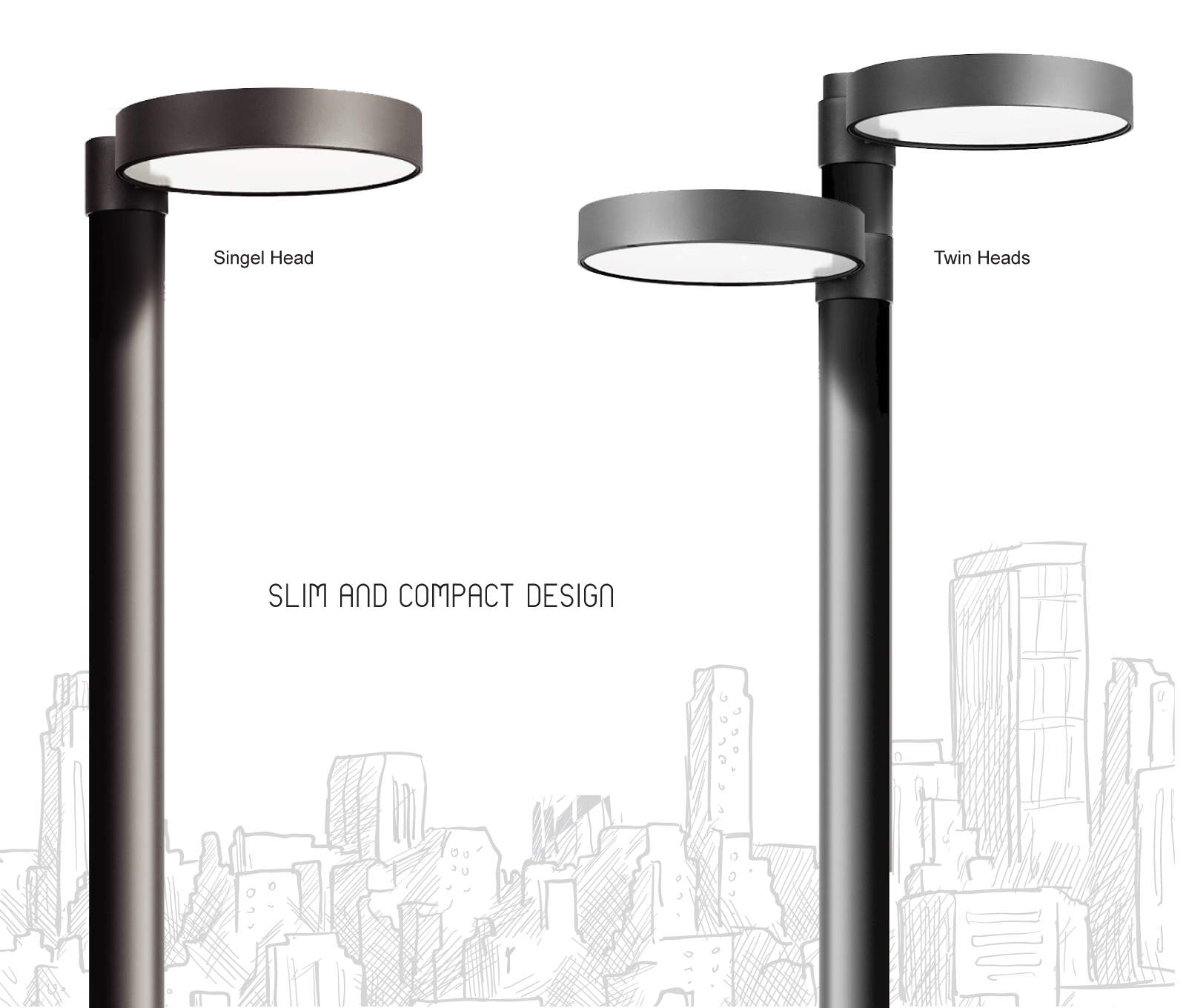

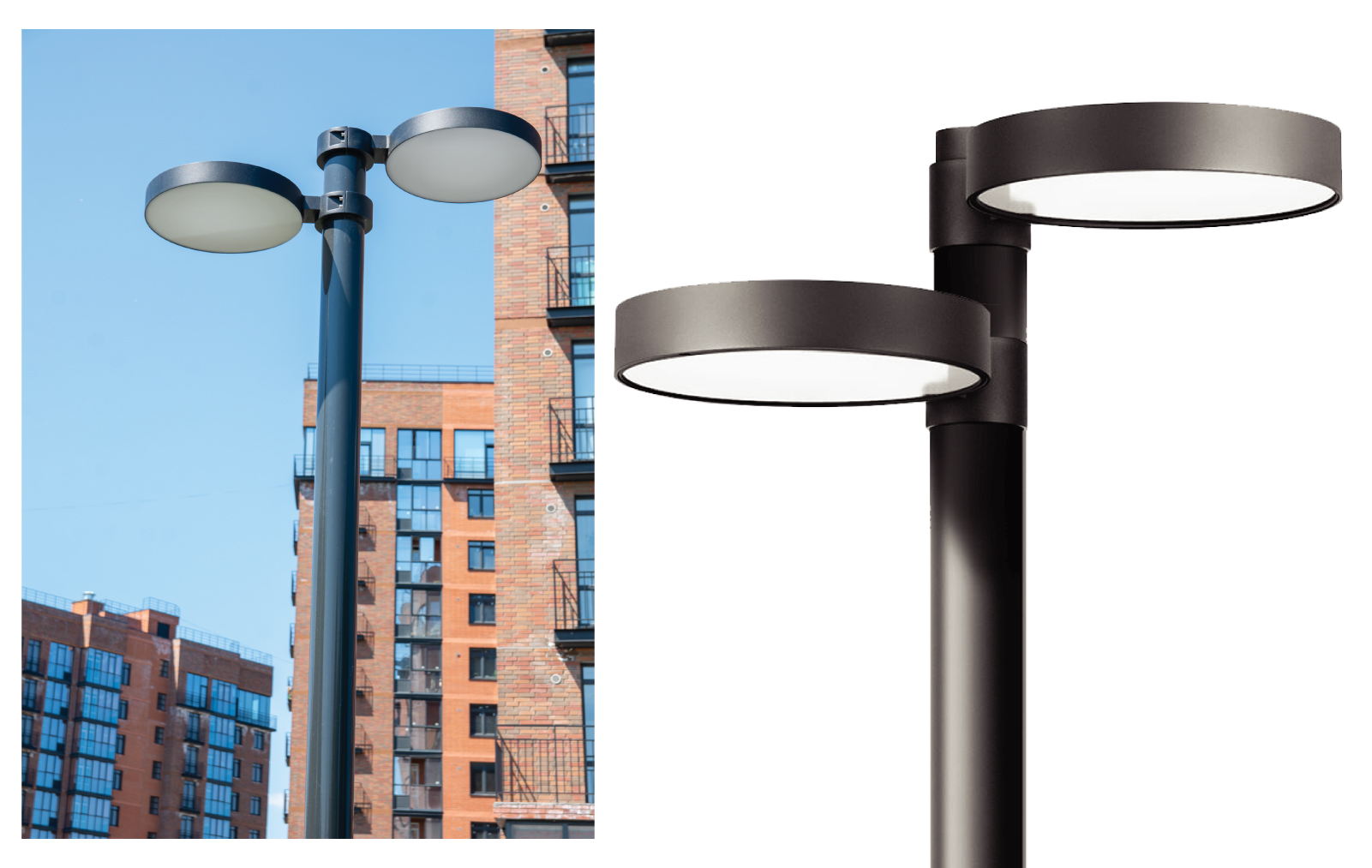

The Venus led post top has elegant, slim and compact design. It brings architectural style to any area or site, impacting pedestrian-scale for improved comfort and security. Singe head, twins heads or even more heads can be mounted on the same pole with pole binding mount bracket.
| Spec Sheet | Venus LED Post Top Spec Sheet |
|---|---|
| IES | Venus LED Post Top IES |
| Instruction Manual | Venus LED Post Top Manual |
| Tech Info | Venus LED Post Top Tech Info |
| Revit file | Venus LED Post Top Revit file |
| Model number | Voltage(V) | Wattage (W) | Replaces/Equiv.(MH) | Dimming/Control | Lumens(lm) | CCT(K) | CRI | Distribution | Dimension(W"-W"-H") | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VSPT25301-PBM-V-BK | 120-277 | 25W | 100W | Available | 1900 | 3000K | 70 | V | 22.64"-15.75"-2.56" | Black | 65 | aluminum | ETL | 50000 | 17718 |
| VSPT25401-PBM-V-BK | 120-277 | 25W | 100W | Available | 1900 | 4000K | 70 | V | 22.64"-15.75"-2.56" | Black | 65 | aluminum | ETL | 50000 | 17719 |
| VSPT25501-PBM-V-BK | 120-277 | 25W | 100W | Available | 1900 | 5000K | 70 | V | 22.64"-15.75"-2.56" | Black | 65 | aluminum | ETL | 50000 | 17720 |
| VSPT40301-PBM-V-BK | 120-277 | 40W | 100W | Available | 3350 | 3000K | 70 | V | 22.64"-15.75"-2.56" | Black | 65 | aluminum | ETL | 50000 | 17721 |
| VSPT40401-PBM-V-BK | 120-277 | 40W | 100W | Available | 3350 | 4000K | 70 | V | 22.64"-15.75"-2.56" | Black | 65 | aluminum | ETL | 50000 | 17722 |
| VSPT40501-PBM-V-BK | 120-277 | 40W | 100W | Available | 3350 | 5000K | 70 | V | 22.64"-15.75"-2.56" | Black | 65 | aluminum | ETL | 50000 | 17723 |
| VSPT60301-PBM-V-BK | 120-277 | 60W | 250W | Available | 4560 | 3000K | 70 | V | 22.64"-15.75"-2.56" | Black | 65 | aluminum | ETL | 50000 | 17724 |
| VSPT60401-PBM-V-BK | 120-277 | 60W | 250W | Available | 4560 | 4000K | 70 | V | 22.64"-15.75"-2.56" | Black | 65 | aluminum | ETL | 50000 | 17725 |
| VSPT60501-PBM-V-BK | 120-277 | 60W | 250W | Available | 4560 | 5000K | 70 | V | 22.64"-15.75"-2.56" | Black | 65 | aluminum | ETL | 50000 | 17726 |
