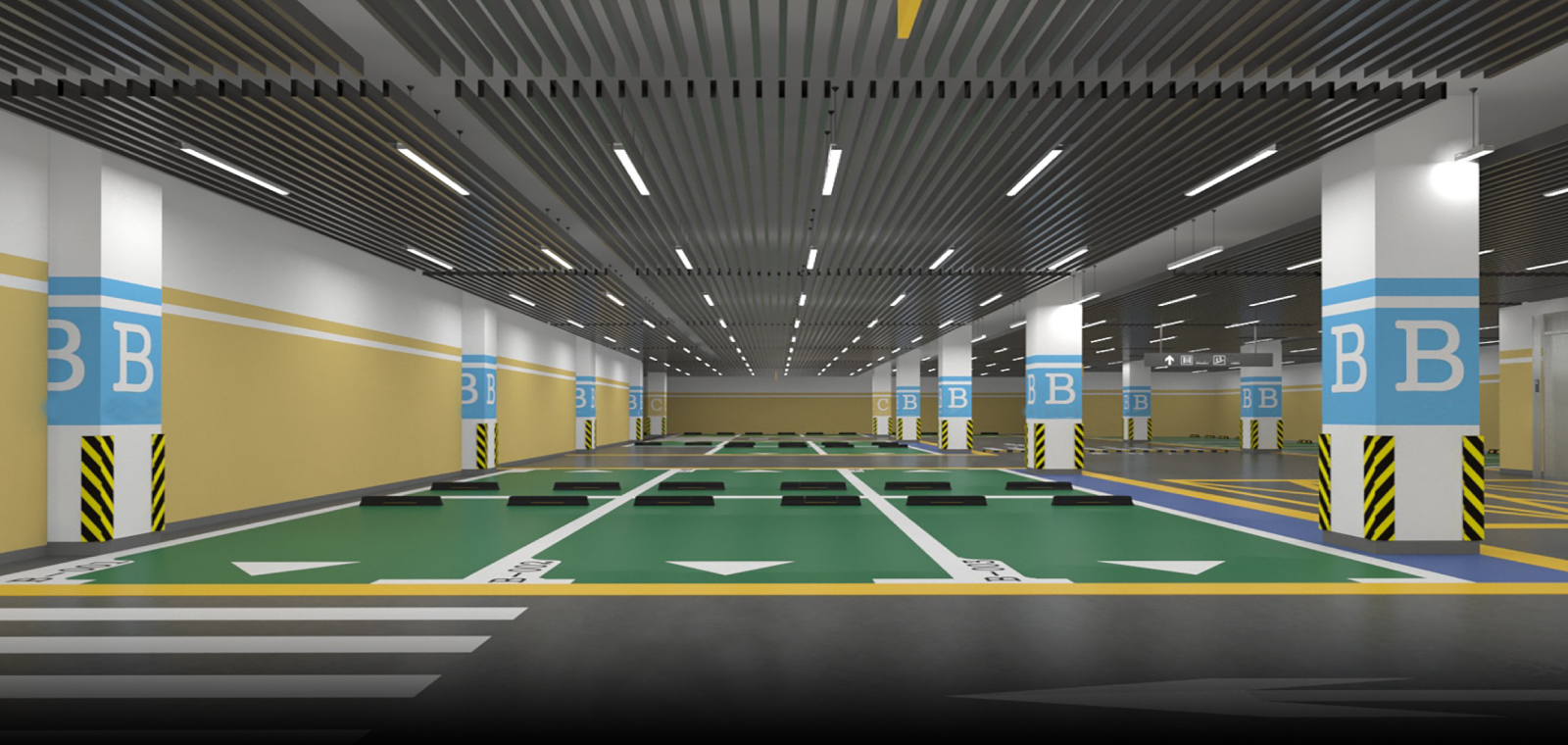

ABOVE ALL lighting’s LED strip have a traditional design with diffuser lens.Optional accessories include, EBU and motion sensors. It can be used in warehouse, office, garage, display shop and other commercial applications.
| Spec Sheet | Standard Strip Spec Sheet |
|---|---|
| Instruction Manual | Standard Strip Manual |
| IES Files | Standard Strip IES Files |
| Motion Sensor | Microwave Motion Sensor Model No.:AMS-H403VRC Instructions Manual |
| Tech Info | Standard Strip Tech Info |
| Revit file | Please email info@abovealllighting.com for Revit file |
| Model number | Voltage(V) | Wattage(W) | Replaces/Equiv.(FL) | Dimming / Control | Lumens(lm) | CCT(K) | CRI | Distribution | Dimension(L”-W”-H”) | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STR12D40LED401S | 120-277 | 40 | 2 lamp-32W-T8 | Available | 4400 | 4000 | 80 | 195° | 45.7''x4.53''x3.54'' | white | 20 | Steel+PC | ETL | 50000 | 11520 |
| STR12D40LED501S | 120-277 | 40 | 2 lamp-32W-T8 | Available | 4400 | 5000 | 80 | 195° | 45.7''x4.53''x3.54'' | white | 20 | Steel+PC | ETL | 50000 | 11522 |
| STR24D85LED401S | 120-277 | 85 | 4 lamp-32W-T8 | Available | 9350 | 4000 | 80 | 195° | 90.75''x4.53''x3.54'' | white | 20 | Steel+PC | ETL | 50000 | 11524 |
| STR24D85LED501S | 120-277 | 85 | 4 lamp-32W-T8 | Available | 9350 | 5000 | 80 | 195° | 90.75''x4.53''x3.54'' | white | 20 | Steel+PC | ETL | 50000 | 11526 |
