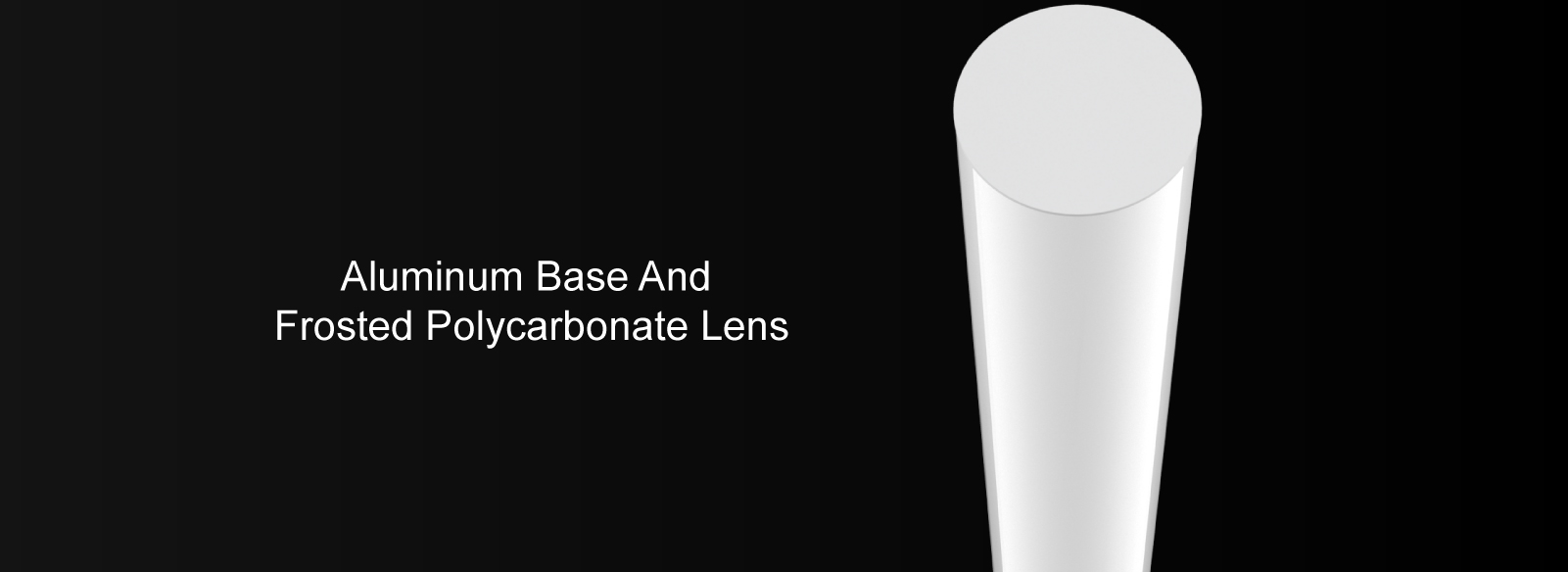

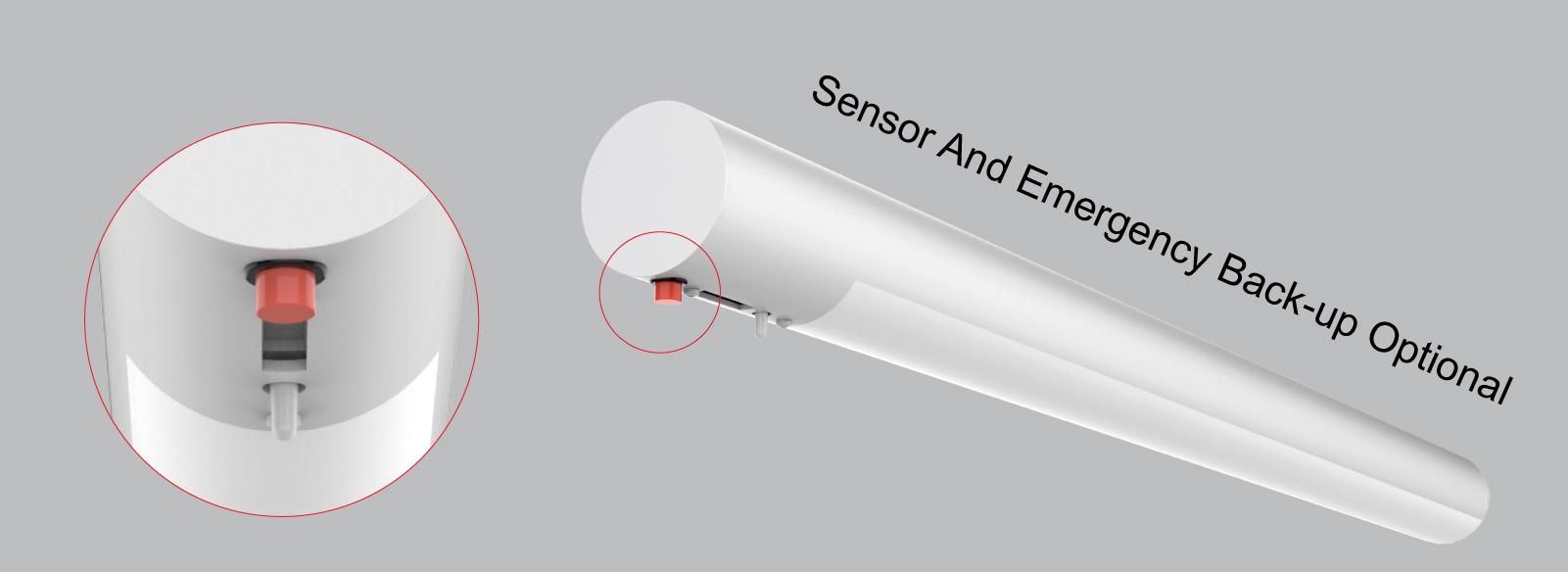

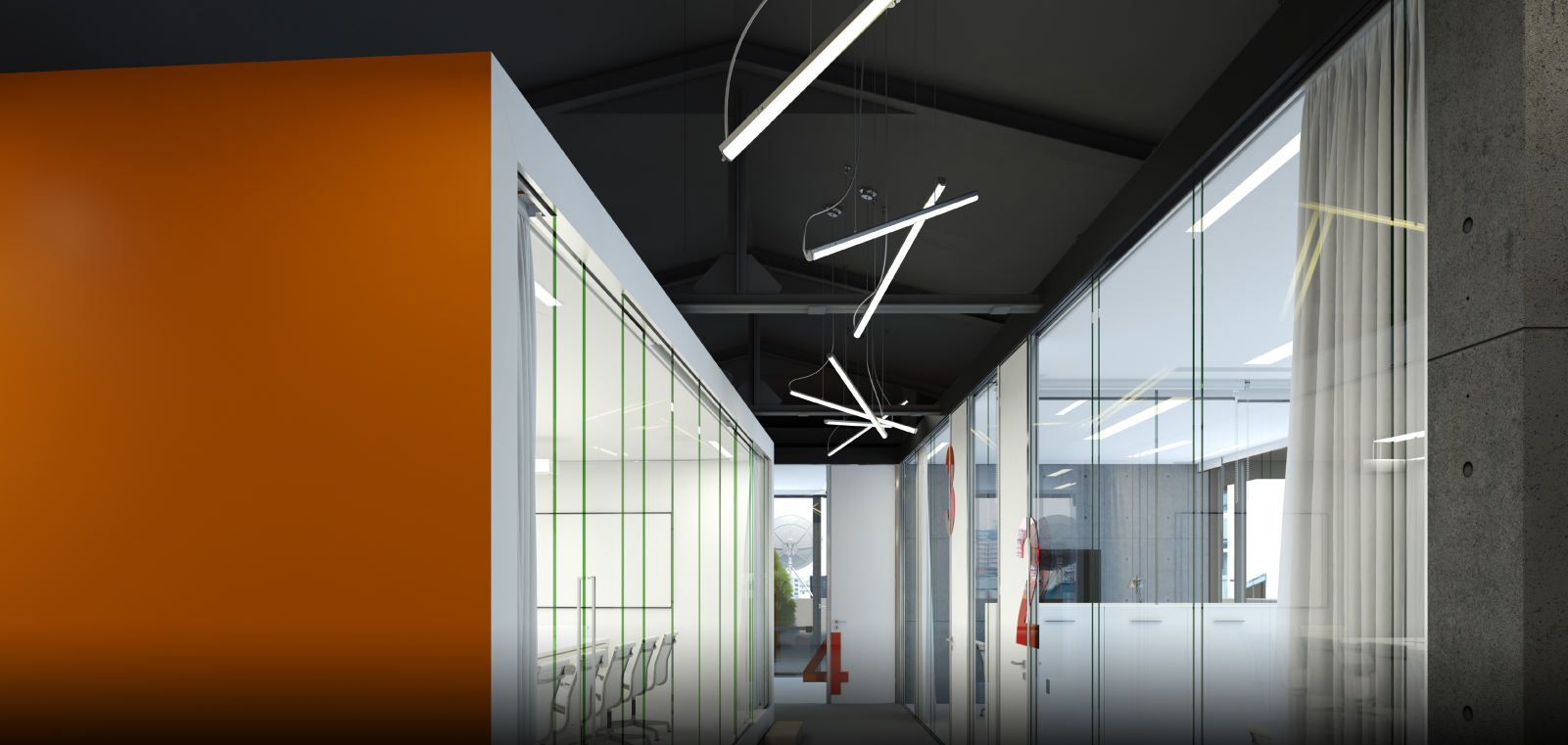

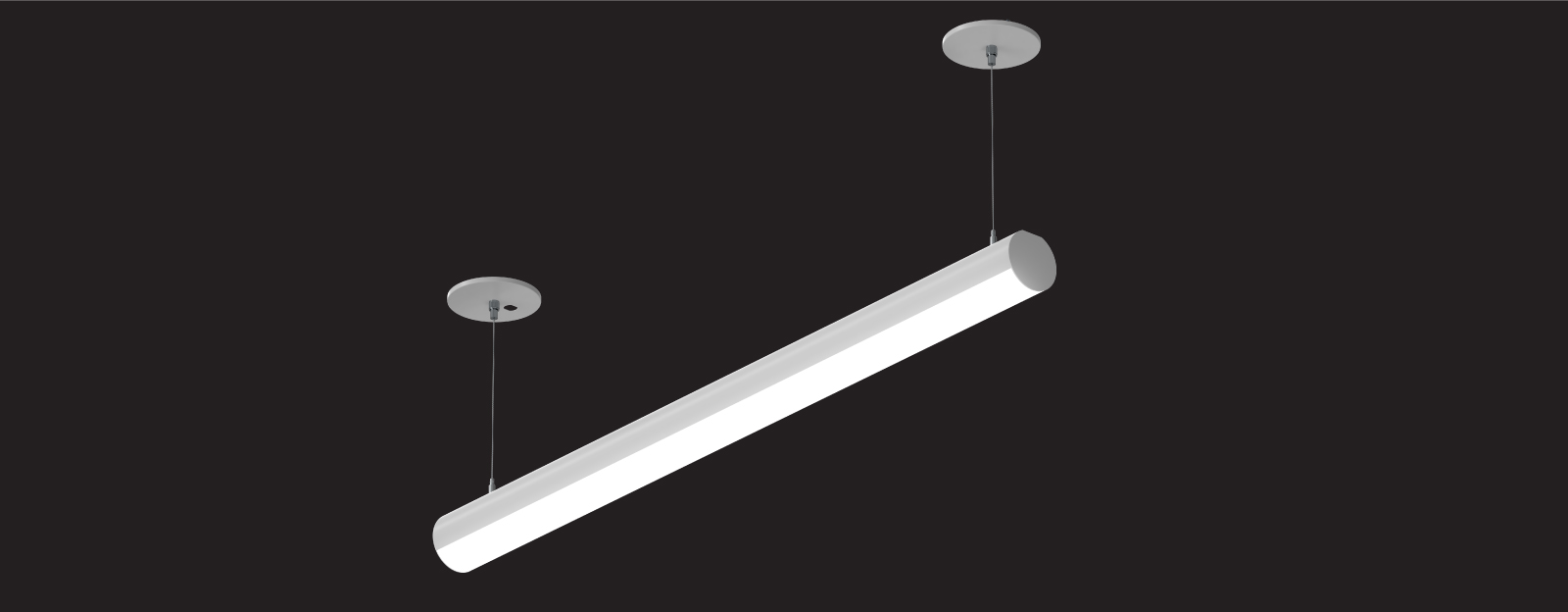

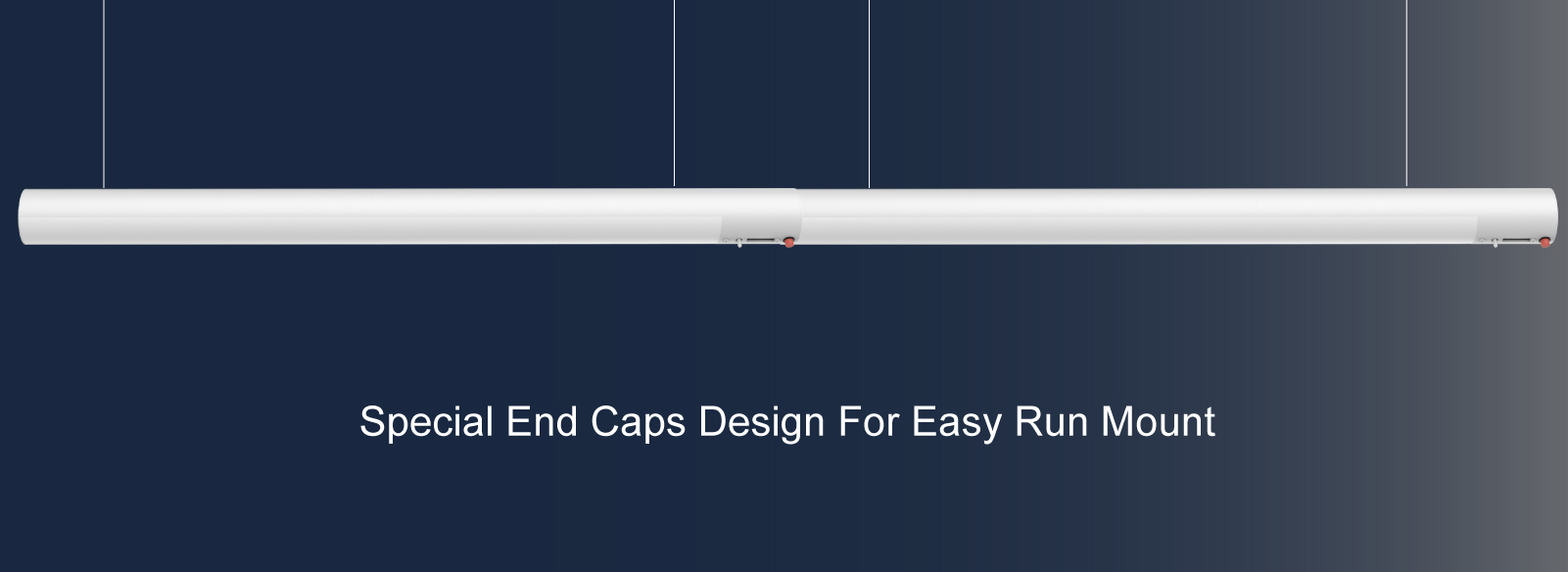

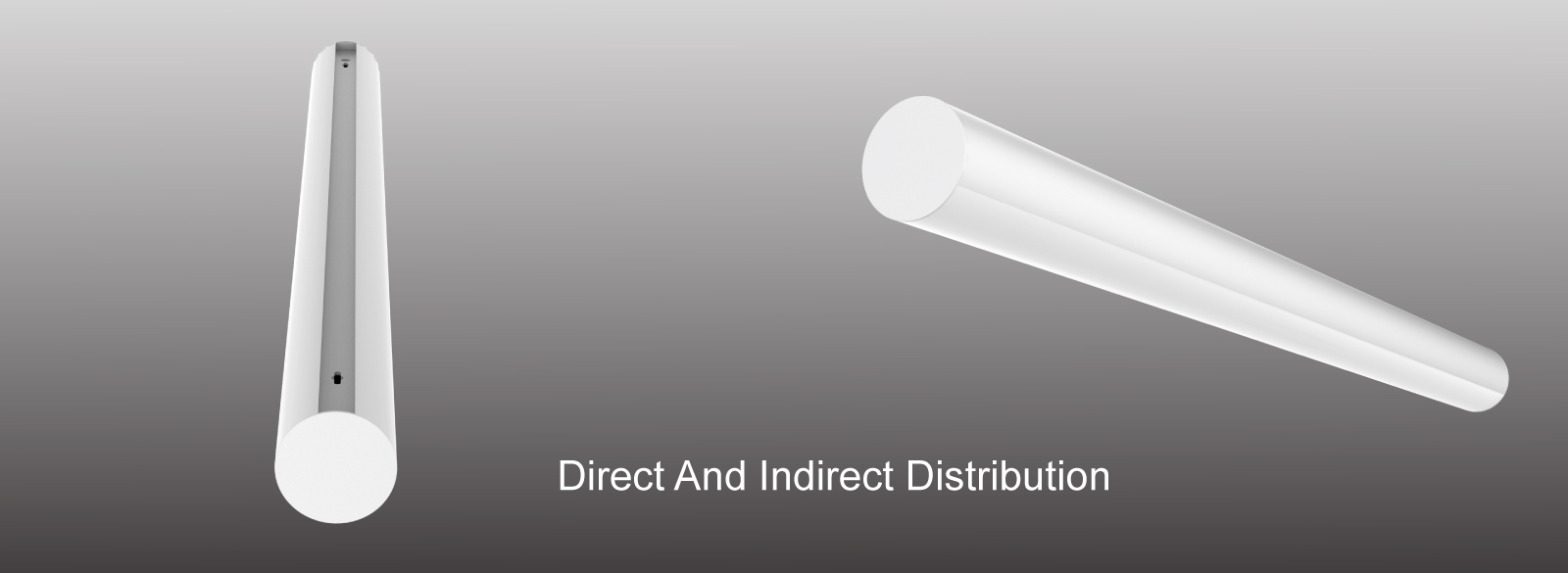

The Britube linear fixture features in streamline tube shape with aluminum base and frosted polycarbonate lens. It is designed to deliver direct and indirect lighting to commercial spaces. 3500K, 4000K and 5000K are in one. Sensor and emergency back-up optional. The Britube linear fixture is available in standard lengths of 4’, 8’ and can be joined together in seamless runs. Highly effective and efficient lighting solutions for offices, retail outlets, storage rooms, conference rooms, hallways and more.
| Spec Sheet | Britube Linear Light Spec Sheet |
|---|---|
| Instruction Manual | Britube Linear Light Manual |
| IES | Britube Linear Light IES |
| Tech Info | Britube Linear Light Tech Info |
| Revit file | Britube Linear Light Revit file |
| Model number | Voltage(V) | Wattage(W) | Replaces/Equiv.(MH) | Controls | Lumens(lm) | CCT(K) | CRI | Distribution | Dimension | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BIT12ID40SW8 | 120-347 | 40 | / | 0-10V Dim | 4400 | 3500K/4000K/5000K | >80 | / | 3.23" X 3.39" X 47.17" | White | 20 | Aluminum | UL | 50000 | 16147 |
| BIT24ID80SW8 | 120-347 | 80 | / | 0-10V Dim | 9200 | 3500K/4000K/5000K | >80 | / | 3.23" X 3.39" X 94.02" | White | 20 | Aluminum | UL | 50000 | 16149 |
