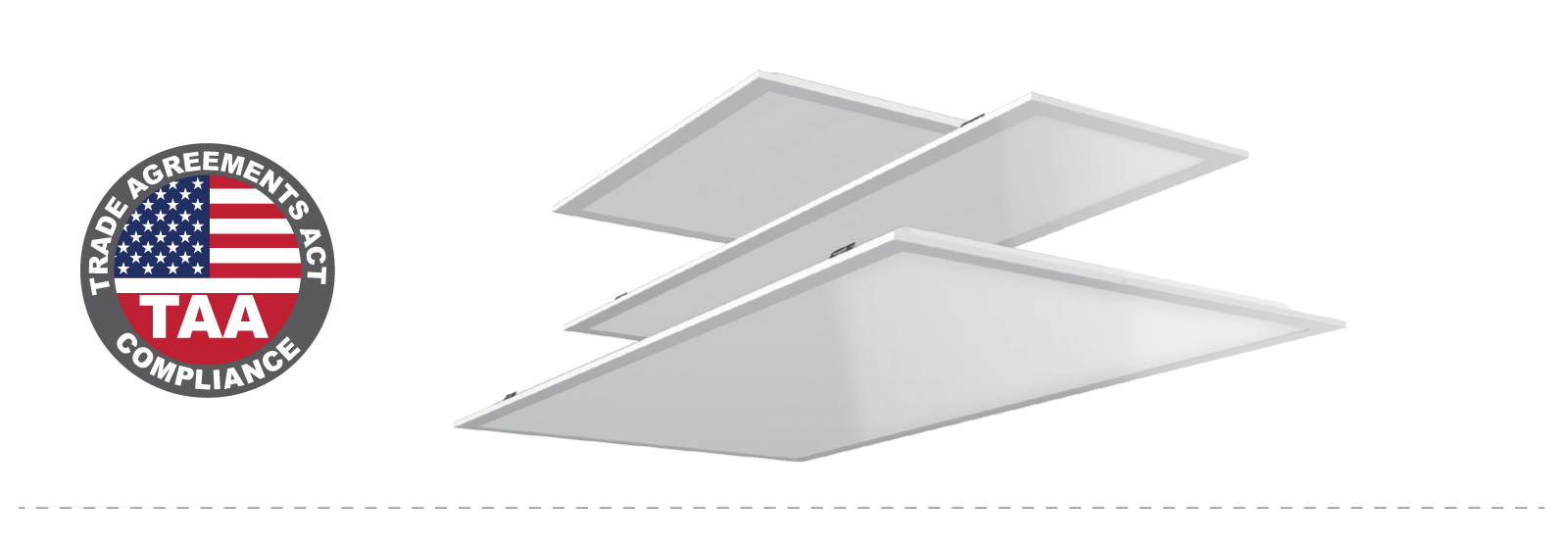

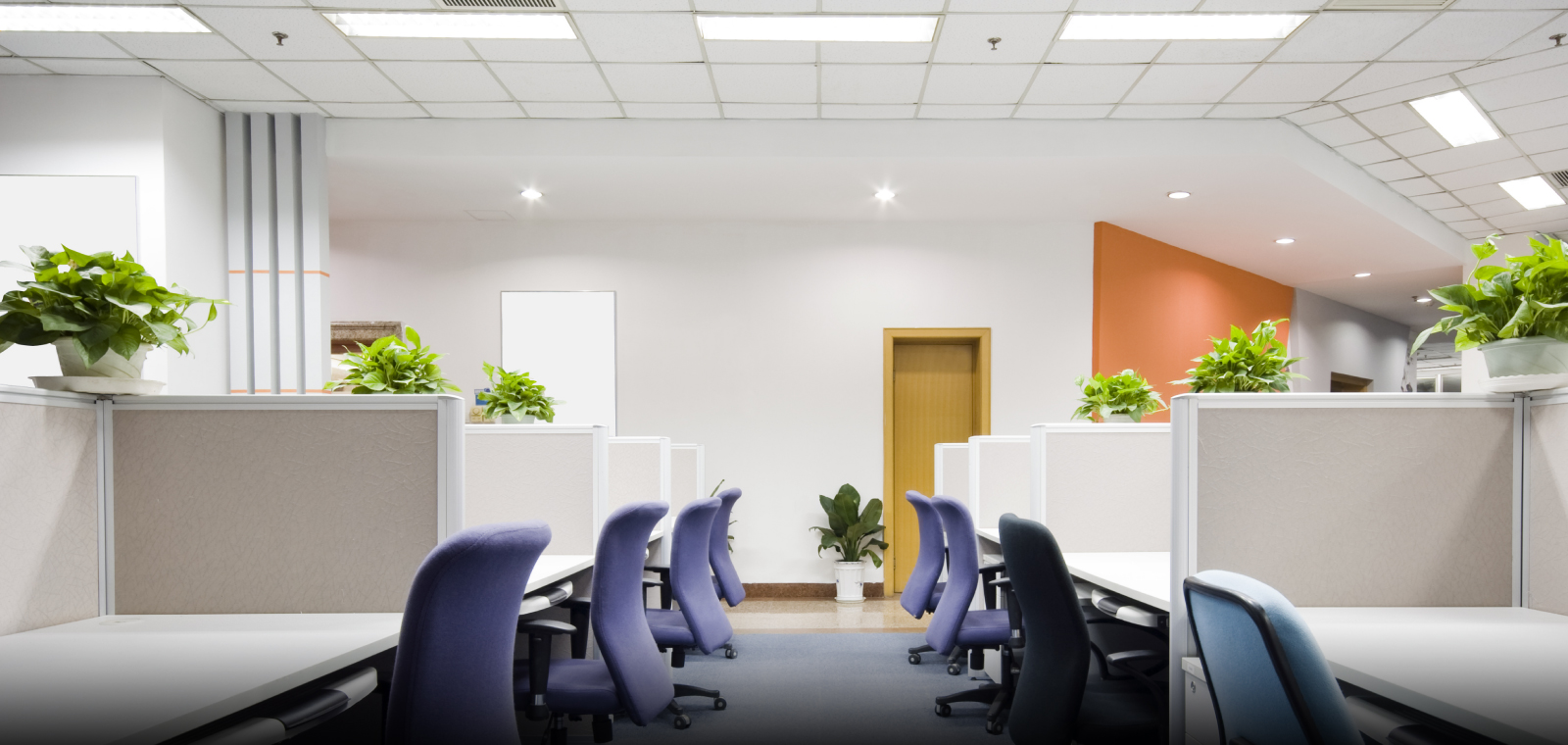

The TAAP series flat panel features back-lit design. Coming in 2x2, 2x4 and 1x4 configurations. Wattage and CCT selectale. Ideal for standard T-bar and narrow grid drop ceiling to replace the fluorescent troffer in offices, supermarkets, schools and other indoor applications
| Spec Sheet | TAAP Series Flat Panel Spec Sheet |
|---|---|
| Tech Info | TAAP Series Flat Panel Tech Info |
| Model number | Voltage(V) | Wattage(W) | Replaces/Equiv.(FL) | Dimming / Control | Lumens(lm) | CCT(K) | CRI | Beam Angle(Degree) | Dimension(L“-W”-H“) | Finish/Color | IP Rating | Material | Compliance | Average life based on 77F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BFLPT-22D-SP1-SW1 | 120-277 | 20W/30W/40W | / | 0-10V Dim | 4400@40W | 3500K/4000K/5000K | 80 | 110 | 23.74"-23.74"-1.65" | White | 20 | Sheet iron | UL | 50000 | 16516 |
| BFLPT-14D-SP1-SW1 | 120-277 | 20W/30W/40W | / | 0-10V Dim | 4400@40W | 3500K/4000K/5000K | 80 | 110 | 47.76"-11.9"-1.65" | White | 20 | Sheet iron | UL | 50000 | 16517 |
| BFLPT-24D-SP2-SW1 | 120-277 | 30W/40W/50W | / | 0-10V Dim | 5500@50W | 3500K/4000K/5000K | 80 | 110 | 47.76"-23.74"-1.65" | White | 20 | Sheet iron | UL | 50000 | 16518 |
