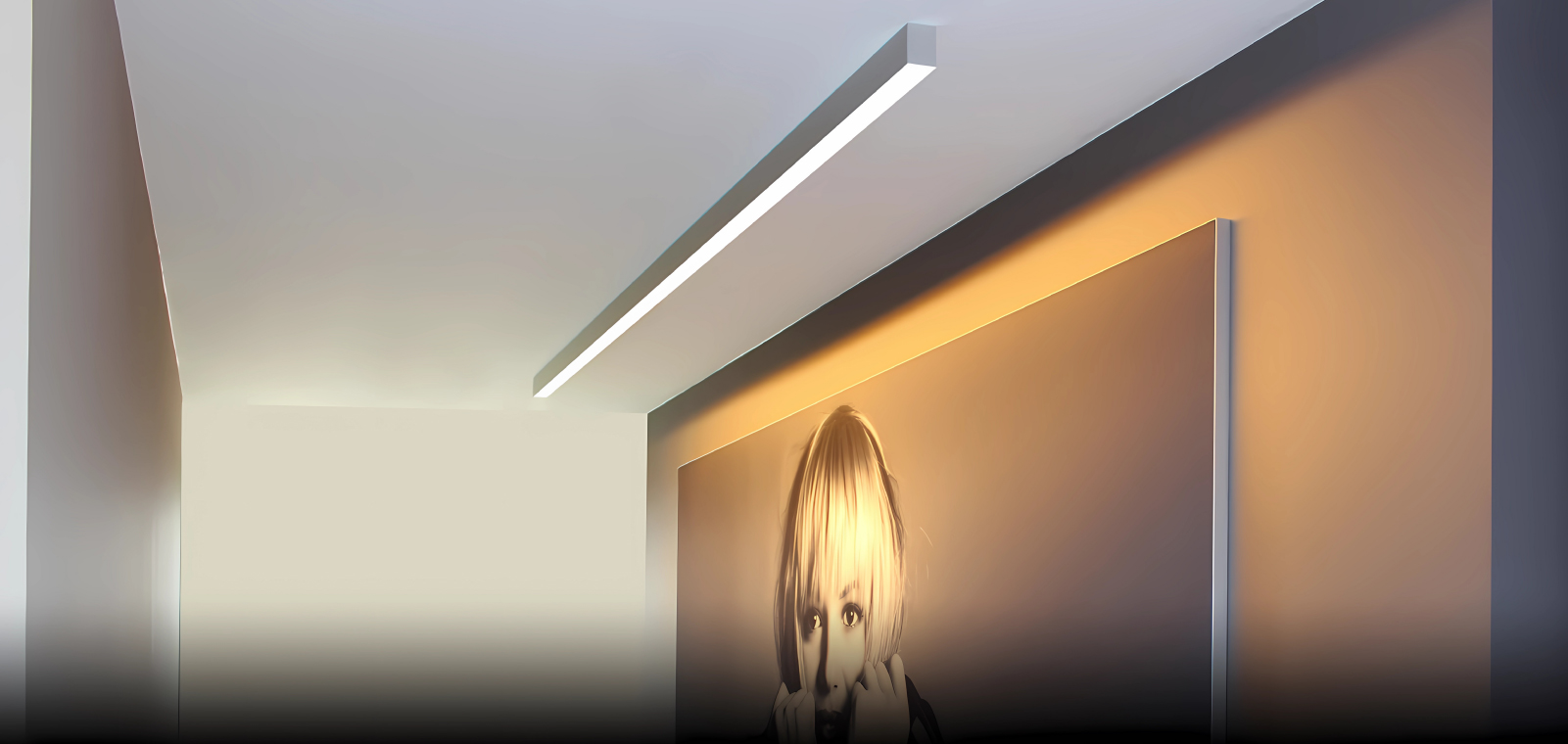

The 2.3" Magic Linear Light is available in recessed mount. It is available in 2.3" width with 2ft, 3ft, 4ft and 8ft lengths options, simply provide linear, powerful lighting to any atmosphere. This linear lighting features a streamlined linear form factor designed for maximum versatility. With their superior flexibility by wattage selectable and CCT adjustable, Magic Linear creates a balance between esthetics, visual comfort and lighting performance, designed to meet the most demanding lighting challenges.
| Spec Sheet | 2.3 Inch MAGIC LED Wall Wash Linear Light (Direct) Spec Sheet |
|---|---|
| EBU Spec Sheet | EMERGENCY LED DRIVER Spec Sheet |
| Instruction Manual | SURFACE (MULTIPLE LUMINAIRES) FOR DRY CEILING INSTALLATION |
| Instruction Manual | SURFACE (SINGLE LUMINAIRE) FOR DRY CEILING INSTALLATION |
| Instruction Manual | Microwave Motion Sensor Kits Wall Mount Manual |
| IES | 2.3 Inch MAGIC LED Linear Light (Direct) IES |
| Tech Info | 2.3 Inch MAGIC LED Linear Light (Direct) Tech Info |
| Revit file | 2.3 Inch MAGIC LED Linear Light Revit file |
| Model number | Voltage(V) | Wattage(W) | Replaces/Equiv.(MH) | Controls | Lumens(lm) | CCT(K) | CRI | Distribution | Dimension(L"-W"-H") | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MAG0623-SW1-PSM-WID-FDL | 120-277 | 10/15/20W | / | Available | 2300 | 3000K/3500K/4000K | 80 | Selectable | 23.7"-2.34"-3.46" | White | 20 | Alumilum | UL | 50000 | 18362 |
| MAG0623-SW1-WM-WID-FDL | 120-277 | 10/15/20W | / | Available | 2300 | 3000K/3500K/4000K | 80 | Selectable | 23.7"-2.34"-3.46" | White | 20 | Alumilum | UL | 50000 | 18366 |
| MAG0623-SW1-RSM-WD-FDL | 120-277 | 10/15/20W | / | Available | 2300 | 3000K/3500K/4000K | 80 | Selectable | 23.7"-2.34"-3.46" | White | 20 | Alumilum | UL | 50000 | 18378 |
| MAG0623-SW1-WM-WD-FDL | 120-277 | 10/15/20W | / | Available | 2300 | 3000K/3500K/4000K | 80 | Selectable | 23.7"-2.34"-3.46" | White | 20 | Alumilum | UL | 50000 | 18382 |
| MAG0923-SW1-PSM-WID-FDL | 120-277 | 15/20/30W | / | Available | 3450 | 3000K/3500K/4000K | 80 | Selectable | 35.71"-2.34"-3.46" | White | 20 | Alumilum | UL | 50000 | 18363 |
| MAG0923-SW1-WM-WID-FDL | 120-277 | 15/20/30W | / | Available | 3450 | 3000K/3500K/4000K | 80 | Selectable | 35.71"-2.34"-3.46" | White | 20 | Alumilum | UL | 50000 | 18367 |
| MAG0923-SW1-RSM-WD-FDL | 120-277 | 15/20/30W | / | Available | 3450 | 3000K/3500K/4000K | 80 | Selectable | 35.71"-2.34"-3.46" | White | 20 | Alumilum | UL | 50000 | 18379 |
| MAG0923-SW1-WM-WD-FDL | 120-277 | 15/20/30W | / | Available | 3450 | 3000K/3500K/4000K | 80 | Selectable | 35.71"-2.34"-3.46" | White | 20 | Alumilum | UL | 50000 | 18383 |
| MAG1223-SW1-PSM-WID-FDL | 120-277 | 20/30/40W | / | Available | 4600 | 3000K/3500K/4000K | 80 | Selectable | 47.72"-2.34"-3.46" | White | 20 | Alumilum | UL | 50000 | 18364 |
| MAG1223-SW1-WM-WID-FDL | 120-277 | 20/30/40W | / | Available | 4600 | 3000K/3500K/4000K | 80 | Selectable | 47.72"-2.34"-3.46" | White | 20 | Alumilum | UL | 50000 | 18368 |
| MAG1223-SW1-RSM-WD-FDL | 120-277 | 20/30/40W | / | Available | 4600 | 3000K/3500K/4000K | 80 | Selectable | 47.72"-2.34"-3.46" | White | 20 | Alumilum | UL | 50000 | 18380 |
| MAG1223-SW1-WM-WD-FDL | 120-277 | 20/30/40W | / | Available | 4600 | 3000K/3500K/4000K | 80 | Selectable | 47.72"-2.34"-3.46" | White | 20 | Alumilum | UL | 50000 | 18384 |
| MAG2423-SW1-PSM-WID-FDL | 120-277 | 40/60/80W | / | Available | 9200 | 3000K/3500K/4000K | 80 | Selectable | 95.24"-2.34"-3.46" | White | 20 | Alumilum | UL | 50000 | 18365 |
| MAG2423-SW1-WM-WID-FDL | 120-277 | 40/60/80W | / | Available | 9200 | 3000K/3500K/4000K | 80 | Selectable | 95.24"-2.34"-3.46" | White | 20 | Alumilum | UL | 50000 | 18369 |
| MAG2423-SW1-RSM-WD-FDL | 120-277 | 40/60/80W | / | Available | 9200 | 3000K/3500K/4000K | 80 | Selectable | 95.24"-2.34"-3.46" | White | 20 | Alumilum | UL | 50000 | 18381 |
| MAG2423-SW1-WM-WD-FDL | 120-277 | 40/60/80W | / | Available | 9200 | 3000K/3500K/4000K | 80 | Selectable | 95.24"-2.34"-3.46" | White | 20 | Alumilum | UL | 50000 | 18385 |
