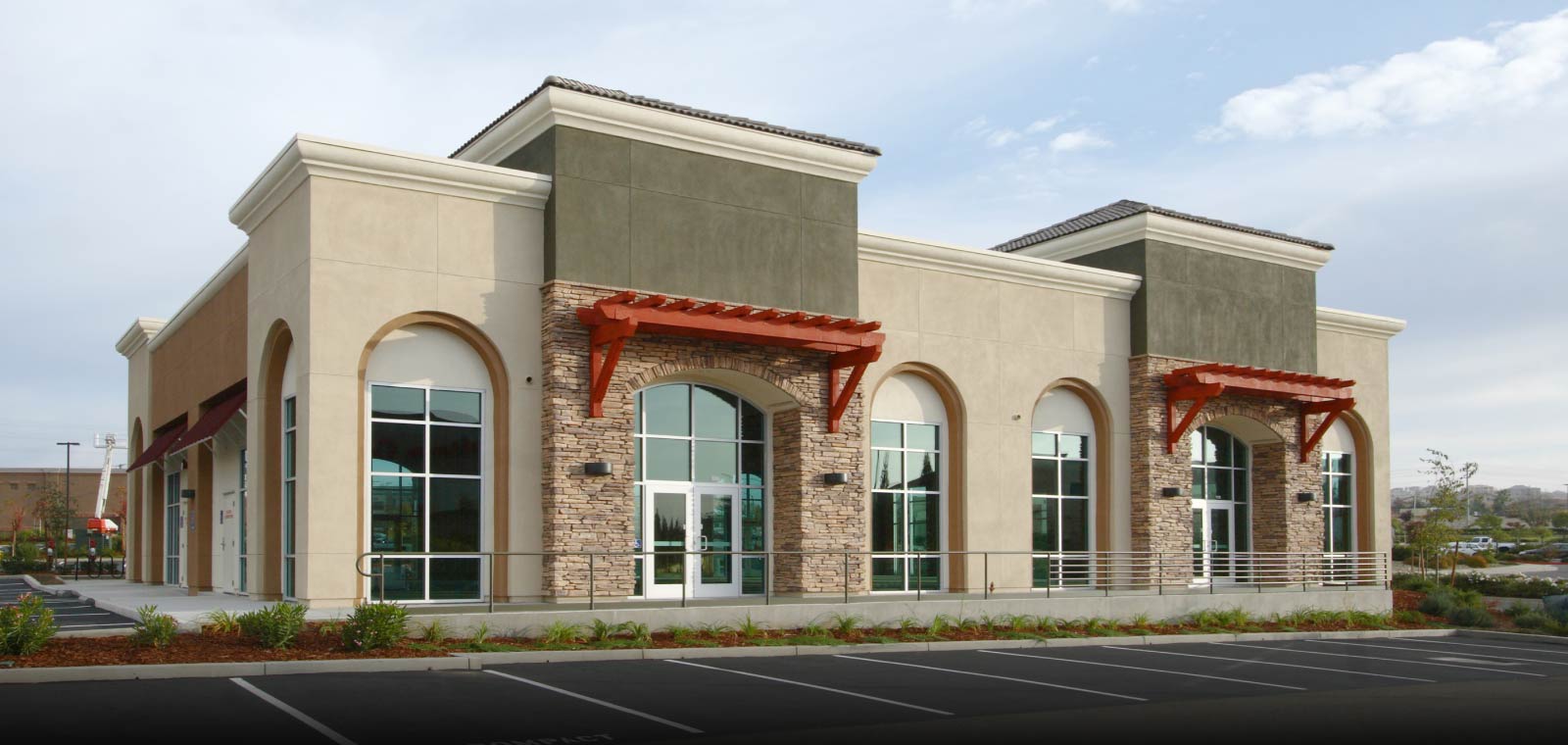

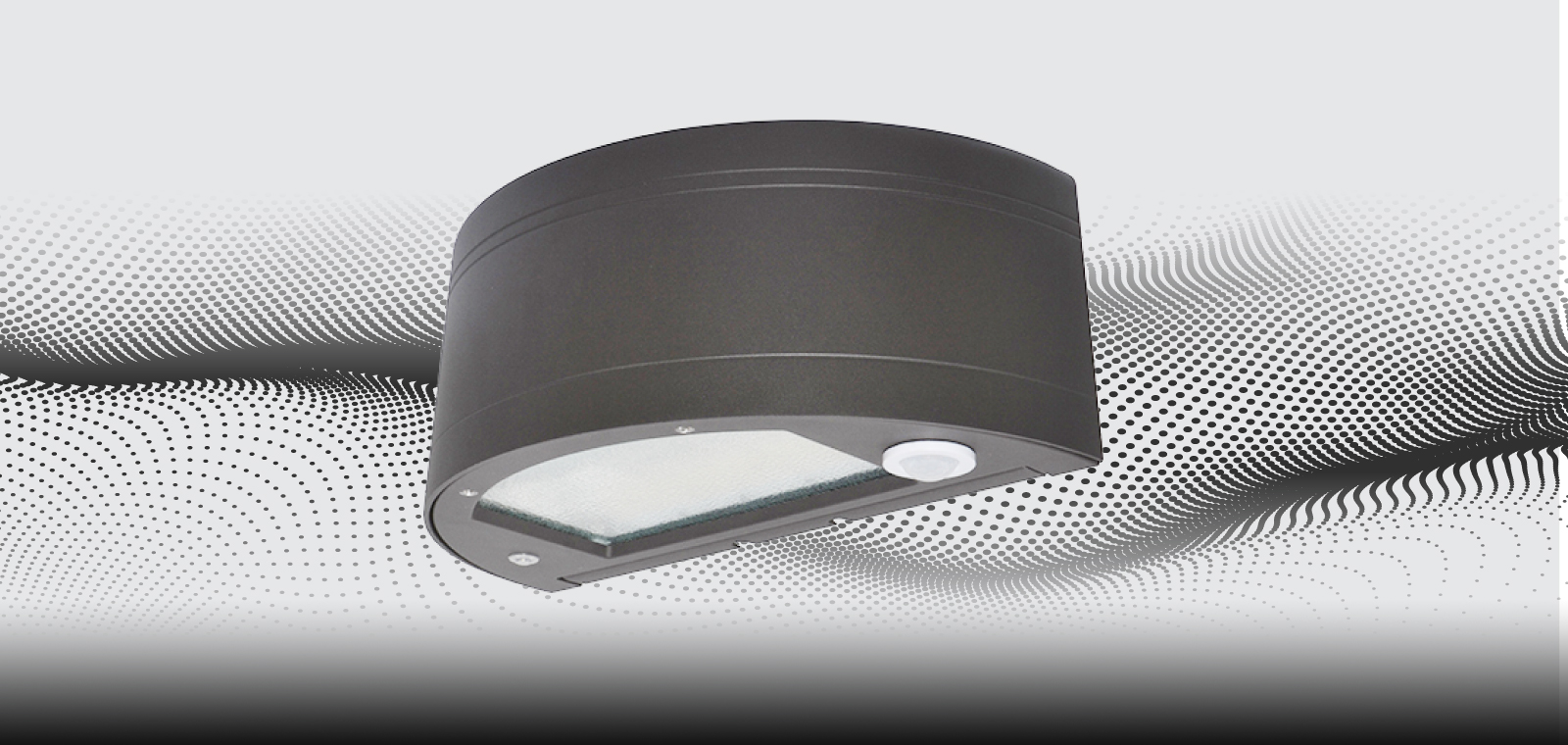

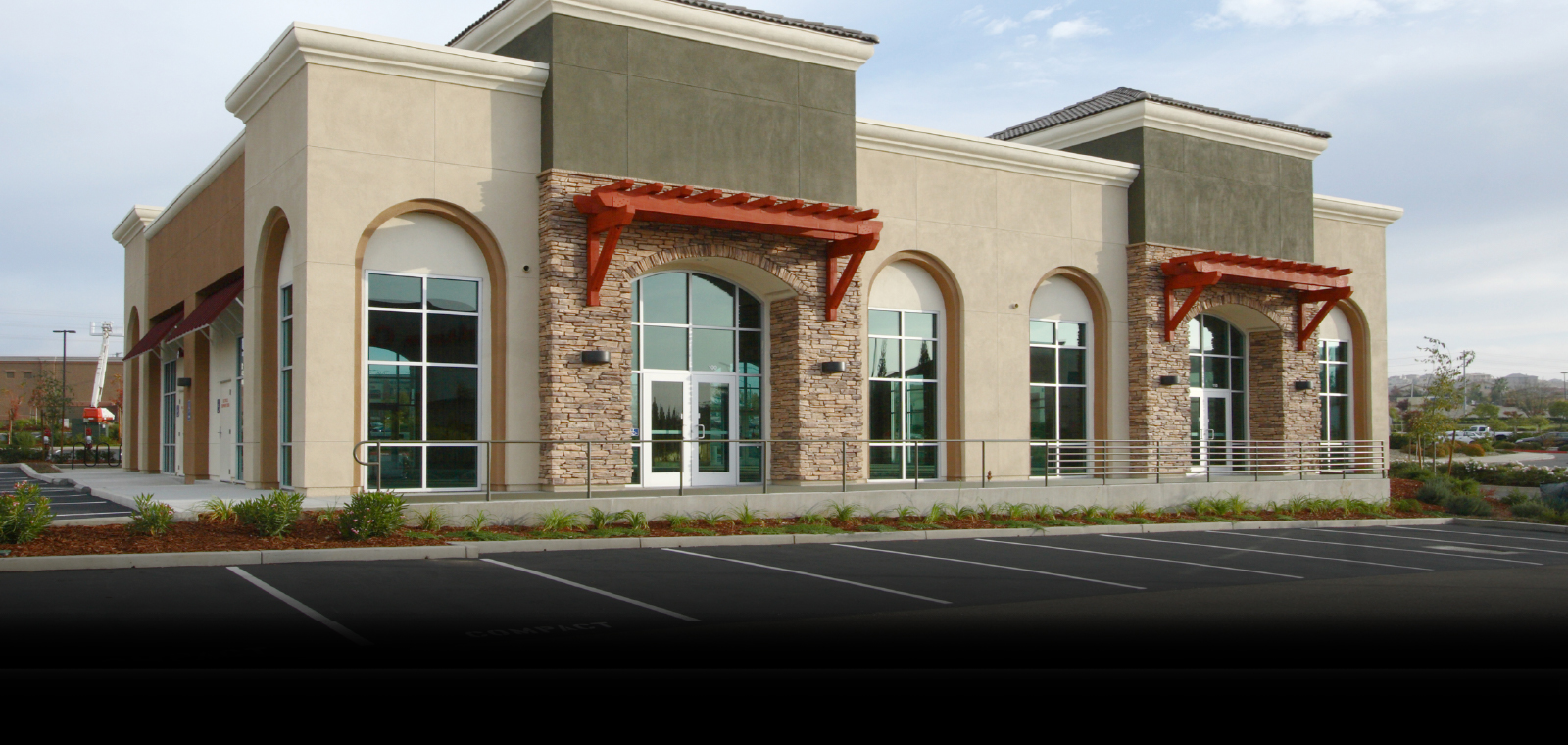

The Briwall led wall pack series is constructed from durable die-cast aluminum. Full cut-off design. Lumen ranges from 1800lm to 8000lm. Long-lasting, low maintenance, energy efficient replacements for Metal Halide and High Pressure Sodium lamp sources. Designed for commercial and industrial wall applications.
| Spec Sheet | Briwall LED Wall Pack Spec Sheet |
|---|---|
| Instruction Manual | Briwall LED Wall Pack Instruction Manual |
| IES | Briwall LED Wall Pack IES |
| Tech Info | Briwall LED Wall Pack Tech Info |
| Model number | Voltage(V) | Wattage (W) | Replaces/Equiv.(MH) | Dimming/Control | Lumens(lm) | CCT(K) | CRI | Distribution | Dimension(L"-W"-H") | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BWP-SP401-FT | 120-277 | 15W/30W/50W/70W selectable | 50W-400W | Available | 8100lm@70W | 4000 | 70 | Forward Throw | 18.1"-9.25"-7.1" | Bronze | 65 | aluminum | UL | 50000 | 16266 |
| BWP-SP501-FT | 120-277 | 15W/30W/50W/70W selectable | 50W-400W | Available | 8100lm@70W | 5000 | 70 | Forward Throw | 18.1"-9.25"-7.1" | Bronze | 65 | aluminum | UL | 50000 | 16267 |
| BWP-SP401-PC-FT | 120-277 | 15W/30W/50W/70W selectable | 50W-400W | photocell | 8100lm@70W | 4000 | 70 | Forward Throw | 18.1"-9.25"-7.1" | Bronze | 65 | aluminum | UL | 50000 | 16268 |
| BWP-SP501-PC-FT | 120-277 | 15W/30W/50W/70W selectable | 50W-400W | photocell | 8100lm@70W | 5000 | 70 | Forward Throw | 18.1"-9.25"-7.1" | Bronze | 65 | aluminum | UL | 50000 | 16269 |
| BWP-SP401-MS-FT | 120-277 | 15W/30W/50W/70W selectable | 50W-400W | sensor | 8100lm@70W | 4000 | 70 | Forward Throw | 18.1"-9.25"-7.1" | Bronze | 65 | aluminum | UL | 50000 | 16270 |
| BWP-SP501-MS-FT | 120-277 | 15W/30W/50W/70W selectable | 50W-400W | sensor | 8100lm@70W | 5000 | 70 | Forward Throw | 18.1"-9.25"-7.1" | Bronze | 65 | aluminum | UL | 50000 | 16271 |
| BWP-SP401-EBU-FT | 120-277 | 15W/30W/50W/70W selectable | 50W-400W | EBU | 8100lm@70W | 4000 | 70 | Forward Throw | 18.1"-9.25"-7.1" | Bronze | 65 | aluminum | UL | 50000 | 16272 |
| BWP-SP501-EBU-FT | 120-277 | 15W/30W/50W/70W selectable | 50W-400W | EBU | 8100lm@70W | 5000 | 70 | Forward Throw | 18.1"-9.25"-7.1" | Bronze | 65 | aluminum | UL | 50000 | 16273 |
