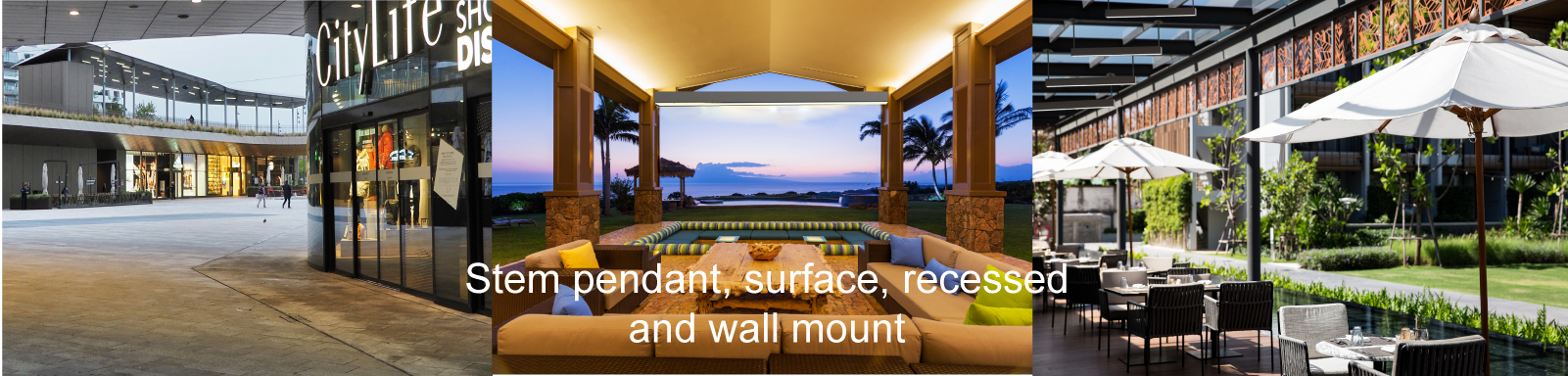

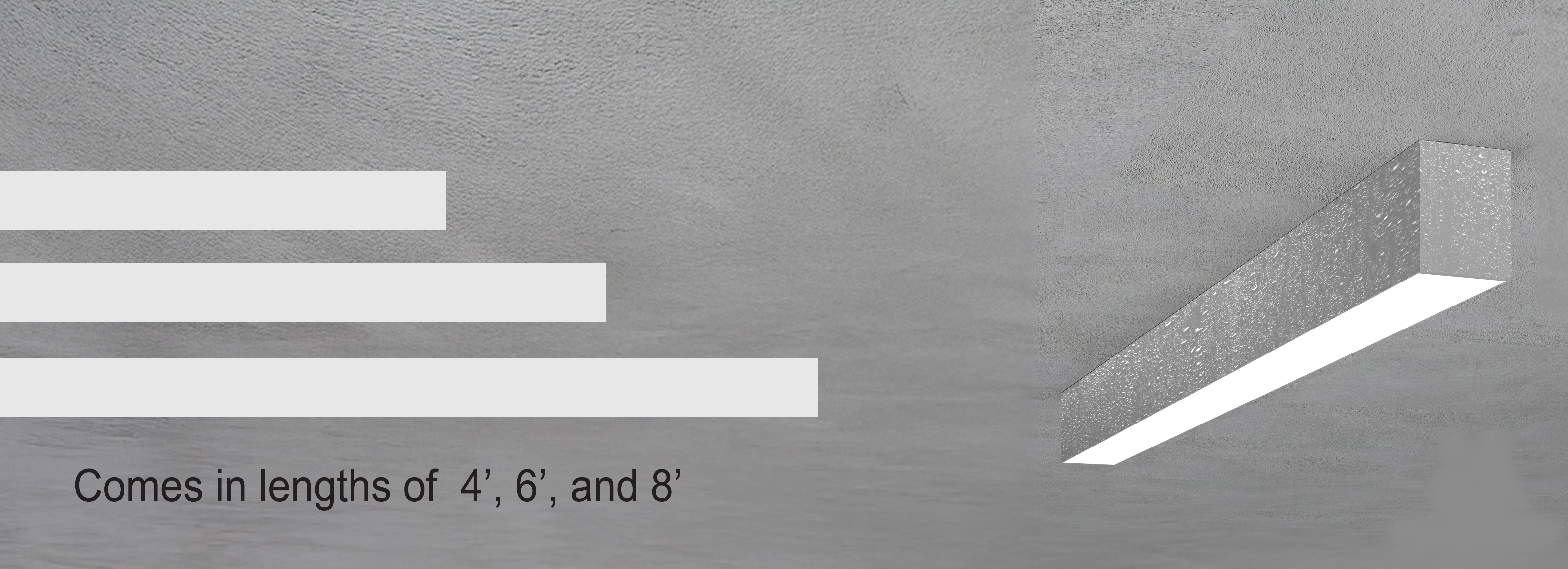

This Wet MAGIC led linear fixture is 1.97" wide. Linear architectural luminaire with a slim and a discrete profile. Available in standard lengths of 4′, 6′ and 8′ that can be joined together in seamless runs of desired length. It is available in suspended, surface, recessed and wall mount configurations. The WET MAGIC is suitable for indoor and outdoor spaces, such as bathrooms, spas, parking garages, soffits and under-canopy installations.
| Spec Sheet | Wet 2 Inch MAGIC LED Linear Light Spec Sheet |
|---|---|
| IES | Wet 2 Inch MAGIC LED Linear Light IES |
| Instruction Manual | Wet 2 Inch MAGIC LED Linear Light Manual |
| Brochure | Wet 2 Inch MAGIC LED Linear Light Brochure |
| Tech Info | Wet 2 Inch MAGIC LED Linear Light Tech Info |
| Revit file | Please email info@abovealllighting.com for Revit file |
| Model number | Voltage(V) | Wattage(W) | Replaces/Equiv.(MH) | Controls | Lumens(lm) | CCT(K) | CRI | Distribution | Dimension(L"-W"-H") | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WMAG1220-3130801-D-FDL-WH | 120-277 | 31W | / | 0-10V | 3000 | 3000 | 80 | / | 48.5"-3.15"-1.97" | White | 65 | Aluminum | ETL | 50000 | 17461 |
| WMAG1220-3135801-D-FDL-WH | 120-277 | 31W | / | 0-10V | 3000 | 3500 | 80 | / | 48.5"-3.15"-1.97" | White | 65 | Aluminum | ETL | 50000 | 17462 |
| WMAG1220-3140801-D-FDL-WH | 120-277 | 31W | / | 0-10V | 3000 | 4000 | 80 | / | 48.5"-3.15"-1.97" | White | 65 | Aluminum | ETL | 50000 | 17463 |
| WMAG2020-4630801-D-FDL-WH | 120-277 | 46W | / | 0-10V | 4300 | 3000 | 80 | / | 72.5"-3.15"-1.97" | White | 65 | Aluminum | ETL | 50000 | 17464 |
| WMAG2020-4635801-D-FDL-WH | 120-277 | 46W | / | 0-10V | 4300 | 3500 | 80 | / | 72.5"-3.15"-1.97" | White | 65 | Aluminum | ETL | 50000 | 17465 |
| WMAG2020-4640801-D-FDL-WH | 120-277 | 46W | / | 0-10V | 4300 | 4000 | 80 | / | 72.5"-3.15"-1.97" | White | 65 | Aluminum | ETL | 50000 | 17466 |
| WMAG2420-6130801-D-FDL-WH | 120-277 | 61W | / | 0-10V | 5700 | 3000 | 80 | / | 96.4"-3.15"-1.97" | White | 65 | Aluminum | ETL | 50000 | 17467 |
| WMAG2420-6135801-D-FDL-WH | 120-277 | 61W | / | 0-10V | 5700 | 3500 | 80 | / | 96.4"-3.15"-1.97" | White | 65 | Aluminum | ETL | 50000 | 17468 |
| WMAG2420-6140801-D-FDL-WH | 120-277 | 61W | / | 0-10V | 5700 | 4000 | 80 | / | 96.4"-3.15"-1.97" | White | 65 | Aluminum | ETL | 50000 | 17469 |
