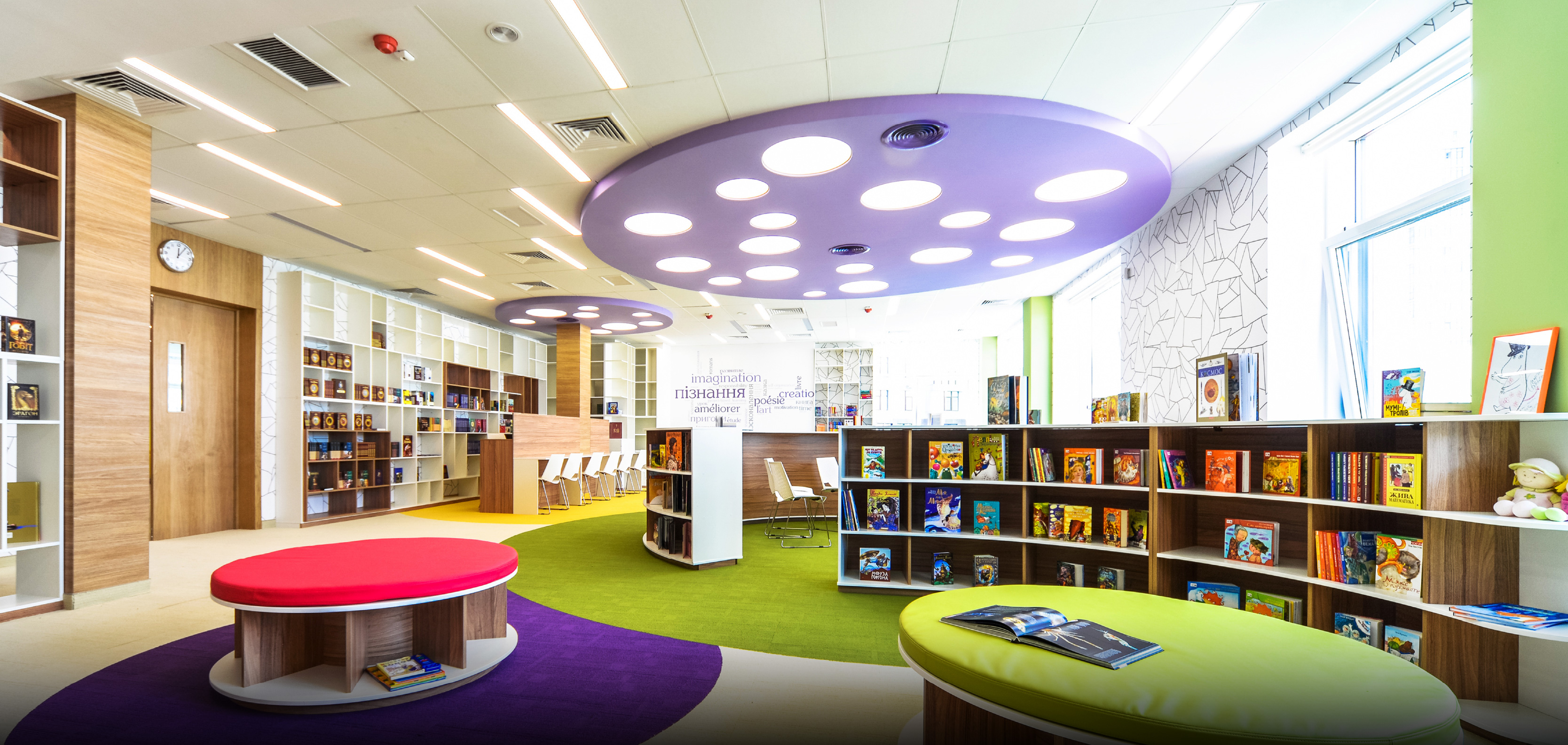

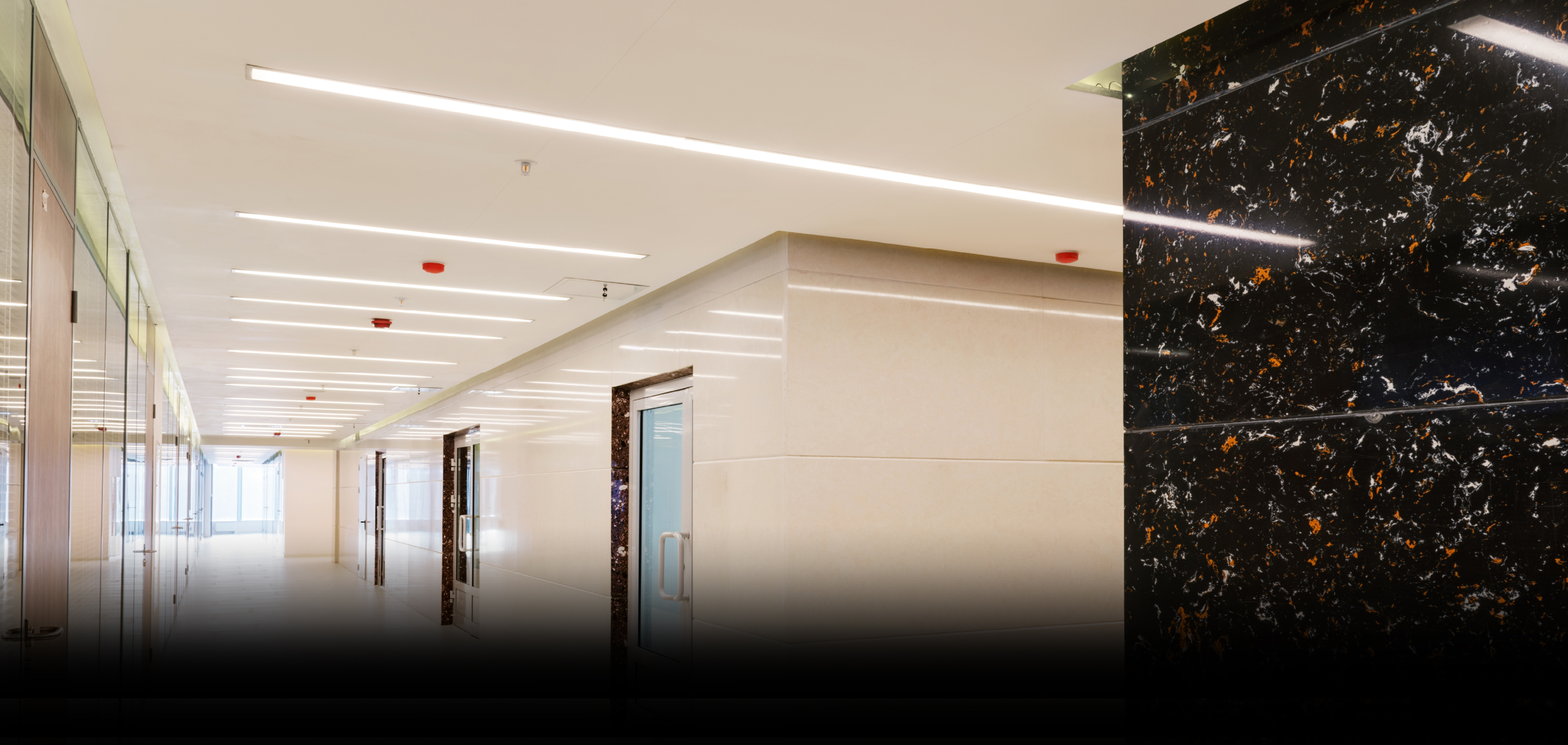

This MAGIC led linear fixture is a 3.8" wide linear architectural luminaire with a slim and discreet profile. The MAGIC is available in standard lengths of 2′, 3′, 4′, and 8′, and can be joined together in seamless runs of desired length. Various optical design delivers uniform, continuous lines of light. Different pattern joiners available for unlimited lighting pattern design.
| Spec Sheet | 3.8 Inch Magic led Linear Light-Recessed Mount Spec Sheet |
|---|---|
| IES | 3.8 Inch Magic led Linear Light-Recessed Mount IES |
| Instruction Manual | SURFACE (MULTIPLE LUMINAIRES) FOR DRY CEILING INSTALLATION |
| Instruction Manual | SURFACE (SINGLE LUMINAIRE) FOR DRY CEILING INSTALLATION |
| Instruction Manual | Microwave Motion Sensor Kits Ceiling Mount Manual |
| Instruction Manual | 2.3/ 3.8 Inch Magic LED Linear Recessed Mounted DRY CEILING - Trimless Drywall Manual |
| Instruction Manual | 2.3/ 3.8 Inch Magic LED Linear Recessed Mounted Drywall by Brackets - Trim Manual |
| Instruction Manual | 2.3/ 3.8 Inch Magic LED Linear Recessed Mounted Pendant Stem - Trim Manual |
| Instruction Manual | 2.3/ 3.8 Inch Magic LED Linear Recessed Mounted T-grid Ceiling - Drop Ceiling Manual |
| Tech Info | 3.8 Inch Magic led Linear Light-Recessed Mount Tech Info |
| Model number | Voltage(V) | Wattage(W) | Replaces/Equiv.(MH) | Controls | Lumens(lm) | CCT(K) | CRI | Distribution | Dimension(L"-W"-H") | Finish/Color | IP Rating | Material | Compliance | Average life based on 104F(HRS) | Order number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MAG0638-SW1-10D-RM-D-FDL | 120-277 | 10W/15W/20W | / | 0-10V Dim to 10% | 2000 | 3000/3500/4000 | 80 | / | 23.7"-3.74"-3.74" | White | 20 | Aluminum | UL | 50000 | 17405 |
| MAG0638-SW1-10D-RM-D-RGL | 120-277 | 10W/15W/20W | / | 0-10V Dim to 10% | 2000 | 3000/3500/4000 | 80 | / | 23.7"-3.74"-3.74" | White | 20 | Aluminum | UL | 50000 | 17409 |
| MAG0638-SW1-01D-RM-D-FDL | 120-277 | 10W/15W/20W | / | 0-10V Dim to 1% | 2000 | 3000/3500/4000 | 80 | / | 23.7"-3.74"-3.74" | White | 20 | Aluminum | UL | 50000 | 17429 |
| MAG0638-SW1-01D-RM-D-RGL | 120-277 | 10W/15W/20W | / | 0-10V Dim to 1% | 2000 | 3000/3500/4000 | 80 | / | 23.7"-3.74"-3.74" | White | 20 | Aluminum | UL | 50000 | 17433 |
| MAG0938-SW1-10D-RM-D-FDL | 120-277 | 15W/20W/30W | / | 0-10V Dim to 10% | 3000 | 3000/3500/4000 | 80 | / | 35.71"-3.74"-3.74" | White | 20 | Aluminum | UL | 50000 | 17406 |
| MAG0938-SW1-10D-RM-D-RGL | 120-277 | 15W/20W/30W | / | 0-10V Dim to 10% | 3000 | 3000/3500/4000 | 80 | / | 35.71"-3.74"-3.74" | White | 20 | Aluminum | UL | 50000 | 17410 |
| MAG0938-SW1-01D-RM-D-FDL | 120-277 | 15W/20W/30W | / | 0-10V Dim to 1% | 3000 | 3000/3500/4000 | 80 | / | 35.71"-3.74"-3.74" | White | 20 | Aluminum | UL | 50000 | 17430 |
| MAG0938-SW1-01D-RM-D-RGL | 120-277 | 15W/20W/30W | / | 0-10V Dim to 1% | 3000 | 3000/3500/4000 | 80 | / | 35.71"-3.74"-3.74" | White | 20 | Aluminum | UL | 50000 | 17434 |
| MAG1238-SW1-10D-RM-D-FDL | 120-277 | 20W/30W/40W | / | 0-10V Dim to 10% | 4000 | 3000/3500/4000 | 80 | / | 47.72"-3.74"-3.74" | White | 20 | Aluminum | UL | 50000 | 17407 |
| MAG1238-SW1-10D-RM-D-RGL | 120-277 | 20W/30W/40W | / | 0-10V Dim to 10% | 4000 | 3000/3500/4000 | 80 | / | 47.72"-3.74"-3.74" | White | 20 | Aluminum | UL | 50000 | 17411 |
| MAG1238-SW1-01D-RM-D-FDL | 120-277 | 20W/30W/40W | / | 0-10V Dim to 1% | 4000 | 3000/3500/4000 | 80 | / | 47.72"-3.74"-3.74" | White | 20 | Aluminum | UL | 50000 | 17431 |
| MAG1238-SW1-01D-RM-D-RGL | 120-277 | 20W/30W/40W | / | 0-10V Dim to 1% | 4000 | 3000/3500/4000 | 80 | / | 47.72"-3.74"-3.74" | White | 20 | Aluminum | UL | 50000 | 17435 |
| MAG2438-SW1-10D-RM-D-FDL | 120-277 | 40W/60W/80W | / | 0-10V Dim to 10% | 8000 | 3000/3500/4000 | 80 | / | 95.24"-3.74"-3.74" | White | 20 | Aluminum | UL | 50000 | 17408 |
| MAG2438-SW1-10D-RM-D-RGL | 120-277 | 40W/60W/80W | / | 0-10V Dim to 10% | 8000 | 3000/3500/4000 | 80 | / | 95.24"-3.74"-3.74" | White | 20 | Aluminum | UL | 50000 | 17412 |
| MAG2438-SW1-01D-RM-D-FDL | 120-277 | 40W/60W/80W | / | 0-10V Dim to 1% | 8000 | 3000/3500/4000 | 80 | / | 95.24"-3.74"-3.74" | White | 20 | Aluminum | UL | 50000 | 17432 |
| MAG2438-SW1-01D-RM-D-RGL | 120-277 | 40W/60W/80W | / | 0-10V Dim to 1% | 8000 | 3000/3500/4000 | 80 | / | 95.24"-3.74"-3.74" | White | 20 | Aluminum | UL | 50000 | 17436 |
